Name: Chief LCM1U FUSION Ceiling Mount for Large Displays 32"-65", 200x100 mm
Brand: Chief
SKU: LCM1U-CHIEF
Availability: InStock

Chief LCM1U FUSION Ceiling Mount for Large Displays 32"-65", 200x100 mm

Description

Note: A compatible ceiling plate and extension column are required and sold separately.

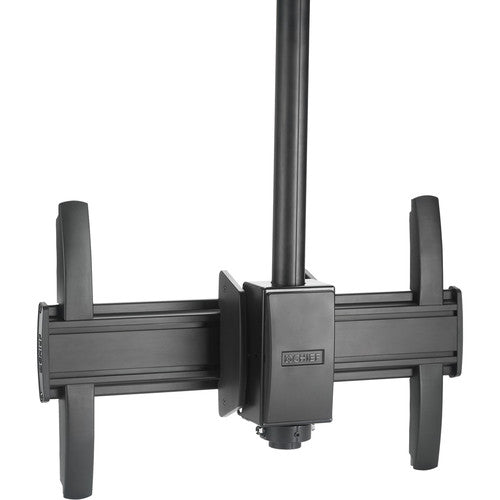

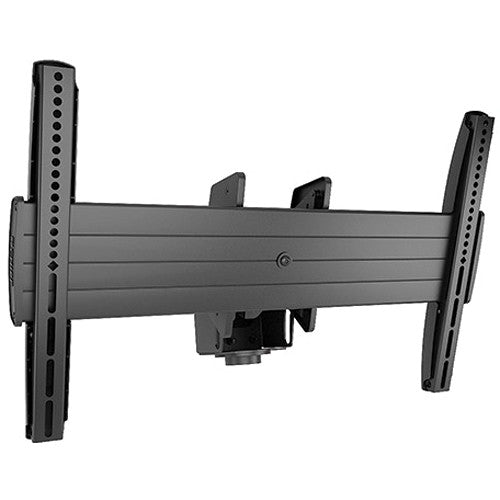

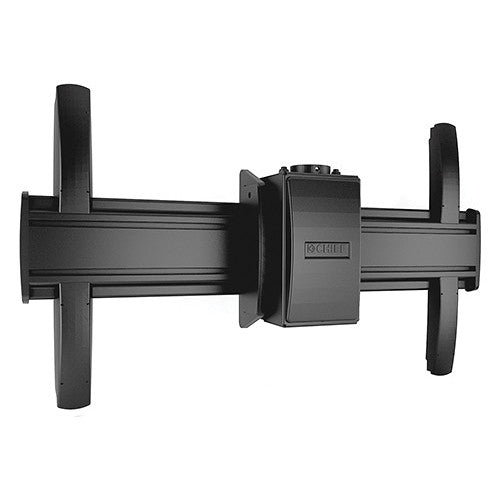

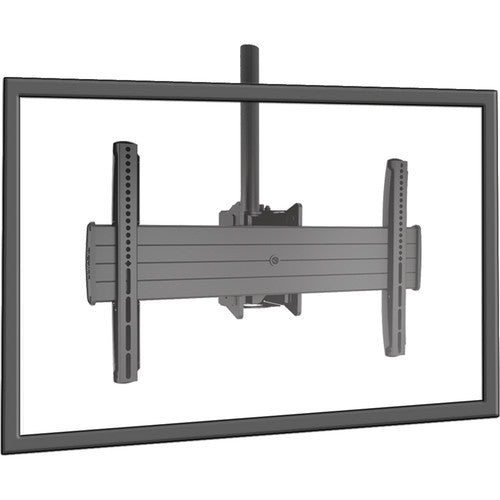

The black Chief LCM1U FUSION Large Flat Panel Ceiling Mount can hold a display weighing up to 125 lb with a mounting pattern between 200 x 100 and 616 x 400mm. It is suitable for digital signage installations and is compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems.

Key Features

Repeatability: Continuous tilt ranges with four set locking points to eliminate guesswork when adjusting multiple screens
Accessibility: On/off connection designed for ease of installation and service
Centris Fingertip Tilt: Adjust display using Centris fingertip tilt technology
Simple and Secure: Tool-free screen engagement with optional padlock security (padlock to be purchased separately)
Flexibility: Mount swivels to your preferred viewing angle
Select Compatibility: Compatible with traditional 1.5" NPT- and CPA-pinned ceiling plates and column systems

Specifications

Mounting Pattern Compatibility	200 x 100 to 616 x 400 mm
Load Capacity	125 lb (56.7 kg)

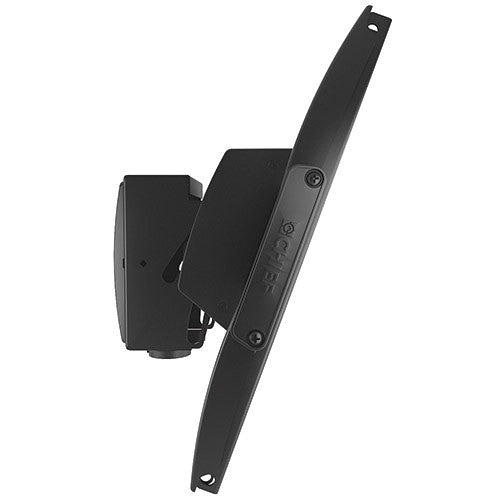

Adjustments	Tilt: -20 to 5° Roll: ±3°
Orientation	Landscape
Certifications	UL listed
Dimensions	26.8 x 16 x 6.4" (681 x 404 x 162 mm)
Weight	Not specified by manufacturer
