Crimson CMW3KIT-8U Multi-Display Kit, Max VESA 802x416mm, 3 Side-by-Side Configuration
Crimson CMW3KIT-8U Multi-Display Kit, Max VESA 802x416mm, 3 Side-by-Side Configuration

Crimson CMW3KIT-8U Multi-Display Kit, Max VESA 802x416mm, 3 Side-by-Side Configuration

CMW3KIT-8U-CRIMSON

Description

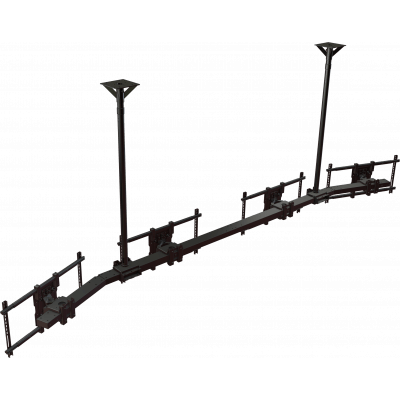

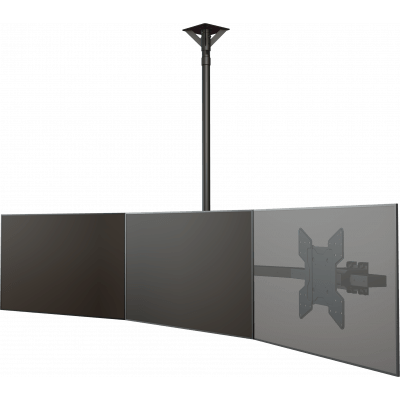

Conveniently kitted ceiling mounted multi-display mount, supporting 3 either or 4 side-by-side displays up to 50″ in landscape orientation. Universal mounting brackets fit a wide range of displays. Ideal for menu boards and similar applications, this mount angles both outer displays in either a convex or concave configuration up to +20°/-20°.

The CMW multi-display mount systems feature independent vertical and roll adjustments, lateral shift and easy tilt adjustment, which simplifies the installation process and reduces installation time. Includes all of the necessary components and hardware needed to complete the installation.


Specifications

MODEL NUMBER CMW3KIT-8U
TV size range 32” – 50″
Weight capacity 340lb (154kg) total (200lbs center screen, 70lbs per each outer screen)
Max mounting pattern Universal 802x416mm
Display configuration Convex or concave
Orientation Landscape
TVs per configuration 3 side-by-side
