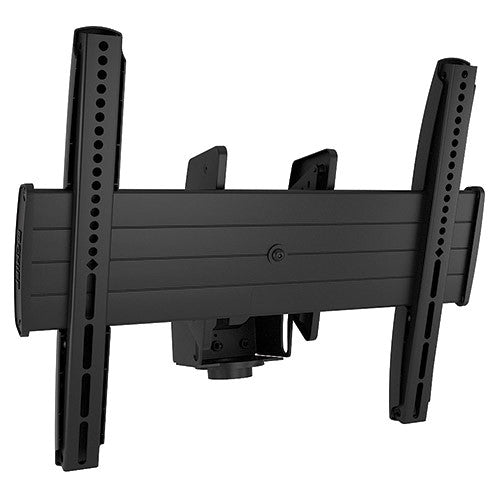

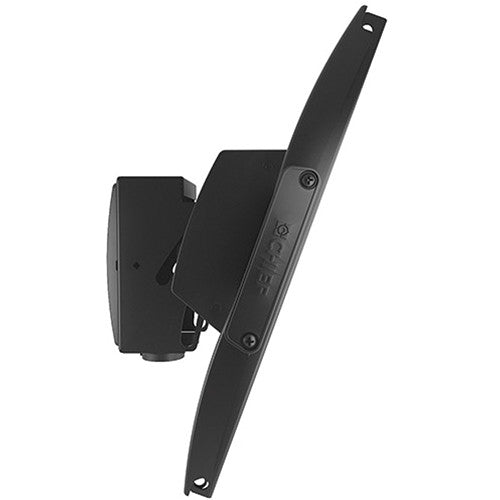

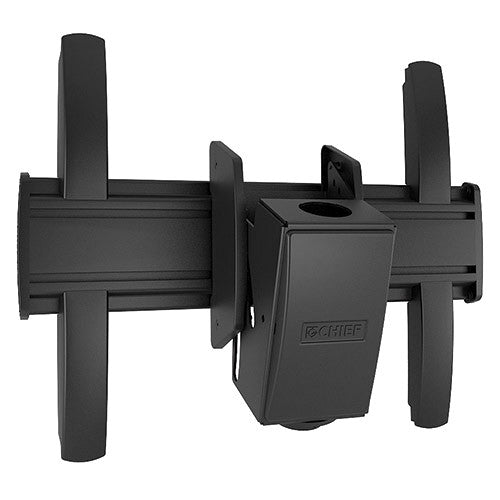

Chief MCM1U Fusion Medium Flat Panel Ceiling Mount
Chief MCM1U Fusion Medium Flat Panel Ceiling Mount
Chief MCM1U Fusion Medium Flat Panel Ceiling Mount

Chief MCM1U Fusion Medium Flat Panel Ceiling Mount

MCM1U-CHIEF

Description

Mount your display to the ceiling with the black Chief MCM1U FUSION Medium Flat Panel Ceiling Mount. It will attach to a traditional 1.5" NPT and select CPA pinned ceiling plate and column systems and supports displays weighing up to 125 lb, with 200 x 100 to 460 x 400mm mounting patterns. It provides -20 to 5° of tilt and ±3° of roll adjustment.

Key Features

  • For Displays up to 125 lb
  • 200 x 100 to 460 x 400mm Mount Patterns
  • Provides -20 to 5° of Tilt
  • Provides ±3° of Roll

Specifications

Compatible With Traditional 1.5" (3.8 cm) NPT and select CPA pinned ceiling plates and column systems
Load Capacity 125 lb (56.69 kg)
Mounting Pattern Compatibility 200 x 100 mm to 460 x 400 mm
Adjustments Tilt: -20 to 5°
Roll, ±3°
Orientation Landscape and portrait
Dimensions 20.82 x 16 x 6.37" (528 x 404 x 162 mm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 17.4 lb
Box Dimensions (LxWxH) 24 x 14 x 7"
