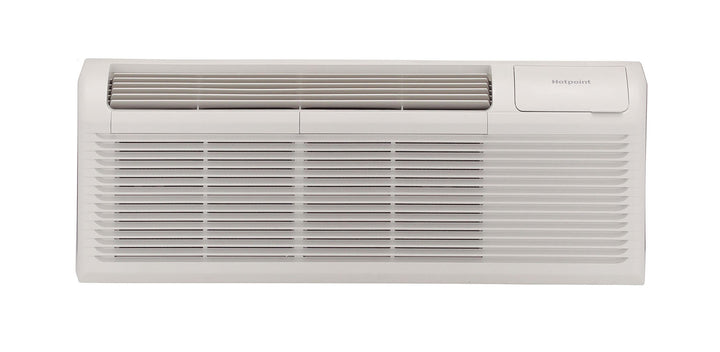

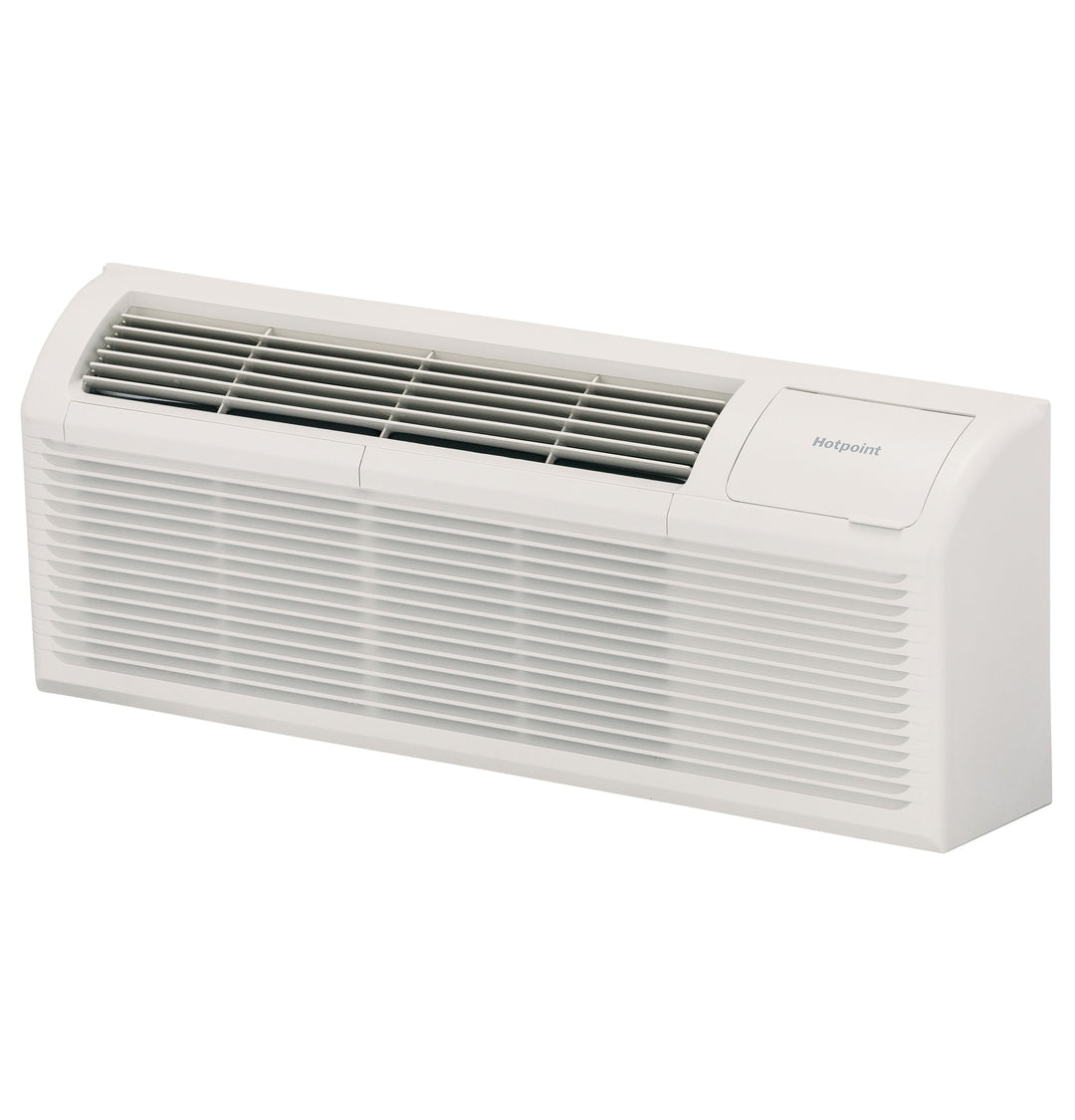

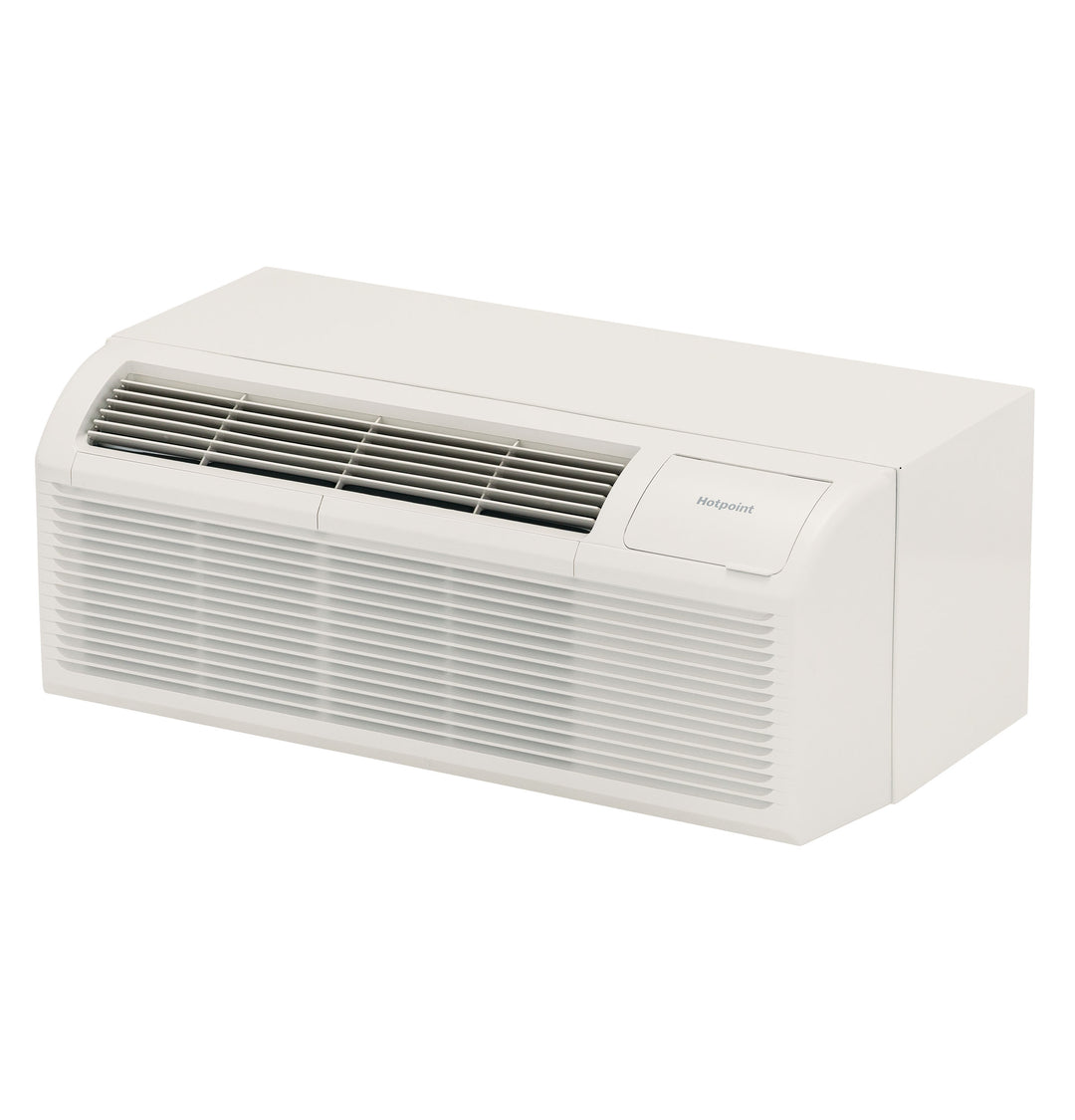

GE AH11E07D3B Electric Heat PTAC 7200 BTU 230/208v 3.5kW 11.9 EER with 5-Year Warranty
AH11E07D3B-GE
Description
Easily select one of four temperature ranges for peak efficiency and total customer comfort. Automatic freeze and indoor frost control keep units operating in peak condition. Remote thermostat compatibility. Cooling BTU 7200/7000 Heating BTU 10900/8900.
16 H x 42 W x 21 D
GE Hotpoint Overview
- Backed by an industry leaderWith a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
- 4-temperature limiting optionsEasily select one of four temperature ranges for peak efficiency and total customer comfort

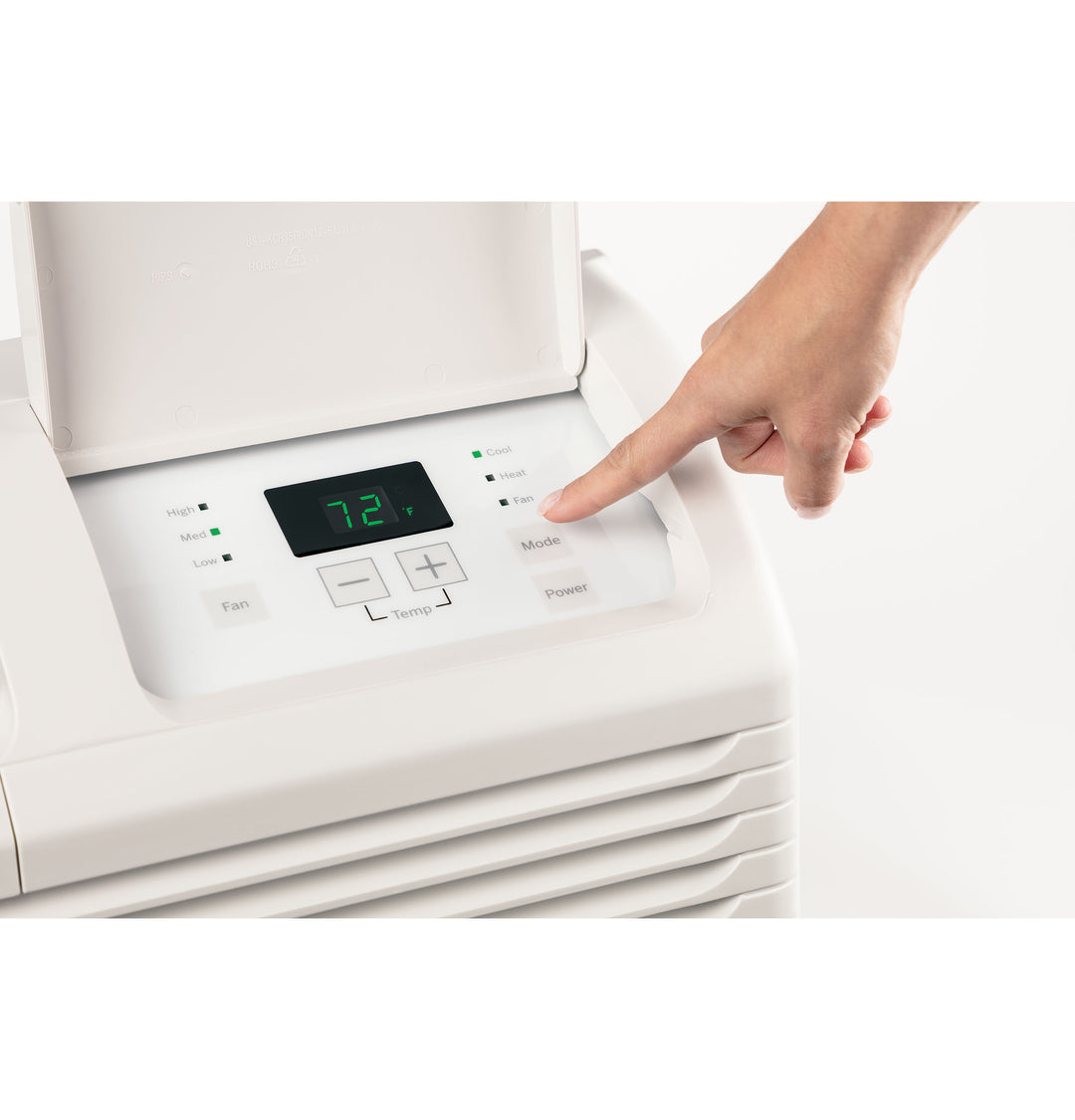

- Intuitive displayAllow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- Power cord (LCDI) includedHotpoint PTACs come with everything needed for a quick and easy installation
- Automatic emergency heatKeep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
- Freeze and frost protectionAutomatic freeze and indoor frost control keep units operating in peak condition
- Auto power recoveryIn case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
- Self diagnosticsQuickly and easily identify service needs with a nine-point diagnostic code system
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warrantyEnjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
- Remote thermostat compatibility
- Works with central desk control systems
- Tangential fan for air flow and smooth sound
Specifications
Control Type | Electronic |
Product Type | Packaged Terminal Air Conditioners (PTAC) |
Refrigerant Type | R410A |
Temperature Range | 62 - 86 F |
Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
Unit Features | Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility |
Auto Power Recovery | Yes |

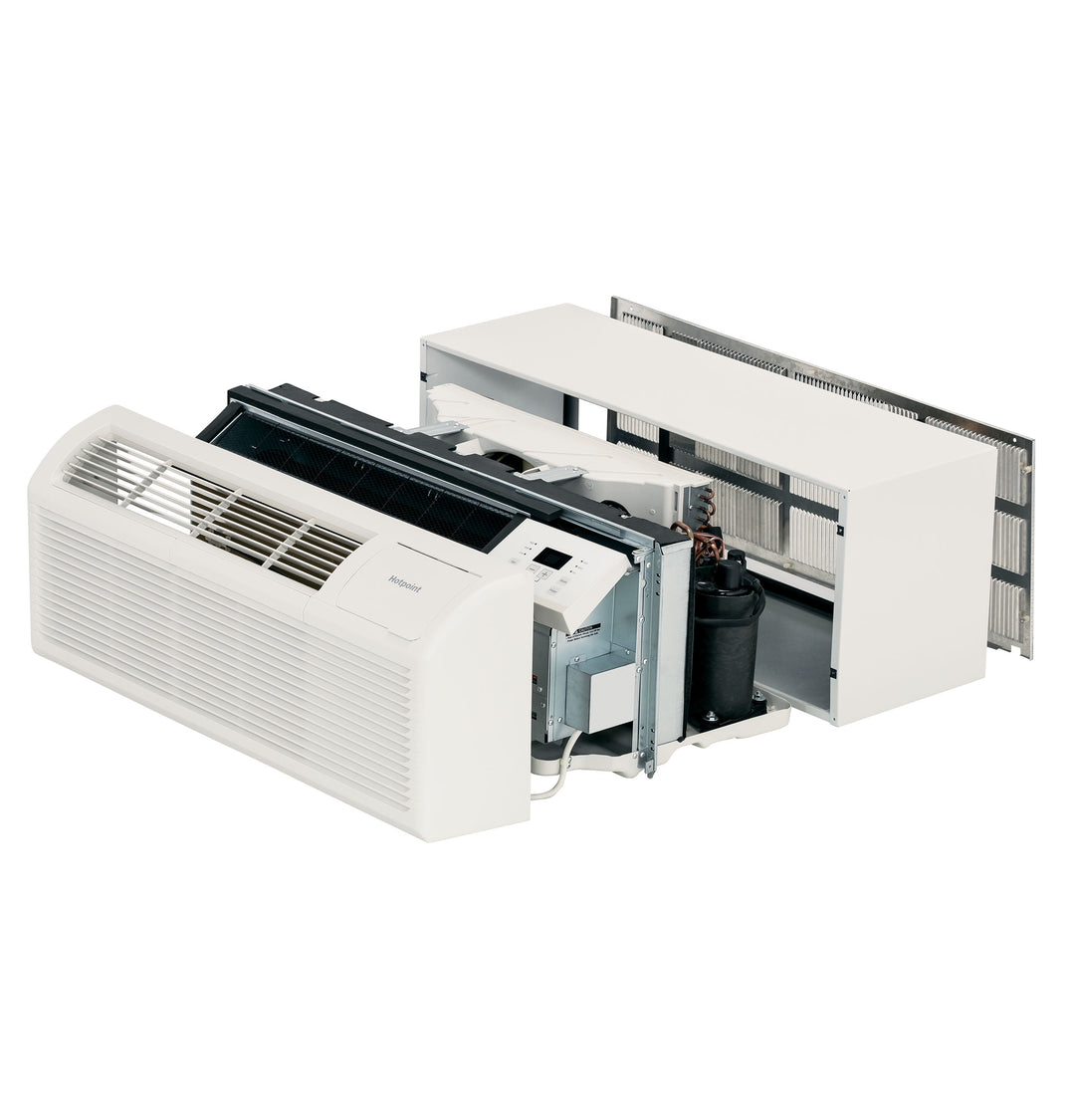

Chassis Type | Slide-In |
Heat - Cool | Yes |
Manual Vent Control | Hidden |
Outdoor Vent / Exhaust | Yes |
Rotary Compressor | Yes |

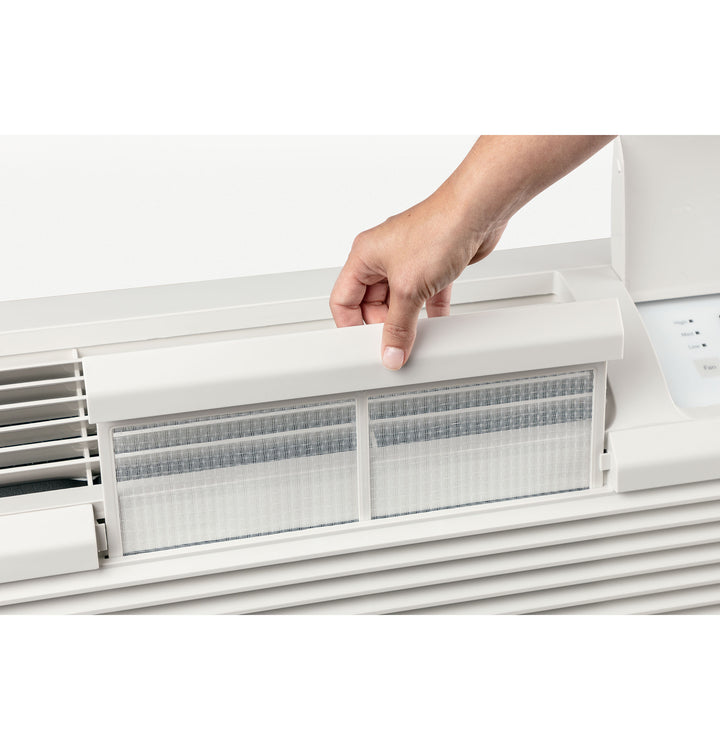

Venting Features | Concealed Manual Vent Control¶Vent Air Filter |
"SmartFan" Fan Cycle | Yes |
Discharge Grille | 2-position |
Fan Motor | 2 |
Heating System | Electric Resistance |
CAPACITY
CFM Indoor Fan High | 334 |
Cooling EER (BTUH / Watt) | 11.9 |
CFM Indoor Fan Low | 236 |
CFM Indoor Fan Medium | 280 |
Cooling BTUH (MAX) | 7200.0 Btu |
Cooling BTUH (MIN) | 7000.0 Btu |
APPEARANCE
Installation | Through-the-Wall |
Color Appearance | White |
WEIGHTS & DIMENSIONS
Overall Depth | 21 in |
Overall Height | 16 in |
Overall Width | 42 in |
Approximate Shipping Weight | 124 lb |
Net Weight | 99 1/5 lb |
POWER / RATINGS
Heating - Electric - Heater Watts | 3535/2935 |
Heating - Electric - Heater Amps | 15.3/13.7 |
Cooling - Amperes; F.L. - Cooling | 2.7/2.9 |
Cooling - Watts | 605/585 |
Cooling - Amperes | 2.45/2.6 |
Voltage (MAX) | 230.0 V |
Voltage (MIN) | 208.0 V |
CLAIMS
208.0 V |
WARRANTY
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
