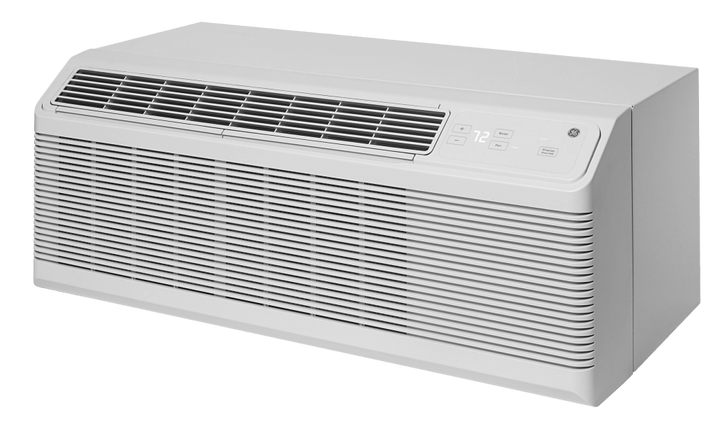

AZ45E09DAB-GE
GE Zoneline AZ45E09DAB sets the design standard for PTACs. We invented and introduced the Zoneline in 1961 and the tradition continues with our newest models, the quietest hotel heat and air units. In the hospitality industry, quiet and comfortable rooms are key to guest satisfaction. Guests demand a quiet air conditioner, so the GE AZ45E09DAB design includes an extra seal around the edge to keep excess noise (and unwanted dirt) outside, a heavy duty mastic barrier for additional noise reduction and two DC fan motors for quiet operation. Independent third party testing confirms the GE AZ45E09DAB is the quietest hotel heat and air unit against leading competitors.
| CAPACITY | |
|---|---|
| Cooling BTUH (MIN) | 9600.0 Btu |
| Cooling BTUH (MAX) | 9700.0 Btu |
| Cooling EER (BTUH / Watt) | 12.1/12.1 |
| CFM Indoor Fan High | 393 |
| CFM Indoor Fan Low | 260 |
| Dehumidification (pts./hr.) | 2.7 |
| Vent CFM (high fan at zero ESP) | 38 |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20 13/16 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
| POWER / RATINGS | |
| Cooling – Amperes; F.L. – Cooling | 3.6/3.9 |
| Cooling – Amperes; L.R. | 21.0 |
| Cooling – Watts | 800/790 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| ZONELINE FEATURES | |
| “Sleep” Mode “Smart Fan” Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel LCDI Power Cord Proportional – Integral ID Airflow Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components |
| FEATURES | |||
|---|---|---|---|

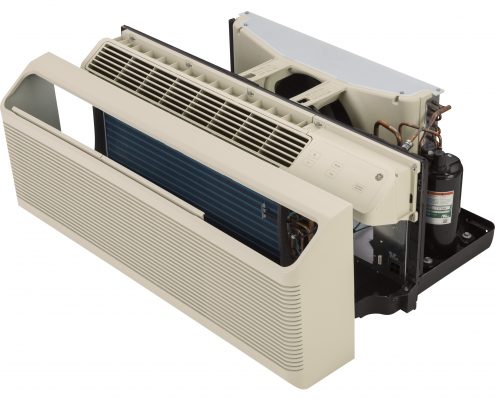

| Sensible Heat Ratio | 64% | Chassis Type | Slide-In |

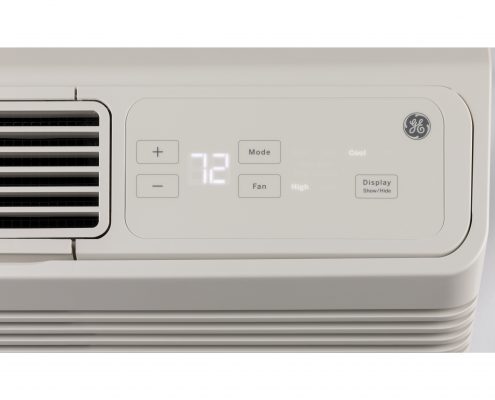

| Control Type | Coverless Backlit White LED Touch Controls | Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes | Fan Cycle Switch | Yes |
| Fan Motor | 2 | Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

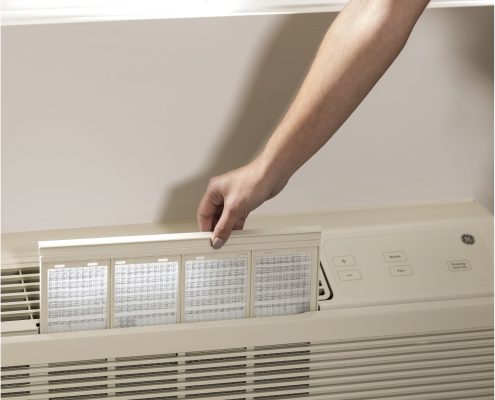

Filter Type | Rigid Frame Slide-Out |
| Heat – Cool | Yes | Louver Style | Reversible |
| Manual Vent Control | Hidden | Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step | Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control – 3 Positions Vent Air Filter |
Temperature Range | 60 – 85 F |
