EON208P-JBL

Description

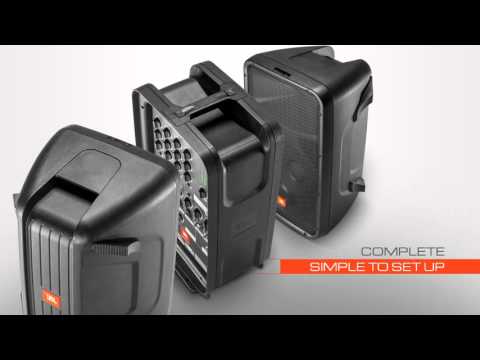

Get legendary sound quality with the EON208P all-in-one portable PA system, complete with an 8-channel mixer, Bluetooth audio and included AKG microphone. With a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8” two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity also allows you to stream audio from your mobile device. With 300 watts, you’ll have more than enough volume to be heard. Plus, the compact and lightweight form factor means you can carry the entire system with one hand.

Features

  •  Legendary JBL audio quality and versatile operation make it the most sophisticated, easy-to-use portable PA.
  •  The detachable 8-channel mixer features professional I/O, thoughtfully designed controls and Bluetooth audio for best-in-class performance.

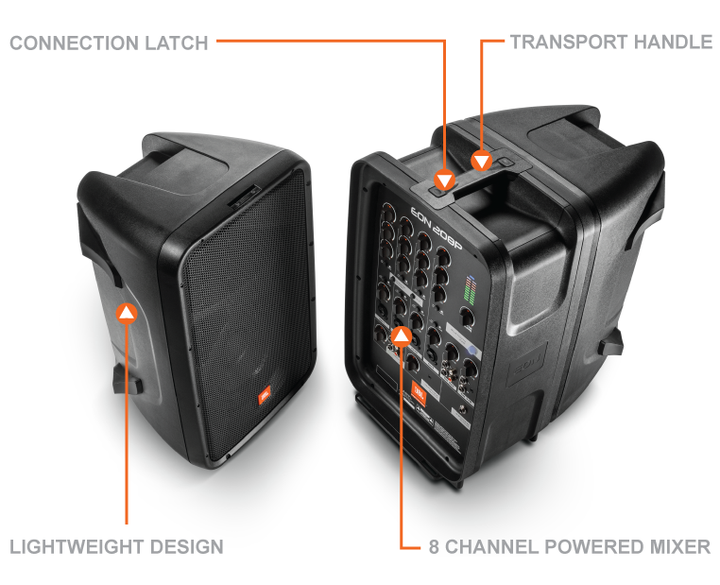

  • Compact and lightweight suitcase-style design allows for effortless one-handed carrying andsimple setup.

Specifications

Download Specifications

System Type Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output 121 dB peak
Frequency Range (-10dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 70 Hz - 18 kHz
AC Input 100-120 V, 220-240 V 50/60 Hz
Amp Design Class D
System Power Rating 300 W (2x 150 W stereo)
Outputs Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4"" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4"" balanced TRS jack

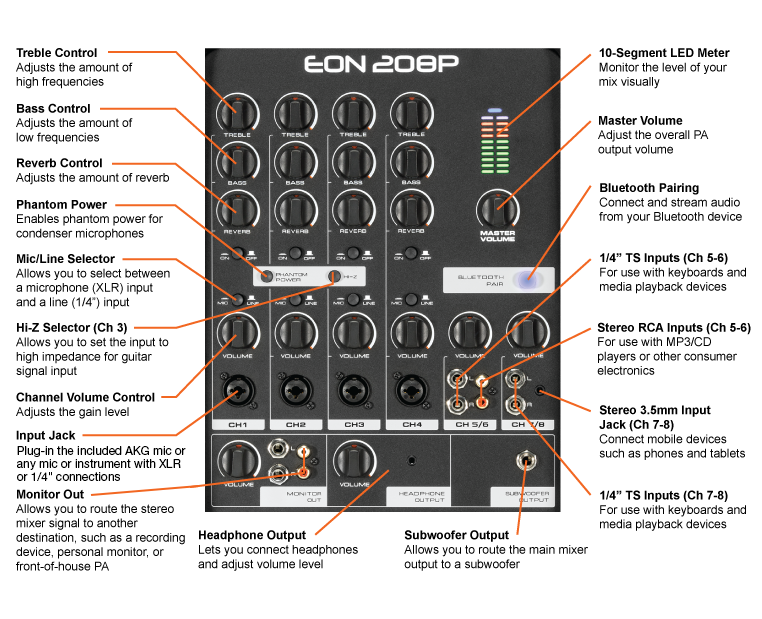

Channels 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter On-board DSP limiting
LF Driver 1x JBL 8" (203mm) woofer
HF Driver 1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern 100° horizontal x 60° vertical
Crossover Frequency 2 kHz
Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure Polypropylene
Suspension/Mounting 36 mm pole socket
Handles One on top
Speaker Grille Powder-coated perforated steel
Dimensions (H x W x D) 575mm x 775mm x 400mm (22.6in x 30.5in x 15.7in)
Net Weight 38.8 lbs (17.6 kg)
Mic Inputs 4
EQ Treble, Bass
Effects Reverb
Inputs 1-4: XLR/1/4"" jack combo connectors 5-6: one pair of 1/4"" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4"" balanced TRS jacks (stereo), and a 3.5mm stereo jack
