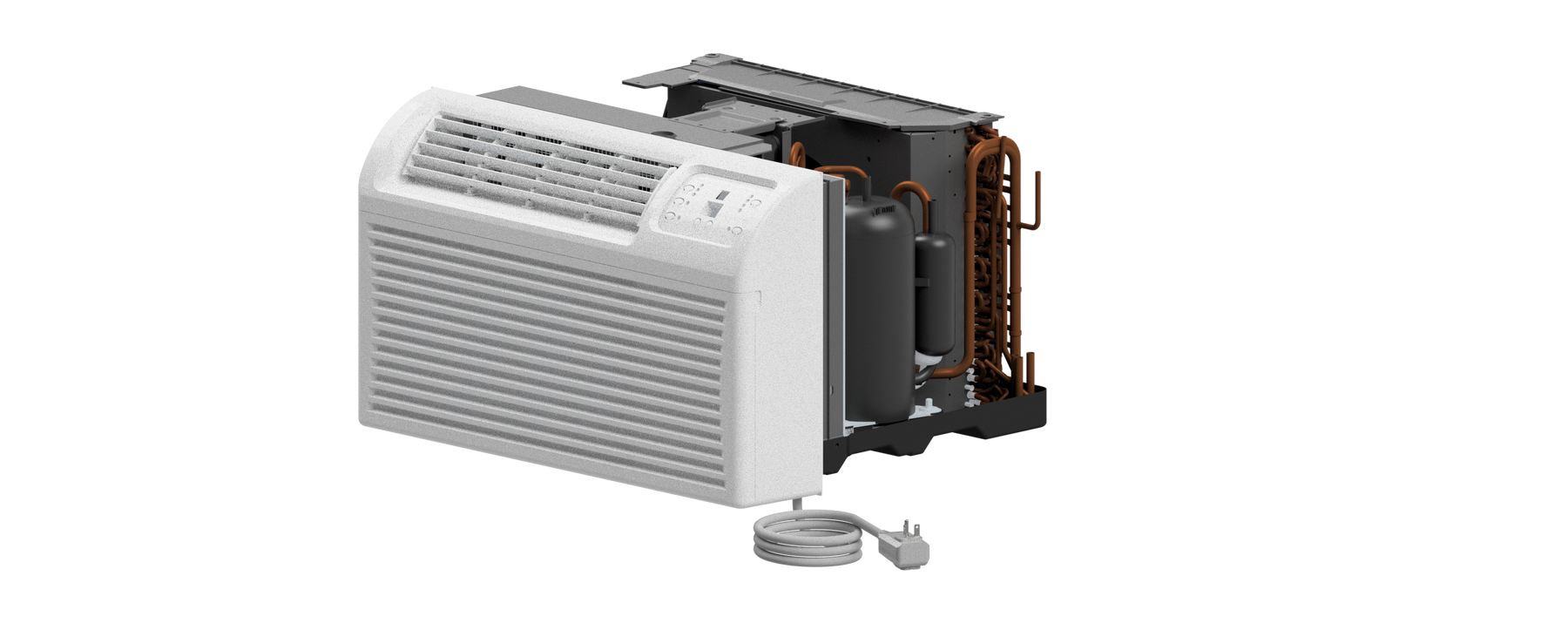

Islandaire EZ26 Series 26" Packaged Terminal AC with heavy duty construction and indoor noise reduction

The EZ26 Series units are designed and manufactured for new construction or the replacement of 26” packaged terminal air conditioning units in an existing building. The product is designed for individually-zoned, comfort-controlled heating and cooling. We offer our chassis to operate in cooling only, cooling with electric heat, and cooling with heat pump with backup electric heat. The design standards, heavy duty construction and the focus on indoor noise reduction has established our unit as the premier unit of the future. Replacement for the Amana PB Series 26” unit, the GE AJ Series 26” unit, the Friedrich 27” Wallmaster unit* and the Fedders 27” unit*.

• Quiet Operation
• Energy Saver Mode (Auto Fan)
• Two Motor Design
• Electronic Touch Pad Controls
• Hand Held Controller
• Fan Cycle Switch
• Four Way Adjustable Discharge
• Slide Out Chassis
• Sleeve Dim: 26”w x 15 5/8”h x 16 7/8”d
• Fits Standard 26” wide Wall Sleeve
• Remote Thermostat Capable (Standard)

DOWNLOAD FULL SPECS HERE

SEE THE OTHER MANUFACTURER MODEL REPLACEMENT GUIDE HERE

Available in cooling-only and cooling plus heat pump models
Cooling from: 7700-12000 Btu
Heating: 6300-17070 Btu

Comfort & Dehumidification
Quiet operation
Intuitive digital controls with optional hand held remote
Even heat monitoring checks room temperature and automatically adds a heat boost if necessary
Samples the room temperature in intervals to monitor and maintain desired temperature
Optional constant fan mode for additional comfort options

Sound Reduction Technology
New motor design allows the indoor motor to run at slower speeds, which reduces indoor sound levels
The quiet, efficient compressor is mounted on vibration isolators, which absorb vibration-causing noise
Permanently lubricated dual motors reduce noise
New elongated fan moves air over a wider area so it’s quieter
Fan turns on before the compressor starts to muffle the sound
High-density insulation helps keep outdoor noise outside

Commercial Grade Construction
Islandaire’s advanced anti-corrosion protection protects the outdoor coil against deterioration and extends unit life, especially in harsh coastal environments
Freeze Protection initiates heat if room temperature falls to 40 °F in an unoccupied room
Random compressor resistant protectselectrical systems
Indoor coil frost sensor protects the compressor
Durable front panel with break-proof control door and design
Permanently lubricated fan motors
Tamper-resistant grille
Durable, powder coat paint finish

Health and IAQ
Fresh-air vent
Two washable, antimicrobial filters

Energy Usage: Management
Set separate heat and cool range limits
Desk control ready
Energy Management System Compatible
Electronic defrost control

Maintenance and Installation Features
Service error code storage
May be installed flush with floor
Reversible indoor air louvers
Improved weather barrier
Nationwide Service Network
Modular design and pop out wiring modules
