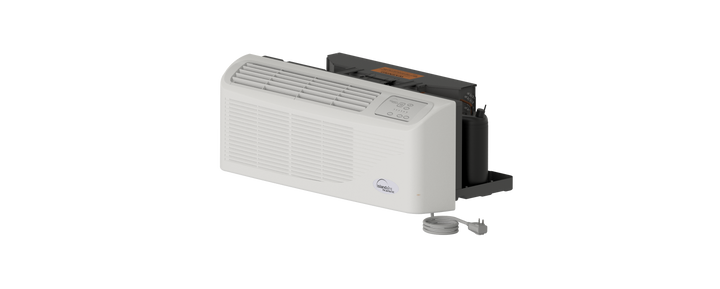

Islandaire The EZ42 Series 42" Packaged Terminal AC for individually-zoned comfort controlled heating and cooling

The EZ42 Series units are designed and manufactured for new construction or the replacement of existing Amana, GE, LG, Friedrich, Gree, Trane and all other 42” by 16” PTACs & PTHPs. The product is designed for individually-zoned, comfort-controlled heating and cooling. The unit width is an industry standard 42”. We offer our cooling chassis to operate with cooling only or heat pump with back up electric heat, or just straight electric heat. The design standards, heavy duty construction and the focus on indoor noise reduction has created our unit as the premier unit of the future. Standard warranty is a one year parts and labor including five year sealed system part only warranty or a two year parts only including a five year sealed system part only warranty.

FEATURES:

• Dual fan motors
• Quiet and energy-efficient compressor
• Superior temperature control
• Conventional thermostat compatible for heat pump applications
• Modern and elegant appearance
• Washable filter for easy cleaning
• User friendly control panel, remote controller and wall thermostat
• Wi-Fi ready (standard equipment)
• Compressor freeze protection
• Manual fresh air damper
• Random start-up delay after power failure
• Room side freeze protection (optional)
• On-board Diagnostics

ACCESSORIES:

• Heavy Duty insulated wall sleeve
• Condensate removal kit
• Architectural louver
• Sub-base kit
• Electrical sub-base kit
• Wired remote thermostat
• Wireless remote thermostat
• I.R. motion sensor
• Door switch
• Duct kit

OPTIONS:

• Up to 55 CFM Continuously Conditioned make up air
• Electric heat add-on for the Dr. PTAC make up air system for cold climates



DOWNLOAD THE FULL SPEC SHEET HERE

SEE THE OTHER MANUFACTURER MODEL REPLACEMENT GUIDE HERE

Available in cooling-only and cooling plus heat pump models
Cooling from: 7700-15000 Btu
Heating: 6300-17000 Btu

Comfort & Dehumidification
Quieter operation
Intuitive controls
Samples the room temperature every 9 minutes to monitor and maintain desired temperature
“Instant Heat” in heat pump mode quickly heats a room to the desired temperature
Dehumidification mode removes up to 3.2 pts per hour
Optional constant fan mode for additional comfort options
Reversible indoor air louvers for an additional airflow direction option

Sound Reduction Technology
New 2-motor design allows the indoor motor to run at slower speeds, which reduces indoor sound levels
The quiet, efficient compressor is mounted on vibration isolators, which absorb vibration-causing noise
Permanently lubricated dual motors reduce noise
New elongated fan moves air over a wider area so it’s quieter
Fan turns on before the compressor starts to muffle the sound
High-density insulation helps keep outdoor noise outside

Commercial Grade Construction
Islandaire’s advanced anti-corrosion protection protects the outdoor coil against deterioration and extends unit life, especially in harsh coastal environments
Faultless surehold Front cover system attaches securely
Room Freeze Protection initiates heat if room temperature falls to 40 °F in an unoccupied room
Random compressor resistant protects electrical systems
Indoor coil frost sensor protects the compressor
Durable front panel with break-proof control door and design
Permanently lubricated fan motors
Tamper-resistant grille
Durable, powder coat paint finish

Health and IAQ
Fresh-air vent
Two washable, antimicrobial filters

Energy Usage: Management
Set separate heat and cool range limits
Desk control ready
Energy Management System Compatible
Electronic defrost control

Maintenance and Installation Features
Service error codes for quick diagnostics
May be installed flush with floor
Improved weather barrier
Nationwide Service Network
Modular design and pop out wiring modules
