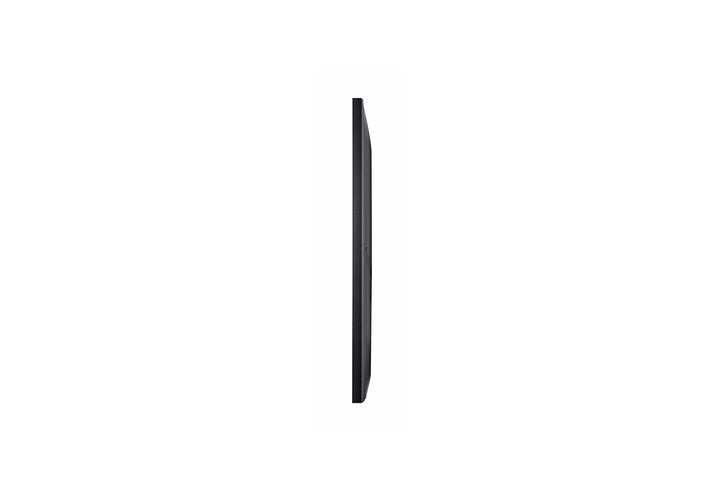

LG 55UH7F-H 55" IPS UHD Slim Digital Display Left Side View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Tilt Right View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Right Side View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Back View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Top View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Angled View With Stand
LG 55UH7F-H 55" IPS UHD Slim Digital Display Connectivity Ports
LG 55UH7F-H 55" IPS UHD Slim Digital Display Front TV On View Content
LG 55UH7F-H 55" IPS UHD Slim Digital Display Front View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Tilt Left View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Left Side View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Tilt Right View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Right Side View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Back View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Top View
LG 55UH7F-H 55" IPS UHD Slim Digital Display Angled View With Stand
LG 55UH7F-H 55" IPS UHD Slim Digital Display Connectivity Ports

LG 55UH7F-H 55" IPS UHD Slim Digital Display with IP5x Certification, 700 nit Brightness, 24/7 Runtime and 3 Year Warranty

KEY FEATURES

  • Ultra HD Resolution with IPS Panel Technology and 700 nits Brightness (Typ.)
  • Non-Glare Surface Treatment (Haze - 28%)
  • Narrow Bezel & Slim Depth - 9.9 mm (T/R/L), 14.4 mm (B)
  • Detachable Logo & Built-In Speakers
  • IP5x Certification
  • 30° Tilting Installation
49" 55" 65"

Model Specifications

4K UHD

Resolution

55"

Screen Size

IPS

Display Technlogy

24/7

Run Time

700 nit

Brightness

3 Year

Warranty

PANEL MODEL NAME 65UH7F-H 55UH7F-H 49UH7F-H
Diagonal 65" 55" 49"
Panel Technology IPS IPS IPS
Back Light Type Edge Edge Edge
Aspect Ratio 16:9 16:9 16:9
Native Resolution 3840 x 2160 (UHD) 3840 x 2160 (UHD) 3840 x 2160 (UHD)
Refresh Rate 60 Hz 60 Hz 60 Hz
Brightness (Typ.) 700 nits 700 nits 700 nits
Contrast Ratio 1,100:1 1,100:1 1,000:1
Dynamic CR 500,000:1 500,000:1 500,000:1
Color gamut BT709 95% BT709 95% BT709 95%
Viewing Angle (H x V) 178° x 178° 178° x 178° 178° x 178°
Color Depth 10 bit, 1.07 Billion colors 10 bit, 1.07 Billion colors 10 bit, 1.07 Billion colors
Response Time (G to G) 8 ms 8 ms 8 ms
Surface Treatment (Haze) 28% 28% 28%
Lifetime 50,000Hrs (Min.) 50,000Hrs (Min.) 50,000Hrs (Min.)
Operation Hours (Hours/Day) 24/7 24/7 24/7
Portrait / Landscape Yes / Yes Yes / Yes Yes / Yes
Built-in Speaker Yes Yes Yes
CONNECTIVITY HDMI Yes (3) Yes (3) Yes (3)
HDMI1/HDMI2: HDCP 2.2/1.4
HDMI3: HDCP 1.4		 HDMI1/HDMI2: HDCP 2.2/1.4
HDMI3: HDCP 1.4		 HDMI1/HDMI2: HDCP 2.2/1.4
HDMI3: HDCP 1.4
RS232C In Yes (1), 4-pin 3.5 mm Yes (1), 4-pin 3.5 mm Yes (1), 4-pin 3.5 mm
RJ45 (LAN) Yes (1) Yes (1) Yes (1)
IR In Yes (1) Yes (1) Yes (1)
USB USB2.0 Type A (1) USB2.0 Type A (1) USB2.0 Type A (1)
Audio Out Yes (1) Yes (1) Yes (1)
RS232C Out (External Control) Yes (1), 4-pin 3.5 mm Yes (1), 4-pin 3.5 mm Yes (1), 4-pin 3.5 mm
MECHANICAL Bezel Color Black Black Black
Bezel Width T/R/L: 9.9mm,  B: 14.4mm T/R/L: 9.9mm,  B: 14.4mm T/R/L: 9.9mm,  B: 14.4mm
Weight 62.2 lbs / 28.2 Kg 41.9 lbs / 19.0 Kg 34.0 lbs / 15.4 Kg
Weight with Stand 63.5 lbs / 28.8 Kg 43.2 lbs / 19.6 Kg 35.3 lbs / 16.0 Kg
Shipping Weight 77.2 lbs / 35.0 Kg 53.4 lbs / 24.2 Kg 41.4 lbs / 18.8 Kg
"Dimensions (W x H x D) (including  LG Logo)" 57.2 x 33.2 x 1.6 in 48.6 x 28.4 x 1.6 in 43.3 x 25.4 x 1.6 in
1453.3 x 844.0 x 39.9 mm 1234.4 x 720.9 x 39.9 mm 1098.6 x 644.5 x 39.9 mm
Dimensions with Stand (W x
H x D)		 57.2 x 35.2 x 11.4 in 48.6 x 30.3 x 11.4 in 43.3 x 27.3 x 11.4 in
1453.3 x 893.1 x 290.0 mm 1234.4 x 770.7 x 290.0 mm 1098.6 x 694.3 x 290.0 mm
Shipping Dimensions (W x H x D) 63.0 x 43.1 x 6.9 in 53.5 x 32.9 x 6.9 in 47.1 x 30.5 x 6.4 in
1600.0 x 1095.0 x 175.0 mm 1360.0 x 835.0 x 175.0 mm 1197.0 x 775.0 x 162.0 mm
Handle No No No
VESATM Standard Mount
Interface		 300 x 300 300 x 300 300 x 300
Tilt (Facedown) Max 30° Max 30° Max 30°
OPS type compatible Yes Yes Yes
IP Rating IP5X IP5X IP5X
FEATURES MODEL NAME 65UH7F-H 55UH7F-H 49UH7F-H
Internal Memory 8GB 8GB 8GB
Built-in Wi-Fi Yes Yes Yes
Temperature Sensor Yes Yes Yes
Auto Brightness Sensor Yes Yes Yes
Acceleration(Gyro) Sensor Yes Yes Yes
Local Key Operation Yes Yes Yes
webOS ver. webOS4.1 webOS4.1 webOS4.1
CMS - Local Contents
Scheduling		 Yes Yes Yes
CMS - Group Manager Yes Yes Yes
USB Plug & Play Yes Yes Yes
Fail over Yes Yes Yes
Booting Logo Image Yes Yes Yes
No Signal Image Yes Yes Yes
RS-232C Sync Yes Yes Yes
Local Network Sync Yes Yes Yes
PIP Yes Yes Yes
PBP Yes (4) Yes (4) Yes (4)
Screen Share Yes Yes Yes
Video Tag Yes (4) Yes (4) Yes (4)
Play via URL Yes Yes Yes
Screen Rotation Yes Yes Yes
External Input Rotation Yes Yes Yes
Gapless Playback Yes Yes Yes
Tile Mode Setting Yes (Max. 15x15) Yes (Max. 15x15) Yes (Max. 15x15)
Setting Data Cloning Yes Yes Yes
SNMP Yes Yes Yes
ISM Method Yes Yes Yes
Auto Set ID Yes Yes Yes
Status Mailing Yes Yes Yes
Control Manager Yes Yes Yes
Crestron Inside Yes Yes Yes
Smart Energy Saving Yes Yes Yes
PM mode Yes Yes Yes
Wake on LAN Yes Yes Yes
Network Ready Yes Yes Yes
Beacon Yes Yes Yes
HDMI-CEC Yes Yes Yes
SI Server Setting Yes Yes Yes
webRTC Yes Yes Yes
Pro:Idiom Yes Yes Yes
ENVIRONMENT
& POWER		 Operation Temperature 32 °F to 104 °F / 0 °C to 40 °C 32 °F to 104 °F / 0 °C to 40 °C 32 °F to 104 °F / 0 °C to 40 °C
Operation Humidity 10 % to 80 % 10 % to 80 % 10 % to 80 %
Power Supply 100-240 Vac, 50/60 Hz 100-240 Vac, 50/60 Hz 100-240 Vac, 50/60 Hz
Power Type Built-In Power Built-In Power Built-In Power
Power Consumption (Typ.) 130 W 110 W 100 W
Power Consumption (Max.) 180 W 160 W 145 W
Smart Enegy Saving 100 W 85 W 75 W
DPM Less than 0.5 W Less than 0.5 W Less than 0.5 W
Power off Less than 0.5 W Less than 0.5 W Less than 0.5 W
LG SOFTWARE COMPATIBILITY SuperSign CMS Yes Yes Yes
SuperSign Control / Control+ Yes / Yes Yes / Yes Yes / Yes
SuperSign WB Yes Yes Yes
SuperSign Media Editor Yes Yes Yes
Signage 365 Care Yes Yes Yes
WARRANTY
& OTHER		 Warranty 3 Year Limited 3 Year Limited 3 Year Limited
FCC (Regulatory) CB / NRTL CB / NRTL CB / NRTL
CE (Regulatory FCC Class "A" / CE / KC FCC Class "A" / CE / KC FCC Class "A" / CE / KC
ErP (Environmental) Yes Yes Yes
Energy Star (Environmental) 8.0 8.0 8.0
Basic Accessories Remote Control (x2 Batteries), Power Cord, Quick Service  Guide, HDMI Cable, Regulation Book, Phone to RS-
232C Adapter		 Remote Control (x2 Batteries), Power Cord, Quick Service  Guide, HDMI Cable, Regulation Book, Phone to RS-
232C Adapter		 Remote Control (x2 Batteries), Power Cord, Quick Service  Guide, HDMI Cable, Regulation Book, Phone to RS-
232C Adapter
Optional Accessories Stand (ST-653T), Wall bracket
(LSW350B),
VESA Adapter (AM-B330S)		 Stand (ST-653T), Wall bracket (LSW350B), VESA Adapter (AM- B330S), OPS Kit (KT-OPSF) Stand (ST-653T), Wall bracket (LSW350B), VESA Adapter (AM- B330S), OPS Kit (KT-OPSF)
Download Specs PDF

The UH7F-H Series

The UH7F-H’s built-in Quad-Core System can execute several tasks at once while providing smooth content playback. The LG webOS™ platform has an intuitive Graphic User Interface (GUI) and simple app development tools. LG’s UH7F-H Series has been Crestron Connected® certified for high compatibility with professional AV controls, achieving virtually seamless integration and automated control*, providing excellent business management efficiency.

Key Features

CLEAR VIEW WITH NON-GLARE COATING

Brightly lit conditions create unnecessary reflections and disturbances for viewers. LG’s UH7F-H Series overcomes this obstacle using a non-glare coating that increases the level of haze, enhancing overall visibility and text readability.

ULTRA HD RESOLUTION

Ultra HD is 4 times higher than Full HD, making colors and details of content vivid and realistic. In addition, LG’s IPS panel technology offers wide viewing angles and clear content.

NARROW BEZEL & SLIM DEPTH

The UH5F-H Series has a sophisticated narrow bezel size and thickness, helping to create an immersive experience that can improve the ambiance of the space where the display is installed.

DETACHABLE LOGO & BUILT-IN SPEAKERS

Equipped with a new transparent logo and built-in speakers, LG’s UH7F-H Series gives users flexible installation and enriched audio effects.

CERTIFIED DESIGN

IP5x Dust-Proof Certification protects from outside debris, to help reduce the overall risk of performance degradation.

30° TILTING INSTALLATION

The UH7F-H Series can be installed in high places with a flexible tilt of up to 30°, making it easier for customers to view.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
