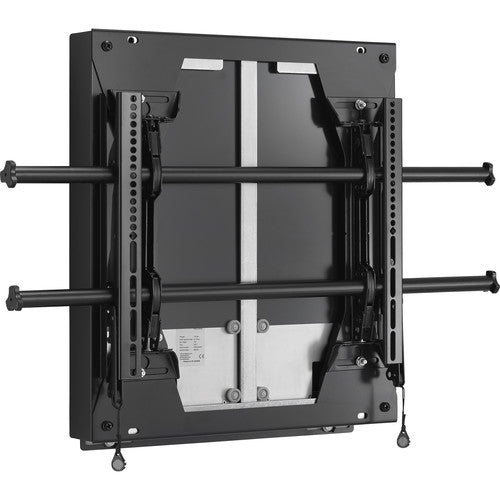

Chief LSD1U Large Fusion Micro-Adjustable Fixed Wall Display Mount, 100x100 - 878x400, support 180lbs
Chief LSD1U Large Fusion Micro-Adjustable Fixed Wall Display Mount, 100x100 - 878x400, support 180lbs
Chief LSD1U Large Fusion Micro-Adjustable Fixed Wall Display Mount, 100x100 - 878x400, support 180lbs

Chief LSD1U Large Fusion Micro-Adjustable Fixed Wall Display Mount, 100x100 - 878x400, support 180lbs

LSD1U-CHIEF

Description

Ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.

Key Features

  • Height-adjustable box allows up to 15.75" of vertical adjustment
  • ControlZone for post-installation fine-tuning of height and leveling

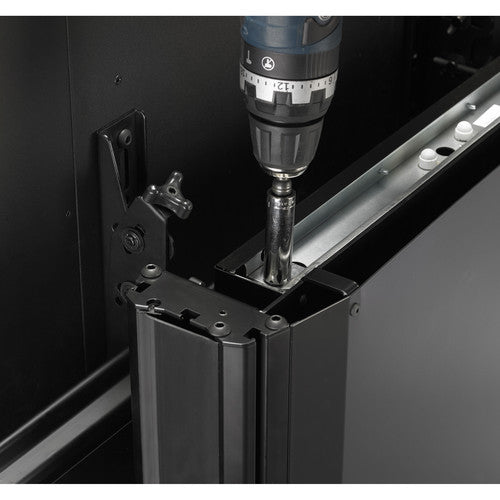

  • Set screws are designed to keep the mount rigid, stable, and secure throughout the life of the installation
  • Built-in cable stand provides easy access under the screen
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Accessories can be installed with the mount and the entire unit can be adjusted together
  • Spring system tested to 60,000 cycles and 10 years of use
  • Integrated security flag

Specifications

Download Specifications

Compatibility
Weight Capacity 180 lb / 81 kg
Mounting-Hole Pattern 100 x 100 to 878 x 400 mm
Number of Displays Supported 1
Adjustments
Vertical Adjustment 15.8" / 40.0 cm
Orientation Landscape
General
Stud Distance 16.0" / 40.6 cm
Dimensions 34.8 x 25 x 5.1" / 884 x 635 x 130 mm
Packaging Info
Package Weight 83 lb
Box Dimensions (LxWxH) 40 x 30 x 8"
