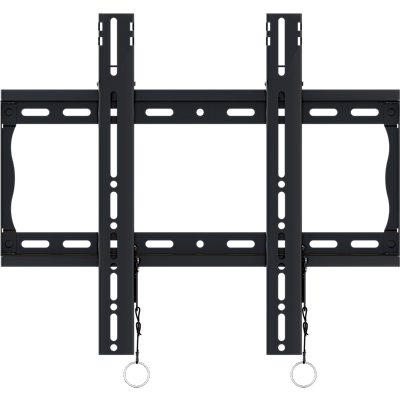

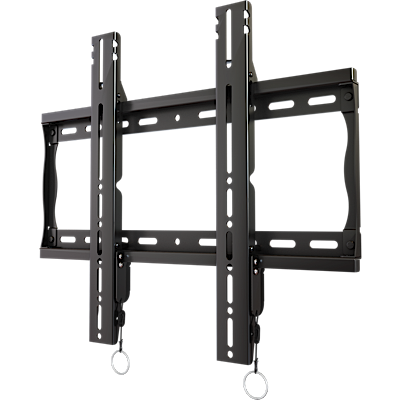

Crimson F63A Universal flat wall mount with leveling mechanism for 37" to 90" screens
F63A-CRIMSON
Description
Adjustable flat wall mount with Universal hole pattern (832x601mm) to fit a wide selection of flat panel screens. Makes a secure installation quick and easy. Post-installation leveling feature allows for perfect screen positioning even when ceiling is not perfectly level. Click in place screen placement requires no tools to secure the screen on the wall. Pre-installed securing screws are included and may be optionally engaged for additional theft deterrent. Open wall plate design and kickstand feature provides easy access to wiring.
Key Features
*Post-installation leveling
*Click in place screen placement without use of tools
*Optional securing screws locks release latch for additional security
*Universal design
*VESA compatible
*Low-profile, holds screen close to wall for a clean look
*Open wall plate allows easy access for wiring
*Lateral shift for perfect placement
*Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
Specifications
-
*TV size range
37” – 90”
-
*Weight capacity
200lb (91kg)
-
*Max mounting pattern
832x601mm
-
*VESA mounting pattern
75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
-
*Post-Installation Leveling
+-5º
-
*Depth from wall
1.4” (35.6mm)
-
*Lateral adjustment
varies with screen
-
*Mounting surface
wood stud, concrete, cinder block or metal stud (accessory required HT6)
-
*Stud spacing
dual stud 16”, 20”, 24” on center, triple stud 16” on center
-
*Construction
high-grade cold rolled steel
-
*Product finish
scratch resistant epoxy powder coat
-
*Product weight
5.1lb (2.3kg)
-
*Package specifications
36”x11”x4”
-
*Color
black
-
*Model number
F63A
-
*Warranty
10-years
