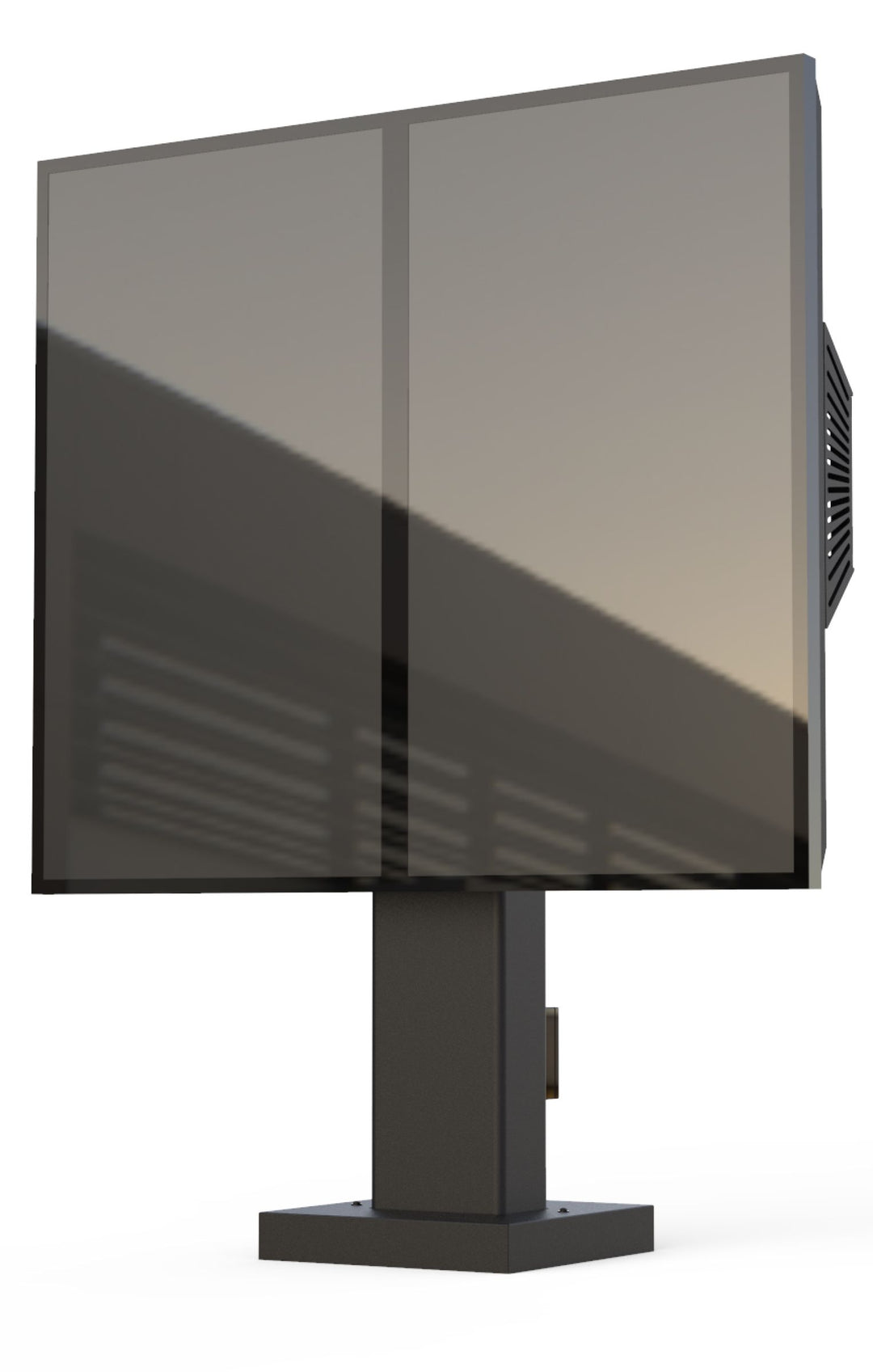

Crimson QSR255-SAM digital drive thru menu board mount for two Samsung 55” OHF displays

QSR255-SAM Dual Display QSR Menu Board with Samsung OH55F

The QSR255-SAM is made for the QSR industry and supports (2) Samsung 55” OHF displays. This digital drive thru menu board is rated for temperatures of -20f to 122f and is wind load rated up to 140 mph.

This system is unique in that there are no custom designed display cabinets. The Samsung OHF display is already IP56 rated and does not require additional protection from the environment. Since this solution is a digital board mount you can buy the display or Crimson AV can purchase it if that is preferred. Constructed using 7 GA. high impact steel braces and ¼” thick walled tubing which will insure longevity and years of use. This DMB solution is first primed with a zinc rich primer and can be painted virtually any color you want. For high traffic areas there is an optional front cover bumper housing available.

Display Size: 55"
Display Type: Samsung OHF
IP Rating: IP65
Operating Temp: -20f to 122f
Wind Load Rating: 140 mph
Constructed: 7 GA. high impact steel
PowerOEM: 6-20W-120 power filter
Warranty: One year warranty
