Crimson WMLU Wall Mounted Menu Board for 30-65" Displays up to 120 lbs
WMLU-CRIMSON
Description

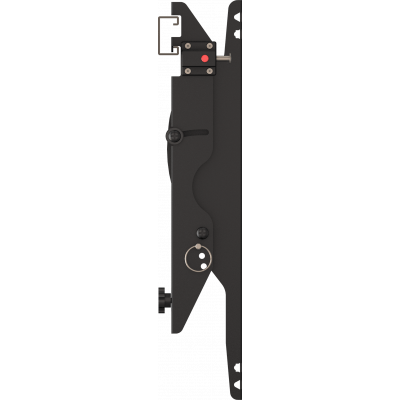

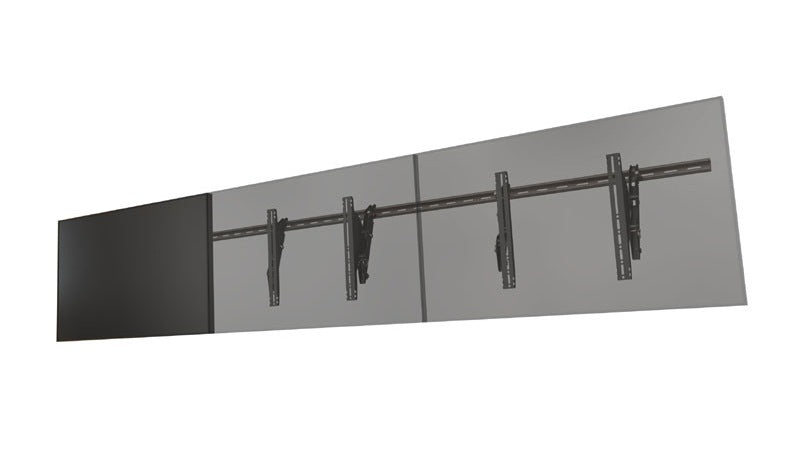

The WMLU menu board flat panel display brackets provide an elegant solution to wall mounted unistrut applications. These unistrut wall mounting brackets attach directly to 1-5/8 unistrut channels, allowing for fast and simple display installation. Plumb adjustment is achieved without the use of tools, ideal for situations involving uneven walls. Up to 18° of tilt allows for a variety of screen positioning for the perfect viewing angle. These unistrut hanging brackets support displays weighing up to 120lbs with VESA patterns of up to 400mm high.
Key Features
- Fast and easy installation
- Ideal for displays 30″-65″+
- Attaches to 1-5/8 unistrut in minutes
- Up to 18° of tilt adjustment for a variety of viewing angles
- No tools required for plumb adjustment
- Easily assembled by a single installer
- Includes all necessary components and hardware
- Supports displays up to 120lbs
Specifications
| TV size range | 30” – 65”+ |
| Weight capacity | 120lb (54kg) per screen |
| Max mounting pattern | 402mm high |
| VESA mounting pattern | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm |
| TVs per configuration | unlimited (priced per TV) |
| Depth from wall | 2.90” (74.5mm) |
| Max Extension | 11.00″ |
| Mounting surface | 1-5/8 unistrut channel |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Color | black |
| Model number | WMLU |
| Warranty | 10-years |
