Crimson CMD2V Multi-Display Mount Portrait and Landscape Orientation, Max VESA: 200x200mm
Crimson CMD2V Multi-Display Mount Portrait and Landscape Orientation, Max VESA: 200x200mm
Crimson CMD2V Multi-Display Mount Portrait and Landscape Orientation, Max VESA: 200x200mm
Crimson CMD2V Multi-Display Mount Portrait and Landscape Orientation, Max VESA: 200x200mm

Crimson CMD2V Multi-Display Mount Portrait and Landscape Orientation, Max VESA: 200x200mm

CMD2V-CRIMSON

Description

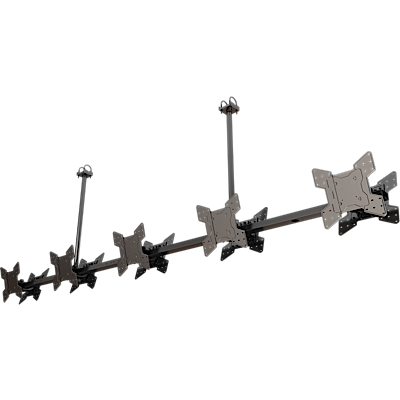

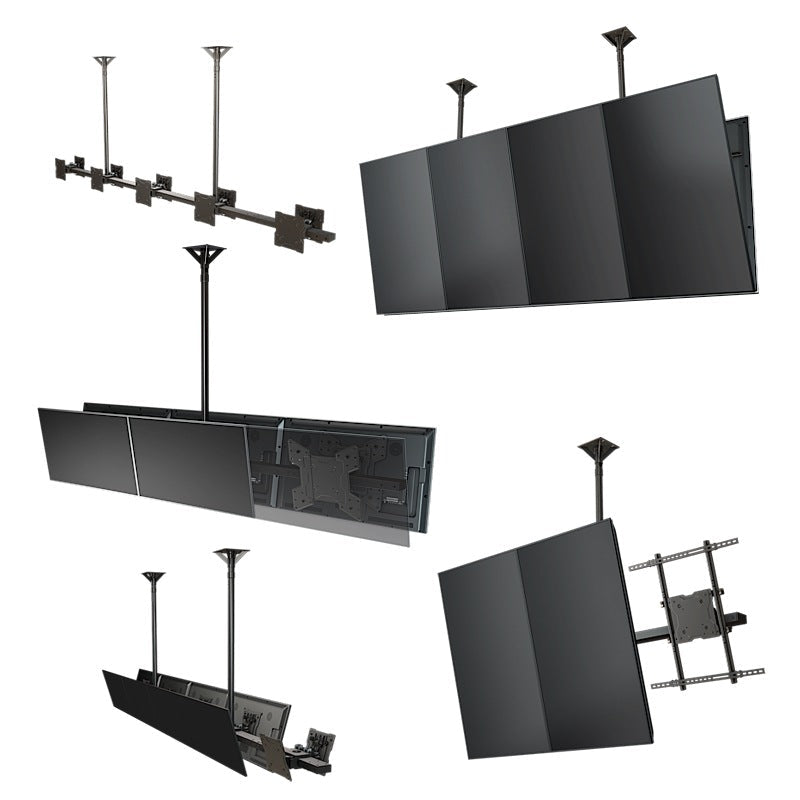

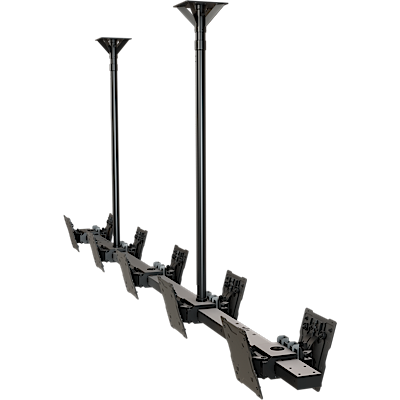

The most flexible and infinitely expandable system for installing menu boards or any in-line single side or back to back configuration for displays 32”-65” and larger. For ease of quoting your customer, prices are based on the number of displays to be mounted. Hang 2,3,10 or more displays in-line. You are limited only by the structure to which the system is attached. Includes all of the necessary components and hardware needed to complete the installation, including the Ceiling Adapter(s). Just add the required drop length of fixed or adjustable column (E-Series or EA-Series) to complete the solution.

Specifications

  • Model number - CMD2V
  • TV size range - Any
  • Weight capacity - 150lb (68kg) per screen
  • Max mounting pattern - VESA 200X200mm
  • TVs per configuration - unlimited (priced per set of back to back TVs)
  • Orientation - In-line landscape or portrait
  • Tilt - +15°/-5°
  • 1.5” NPT thread compatible - Yes
  • Mounting surface - wood joist, structural wood or structural concrete (accessory required HE4)
  • Construction - high-grade cold rolled steel
  • Product finish - scratch resistant epoxy powder coat
  • Color - black
  • Warranty - 10-years

Model Comparison

Model Number CM2V CM4V CM8U CMD2V CMD4V CMD8U
TV size range Any Any Any Any Any Any
Weight capacity 150lb (68kg) per screen 150lb (68kg) per screen 150lb (68kg) per screen 150lb (68kg) per screen 150lb (68kg) per screen 150lb (68kg) per screen
Max mounting pattern VESA 200x200mm VESA 400x400mm Universal 800x672mm VESA 200x200mm VESA 400x400mm Universal 800x672mm
TVs per configuration unlimited (priced per TV) unlimited (priced per TV) unlimited (priced per TV) unlimited (priced per TV) unlimited (priced per TV) unlimited (priced per TV)
Orientation In-line landscape or portrait In-line landscape or portrait In-line landscape or portrait In-line landscape or portrait In-line landscape or portrait In-line landscape or portrait
Tilt Tilt+15°/-5° Tilt+15°/-5° Tilt+15°/-5° Tilt+15°/-5° Tilt+15°/-5° Tilt+15°/-5°
1.5” NPT thread compatible Yes Yes Yes Yes Yes Yes
Mounting surface wood joist, structural wood or structural concrete (accessory required HE4) wood joist, structural wood or structural concrete (accessory required HE4) wood joist, structural wood or structural concrete (accessory required HE4) wood joist, structural wood or structural concrete (accessory required HE4) wood joist, structural wood or structural concrete (accessory required HE4) wood joist, structural wood or structural concrete (accessory required HE4)
Construction high-grade cold rolled steel high-grade cold rolled steel high-grade cold rolled steel high-grade cold rolled steel high-grade cold rolled steel high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat scratch resistant epoxy powder coat scratch resistant epoxy powder coat scratch resistant epoxy powder coat scratch resistant epoxy powder coat scratch resistant epoxy powder coat
Color black black black black black black
Warranty 10-years 10-years 10-years 10-years 10-years 10-years
