Premier GB-MS2 Tilting Mount for Displays Up to 160lb, 200x200 - 800x505mm

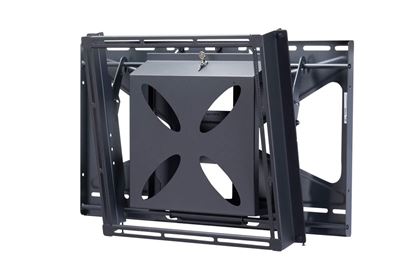

The GB-MS2 Premier wall mount is a tilting mount with integrated storage for flat-panels up to 160 lb. A cross strap allows for mounting anywhere along the length of the mount, including the center. Built-in lateral shift provides flexible flat-panel placement. The integrated equipment storage GearBox™ holds equipment and cabling discreetly behind the flat-panel. The GB-MS2 flat-panel tilt mount was named “Best General A/V Product” by the 2011 Rental & Staging Systems and InfoComm Product Awards.
|SHIPPING WEIGHT :||40 lb. | 18.14 kg|
|WEIGHT CAPACITY PER MOUNT :||160 lb. | 72.57 kg|
|NUMBER OF MOUNTS :||1|
|TOTAL WEIGHT CAPACITY :||160 lb. | 72.57 kg|
|WIDTH :||28 in. | 711.20 mm|
|HEIGHT :||20 in. | 508.00 mm
|DEPTH:||4.87 in. | 123.70 mm|
|MOUNTING PATTERN TYPE :||Range|
|MOUNTING PATTERN :||200 x 200 (Min) , 800 x 505 (Max) mm|
|TYPICAL DISPLAY SIZES :||37.00 in. & up|
|DIM SIZES :||20.5 in. (wide) x 3.5 in. (high) x 34 in. (deep) | 520.7 mm x 88.9 mm x 863.6 mm
The PANELOCK™ Security System works with Premier’s CTM and PCM Series Mounts. This patent-pending device prevents removal of an LCD or Plasma from the mounting plate. The integrated theft-resistant clips latch the mounting bracket arms to the rods on the wall plate. A security screw then locks the pieces in place.
PSD-ACR series low profile right angle power cords for flat panel and projector installations. The AC cords are available in lengths of 18 in. and 72 in.
This 1.5 inch adjustable-height suspension adapter allows you to adjust the height of your display within a range of 24 inch to 46 inch (60.96-116.84cm) in 1.25 inch (3.18cm) increments.
The PSD-EB72 elliptical floor stand with 72 in. polished chrome poles, can be used as either a static stand or mobile display cart when used with optional casters (sold separately). Adapts to Rotary Series, UFA, USA, and CTM series mounts (not included).
This 1.5 in. adjustable-height suspension adapter allows the height of the display or projector to be adjusted within a range of 24 – 46 in. (60.96-116.84cm) in 1.25 in. (3.18cm) increments.
