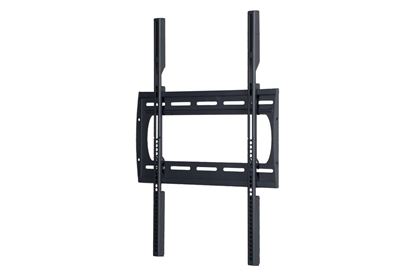

Premier Mounts P4263TP – Low-profile tilting portrait mount for flat-panels up to 175 lb.
P4263TP-PREMIER
Description
The P4263TP P-Series mount is a low-profile tilting portrait mount for flat-panels up to 175 lb. It fits displays with a mounting pattern of 200 x 200mm to 525 x 700mm. It features post-installation leveling, lateral alignment, locking security barrels, and an open mounting frame for easy access to power sources and cables.
Specifications
SHIPPING WEIGHT : | 15.1 lb. | 6.85 kg |
---|---|
WEIGHT CAPACITY PER MOUNT : | 175 lb. | 79.38 kg |
NUMBER OF MOUNTS : | 1 |
TOTAL WEIGHT CAPACITY : | 175 lb. | 79.38 kg |
WIDTH : | 22.41 in. | 569.21 mm |
HEIGHT : | 28.35 in. | 720.09 mm |
DEPTH : | 2 in. | 50.80 mm |
MOUNTING PATTERN TYPE : | Range |
MOUNTING PATTERN : | 200 x 200 (Min) , 525 x 700 (Max) mm |
TYPICAL DISPLAY SIZES : | 42.00 in. & up |
TILT: | +8.00° |
DIM SIZES : | 11.8 in. (wide) x 3 in. (high) x 30 in. (deep) | 299.72 mm x 76.2 mm x 762 mm |
UPC : | 829973150914 |
Accessories
GB-INWAVP
The In-Wall Cable and Power GearBox™ (GB-INWAVP) works well with all Premier flat-panel mounts and is easily installed into a drywall surface. It can be installed anywhere on the wall with no need for stud placement due to unique mounting brackets.
GB-INWAVPB
The In-Wall Cable and Power GearBox™ (GB-INWAVPB) works well with all Premier flat-panel mounts and is easily installed into a drywall surface.
LPWS200
Featuring two adjustable tempered glass shelves, this unit is ideal for DVD, Blu-ray players, cable/satellite receivers or any AV component.
LPWS100
Basic series glass A/V wall shelf for A/V equipment up to 30 lb.
PMPB
The PMPB Media Player Bracket is a quick and easy to install bracket that is designed to securely store display equipment, such as a media player or computer device, behind the flat panel display. It is designed to work with PTDM1, PTDM2, P2642T, P4263T, and P5080T flat panel mounts, provides easy access to stored devices, and offers ample ventilation to regulate the temperature of the media device.
