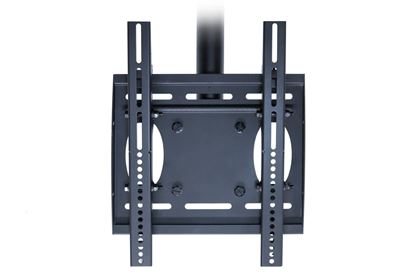

Premier PTDM1 Tilting Mount for Displays Up to 100lb, 200x200 - 300x400mm
PTDM1-PREMIER
Description
The P-Series Versatile Tilting Mount is a low-profile mount for flat panels up to 100 lb./45.4 kg. The PTDM1 can be mounted to the wall, and also has a 4.5” bolt pattern that makes it extremely versatile to use with adapters to suspend from the ceiling, as well as mount to carts and stands. The low-profile tilting TV mount can be mounted in landscape or portrait orientations. Other features include 10° of continual downward tilt, post-installation leveling, and built-in lateral shift.
Specifications
| SHIPPING WEIGHT : | 12 lb. | 5.44 kg |
|---|---|
| WEIGHT CAPACITY PER MOUNT : | 100 lb. | 45.36 kg |
| NUMBER OF MOUNTS : | 1 |
| TOTAL WEIGHT CAPACITY : | 100 lb. | 45.36 kg |
| WIDTH : | 14.39 in. | 365.51 mm |
| HEIGHT : | 16.5 in. | 419.10 mm |
| DEPTH: | 1.99 in. | 50.55 mm |
| MOUNTING PATTERN TYPE : | Range |
| MOUNTING PATTERN : | 200 x 200 (Min) , 300 x 400 (Max) mm |
| TYPICAL DISPLAY SIZES : | 40.00 in. & up |
| TILT: | +10.00° |
| DIM SIZES : | 18 in. (wide) x 4 in. (high) x 21 in. (deep) | 457.2 mm x 101.6 mm x 533.4 mm |
| UPC : | 829973825331 |
Accessories
PSD-HDCA
Attaching to cart or stand configurations in less than a minute, the precisely designed PSD-HDCA makes installation a simple, one step process with no special tools required. The PSD-HDCA adapter proves versatile with its ability to adapt to any of Premier Mounts PSD dual pole stands, UFA adapter plates, or AV shelves, providing a wide array of mounting options. With a 4.5” bolt pattern, the attached mount has a 100 × 100 mm VESA mounting pattern as well as a tested weight capacity of 200 lb., making it accessible for a vast amount of displays. With Premier Mounts’ UFP adapter plate series, the PSD-HDCA will easily work with mounts with a 200 × 200 mm VESA pattern as well as any other custom pattern in the UFP series.
AST-2446
This 1.5 in. adjustable-height suspension adapter allows the height of the display or projector to be adjusted within a range of 24 – 46 in. (60.96-116.84cm) in 1.25 in. (3.18cm) increments.
PSD-S
This adapter can be added to any Premier PSM or CTM Series flat-panel mount to allow 360° swivel for a ceiling application. Requires 1.5 in. NPT or suspension adapter (AST-2446). Unique 1.5 in. aluminum coupler allows for cable routing within the pipe.
