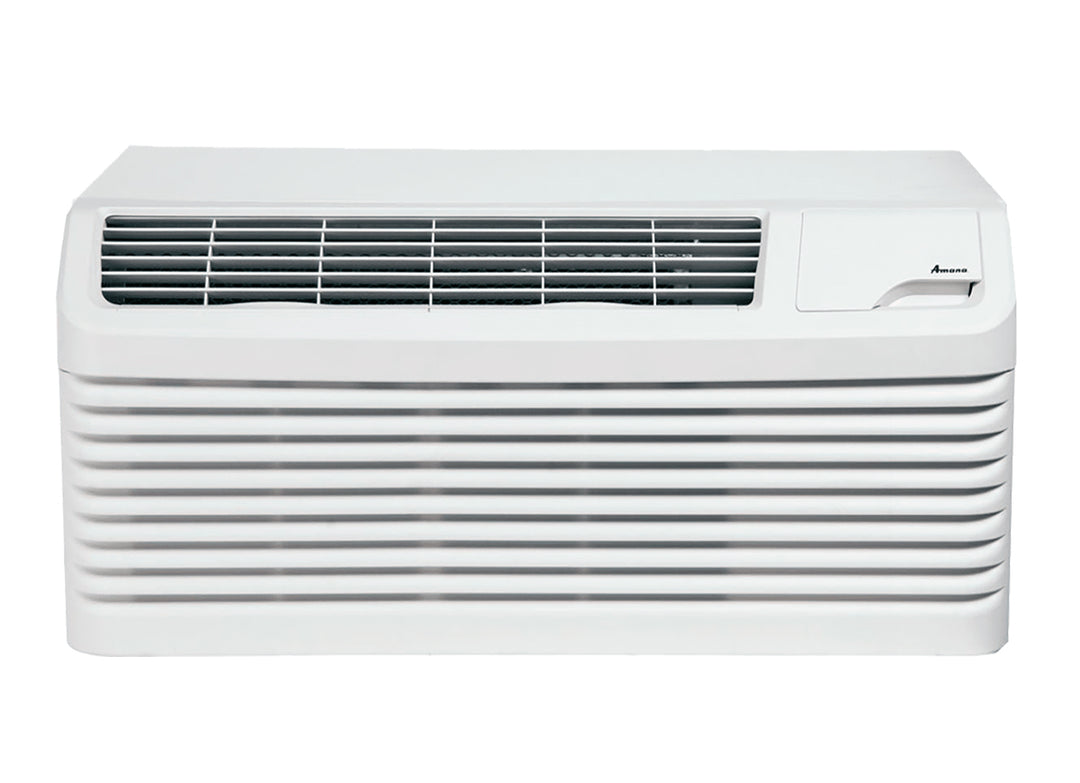

Amana PTH093G35AXXX Heat Pump PTAC 9000BTU 230/208 3.5kW 11.5EER with 5-Year Warranty

Amana PTH093G35AXXX Heat Pump PTAC 9000BTU 230/208 3.5kW 11.5EER with 5-Year Warranty



Download Specifications

Voltage3 230 / 208
Capacity (BTU/h) 9,000/8,900
Amps10 4.2 / 4.2
Watts10 785 / 785
EER 11.5/11.5


Redesigned to be the quietest PTAC they've ever built. All units are 100% run tested at their plant in Fayetteville, TN. Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons. Cooling BTU 9000/9000 Heating BTU 12000/9900

Amana PTH093G35AXXX – Cooling capacity 9100/8900 heating capacity 8300/8100 EER 12.0 Cop 3.4/3.4 voltage 230/208 amps 4.2/4.2 moisture removal (pt/hr) 2.2 cfm (high/low) 290 weight 112 r410a refrigerant. The Amana PTH093G35AXXX utilizes DigiSmart control board technologies to maximize your energy saving capability new Tangential indoor Fan for ultra-quiet Fan operation new pullout filters for easy cleaning new 7-button touch pad design for best and easiest guest operation ever new easy to clean condenser coil with removable shroud room freeze protection fits industry standard 42 inch W x 16 inch h sleeve 3.5Kw electric heat 20 amp (6-20p) plug power plug included with unit. Inquire about the Amana PTH093G35AXXX 9,000 BTU PTAC today.

Key Features

  • Electric heat provides supplemental heating
  • Designed for hotel and motel applications, additions, sunrooms, and small living spaces
  • 7-button touch pad provides complete control for in-room comfort while maintaining energy efficiency
  • Easy pull-out filters that are washable and easy to maintain
  • 100% run-tested at the factory to assure reliable and efficient operation
  • 8,300 BTU Heat Pump
  • Electric Heat Backup
  • 11.5 EER
  • R410A Refrigerant
  • 2.2 Pts/Hr Dehumidification
  • 230/208 Volts
