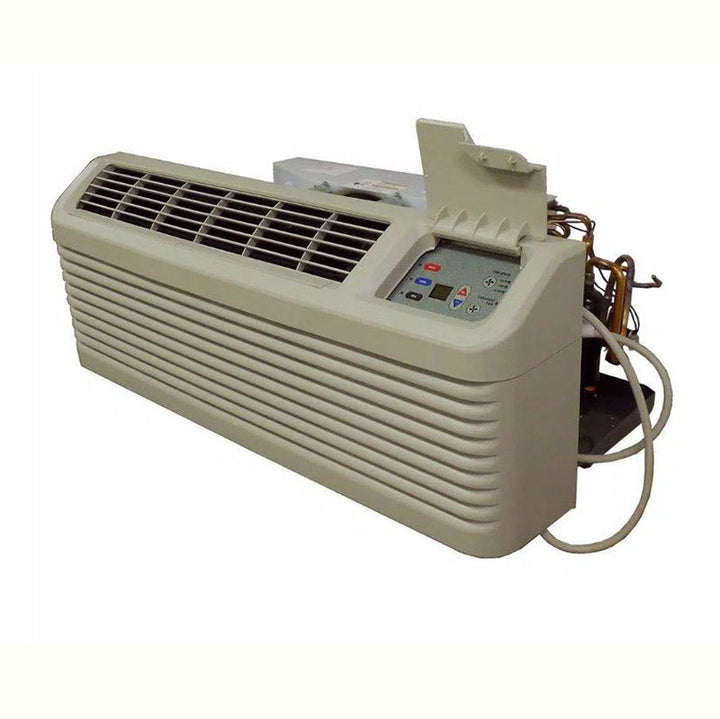

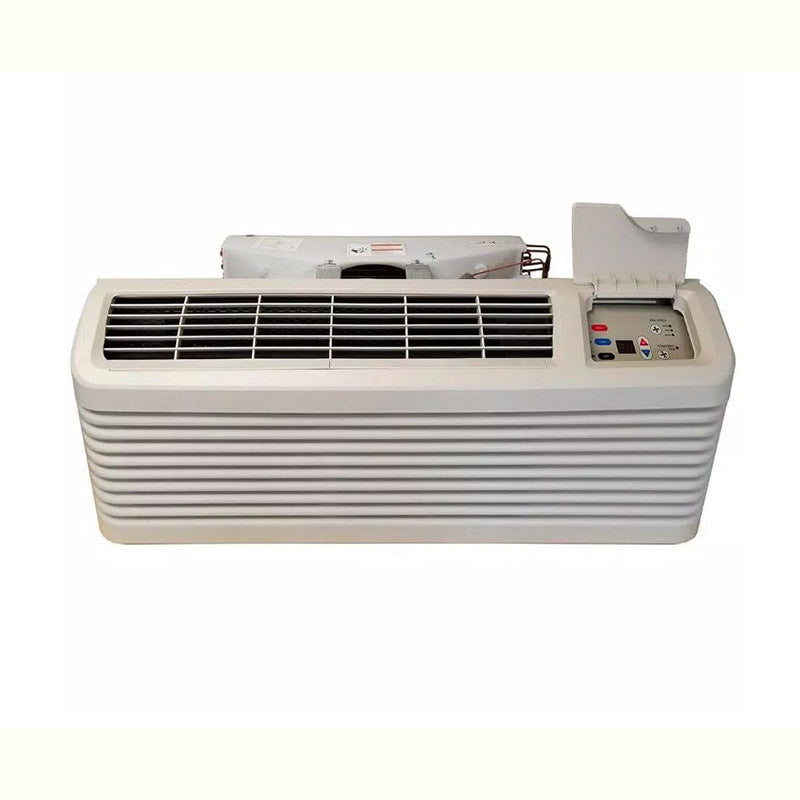

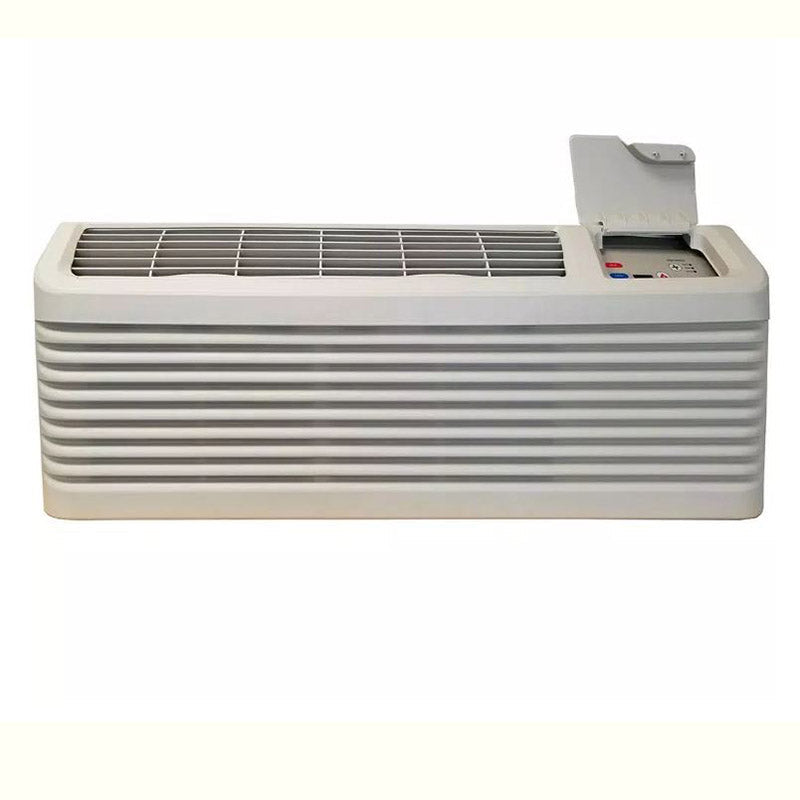

Amana PTH094G25AXXX Front View
Amana PTH094G25AXXX Front View Alternate
Amana PTH094G25AXXX Front View Alternate 3

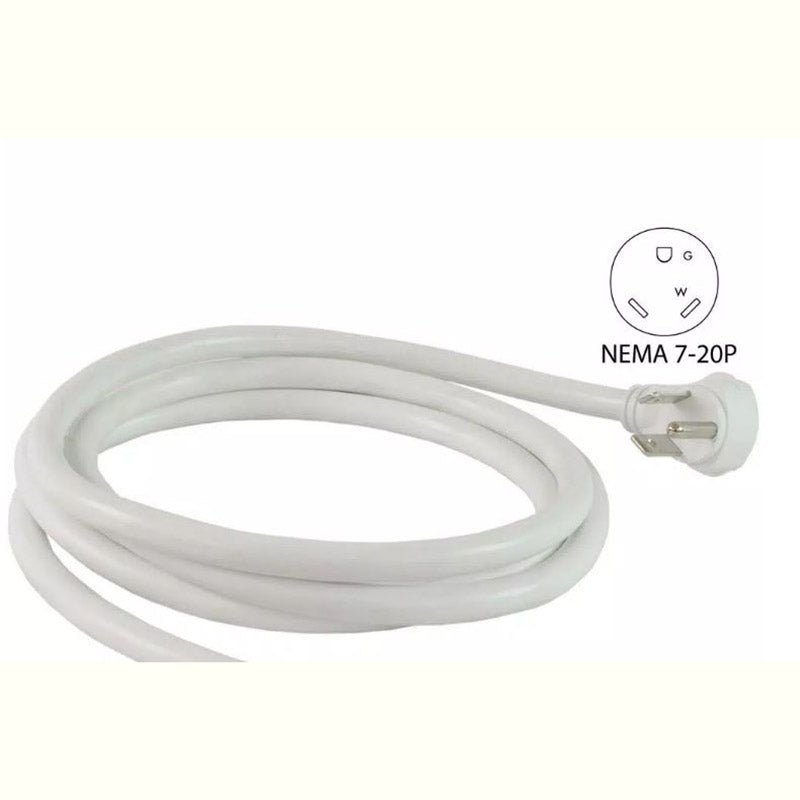

Amana PTH094G25AXXX Power Cord

Amana PTH094G25AXXX 9100 BTU PTAC with 8,300 BTU Heat Pump Capacity, 2.5 kW Electric Heater, R410A Refrigerant, 11.5 Energy Efficiency Ration, DigiSmart Controls and 265V Capacity


Quick Specs

Download Specifications

  • Width: 42"
  • Height: 16.06"
  • Depth: 21.5"
  • Type: PTAC
  • Cooling Capacity (BTU): 9100
  • Heating Capacity (BTU): 8300
  • Heat: Heat Pump with Electric Heat Backup
  • Chassis Type: Through the Wall
  • Wireless Remote Controller: Not Included
  • Filter Type: Washable
  • Easy Access Slide-Out Filter
  • AHRI Certified
  • R410A Refrigerant
  • Constant Fan Mode
  • Washable, Antimicrobial Air Filter

Product Overview

This PTH074G25AXXX PTAC air conditioner by Amana features a built in heat pump with electric heat backup fit to be used anytime in the year. The small size of this air conditioner complements all small living spaces. It also comes with a 7 button touch pad that provides complete control for in-room comfort while maintaining energy efficiency and easy pull-out filters that are easy to maintain.

This Amana PTAC air conditioner with heat features a DigiSmart control board with an easy-to-read control pad and one-button activation. Indoor tangential fan for quiet operation. Automatic 2nd stage electric heat. Easy pull-out filters. Random restart delay after power outages. Indication LED temperature readout and fan operation. This AC and heating unit includes a transfer fan on the low voltage terminal board to allow for an external fan connection. Front mounting hole is provided to secure the front to the chassis. Emergency management system features: temperature setback, door switch and motion sensor low voltage terminals, and serial port interfaces.


Quiet Operation Their PTAC has been redesigned to be the quietest PTAC they've ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

Increased Dehumidification Capacity Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons. As a result, guests feel more comfortable at higher temperatures, thus reducing cooling costs.

Seven-Button Touch Pad Provides complete control to guests for in-room comfort while maintaining energy efficiency.

100% Run Tested All units are 100% run tested at their plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse.

7-5/8" Unit Front Depth Enhance valuable room space with their slim unit front, which has a sleek 7-5/8" depth, one of the shallowest silhouettes in the industry today. In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw.

Removable Condenser Shroud Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.

Easy Pull-Out Filters Their filters are washable and easy to maintain.

Filter Dryer for Sealed System Refrigerant Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

Front Control Each unit comes equipped with the DigiSmart control and energy management software. The Amana brand PTACs also have a low-voltage interface capability with a field-supplied front-desk ON/OFF switch.

Room Freeze Protection When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

Easy-to-Use Controls No complex controls to confuse your guests and create phone calls for your manager. The controls are easy to read, understand, and activate. Their new 7-button control panel provides guests with complete control of the unit for their in-room comfort while maintaining overall energy efficiency.

*Note: Wall Sleeve and Grille are not included and sold separately
