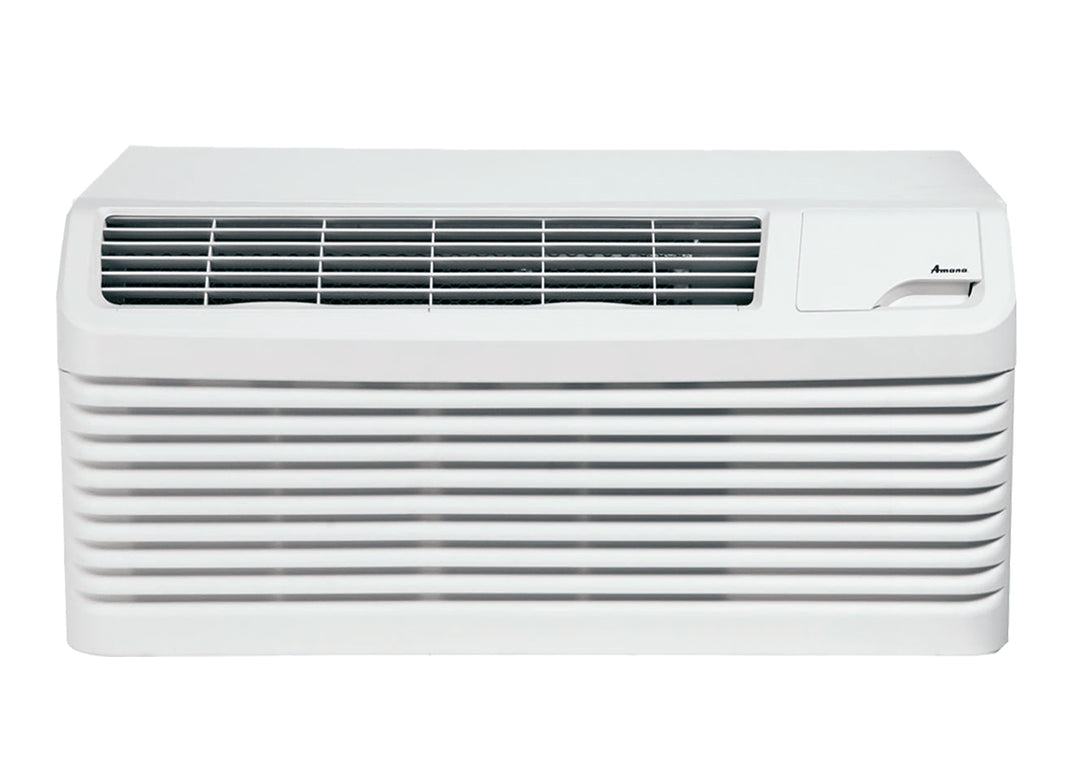

Amana PTH094G35CXXX Heat Pump PTAC 9100 BTU 265v 3.5kW 12 EER with 5-Year Warranty

Specifications

Download Specifications

Summary

All units are 100% run tested at their plant in Fayetteville, TN. Their filters are washable and easy to maintain. When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater. Cooling BTU 9100 Heating BTU 8300.

Key Features

• With EERs up to 12 and COPs up to 3.4, their unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

• Their PTAC has been redesigned to be the quietest PTAC they've ever built.

• The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

• Two fan motors (indoor/outdoor).

• Indoor tangential fan for quiet operation.

• Provides complete control to guests for in-room comfort while maintaining energy efficiency.

• Enjoy one of the most comprehensive warranties in the industry: First Year: parts and labor.

• Second through fifth years: parts and labor on certain sealed system components.

• Second through fifth years: on certain functional parts only.

• For complete warranty details, visit www.amana-ptac.com.

• All units are 100% run tested at their plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse.

• Enhance valuable room space with their slim unit front, which has a sleek 7-5/8" depth, one of the shallowest silhouettes in the industry today.

• In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw.

• Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.

• Their filters are washable and easy to maintain.

• Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation.

• Each unit comes equipped with the DigiSmart control and energy management software.

• With Digi-Smart using the optional RF Antennae, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics.

• Amana brand PTACs also have a low-voltage interface capability with a field-supplied front-desk ON/OFF switch.

• When the unit senses temperatures of 40°F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater.

• No complex controls to confuse your guests and create phone calls for your manager.

• Controls are easy to read, understand, and activate.

• Their new 7-button control panel provides guests with complete control of the unit for their in-room comfort while maintaining overall energy efficiency.
