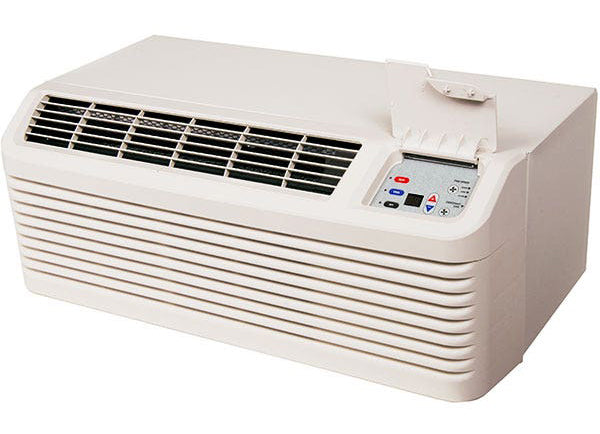

Amana PTH123G25AXXX Heat Pump PTAC 12000BTU 230/208 2.5kW 10.7EER with 5-Year Warranty

Amana PTH123G25AXXX Heat Pump PTAC 12000BTU 230/208 2.5kW 10.7EER with 5-Year Warranty



Download Specifications

Voltage3 230 / 208
Capacity (BTU/h) 12,000 / 12,100
Amps10 5.8 / 5.8
Watts10 1,120 / 1,120
EER 10.7 / 10.7


Equipped with DigiSmart Control. New, Quiet Indoor Tangential Fan. Fits Standard Wall Sleeve. Cooling BTU 12000 Heating BTU 8500/6800

Key Features

• Assembled in the USA for 30 years
• Quiet operation: STC of 28
• Increased dehumidification capacity
• 100% run-tested at our plant in Fayetteville, TN, for leaks
• 7⅝” unit front depth: one of the shallowest silhouettes in the industry today
• Removable condenser shroud allows easy access to enable regular cleaning of coils
• Easy pull-out filters that are washable and easy to maintain
• Filter drier for sealed system refrigerant
• 7-Button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
• Condensate dispersion system removes condensate from indoor cooling operation and evaporates it into the atmosphere through the condenser
• Digismart™ front desk control & energy management software
• Room freeze protection is activated when the unit senses temperatures of 40°F or below
• Versatile style that blends into any room’s color scheme and decor
• Easy to service with on-board led diagnostics • Digismart™ wireless remote thermostat is available
• Remote temperature sensing for guest climate control
• Extended heat pump heating down to as low as 24°F outdoor ambient temperature
• Zero floor clearance allows unit to be installed flush to a finished floor
• 30-second fan-off delay
• Compressor lock-in prevents compressor short-cycling
• Constant fan mode
• Hidden ventilation control
