MCM1U-CHIEF

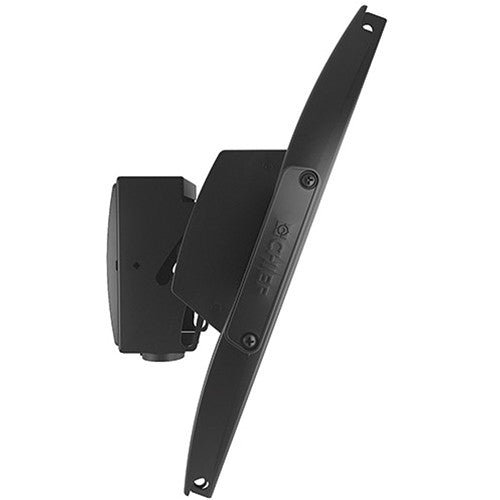

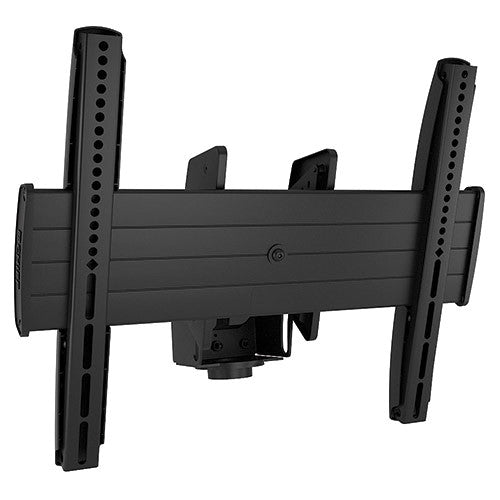

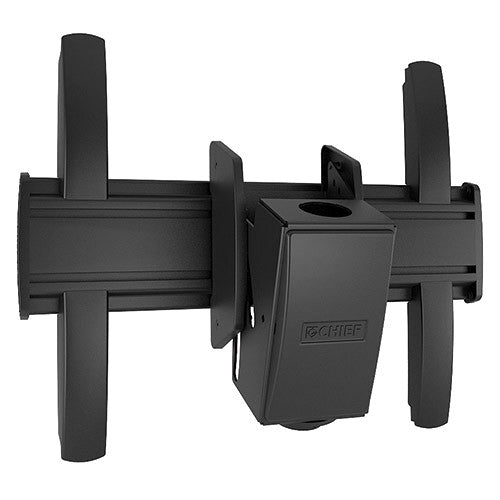

Mount your display to the ceiling with the black Chief MCM1U FUSION Medium Flat Panel Ceiling Mount. It will attach to a traditional 1.5" NPT and select CPA pinned ceiling plate and column systems and supports displays weighing up to 125 lb, with 200 x 100 to 460 x 400mm mounting patterns. It provides -20 to 5° of tilt and ±3° of roll adjustment.
| Compatible With | Traditional 1.5" (3.8 cm) NPT and select CPA pinned ceiling plates and column systems |
| Load Capacity | 125 lb (56.69 kg) |
| Mounting Pattern Compatibility | 200 x 100 mm to 460 x 400 mm |
| Adjustments | Tilt: -20 to 5° Roll, ±3° |
| Orientation | Landscape and portrait |
| Dimensions | 20.82 x 16 x 6.37" (528 x 404 x 162 mm) |
| Weight | Not specified by manufacturer |
| Package Weight | 17.4 lb |
| Box Dimensions (LxWxH) | 24 x 14 x 7" |
