Crimson WMLU Wall Mounted Menu Board for 30-65" Displays up to 120 lbs
Crimson WMLU Wall Mounted Menu Board for 30-65" Displays up to 120 lbs

Crimson WMLU Wall Mounted Menu Board for 30-65" Displays up to 120 lbs

WMLU-CRIMSON

Description

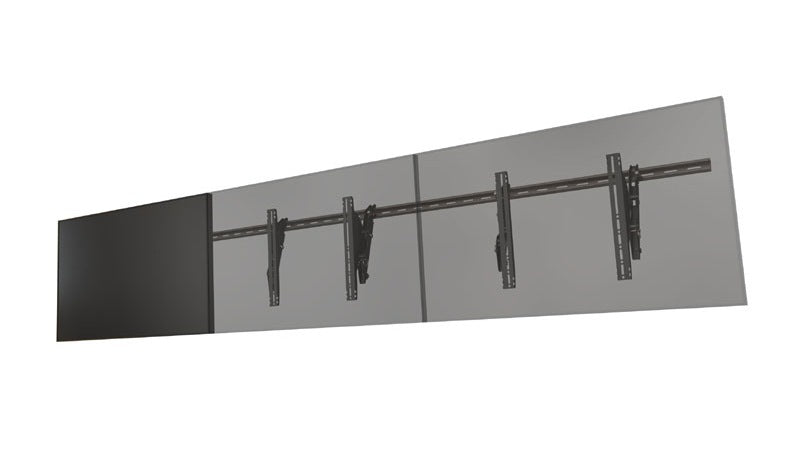

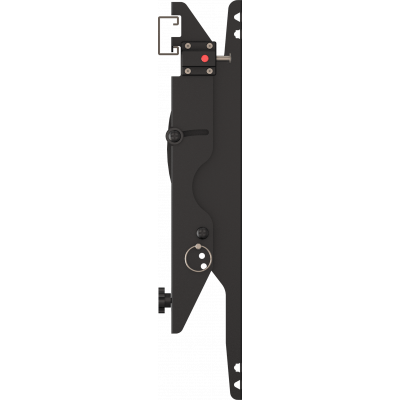

The WMLU menu board flat panel display brackets provide an elegant solution to wall mounted unistrut applications. These unistrut wall mounting brackets attach directly to 1-5/8 unistrut channels, allowing for fast and simple display installation. Plumb adjustment is achieved without the use of tools, ideal for situations involving uneven walls. Up to 18° of tilt allows for a variety of screen positioning for the perfect viewing angle. These unistrut hanging brackets support displays weighing up to 120lbs with VESA patterns of up to 400mm high.

Key Features

  • Fast and easy installation
  • Ideal for displays 30″-65″+
  • Attaches to 1-5/8 unistrut in minutes
  • Up to 18° of tilt adjustment for a variety of viewing angles
  • No tools required for plumb adjustment
  • Easily assembled by a single installer
  • Includes all necessary components and hardware
  • Supports displays up to 120lbs

Specifications

DOWNLOAD SPEC SHEET

TV size range 30” – 65”+
Weight capacity 120lb (54kg) per screen
Max mounting pattern 402mm high
VESA mounting pattern 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
TVs per configuration unlimited (priced per TV)
Depth from wall 2.90” (74.5mm)
Max Extension 11.00″
Mounting surface 1-5/8 unistrut channel
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color black
Model number WMLU
Warranty 10-years
