AH11E07D3B-GE

Description

Easily select one of four temperature ranges for peak efficiency and total customer comfort. Automatic freeze and indoor frost control keep units operating in peak condition. Remote thermostat compatibility. Cooling BTU 7200/7000 Heating BTU 10900/8900.

16 H x 42 W x 21 D

GE Hotpoint Overview

  • Backed by an industry leaderWith a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
  • 4-temperature limiting optionsEasily select one of four temperature ranges for peak efficiency and total customer comfort

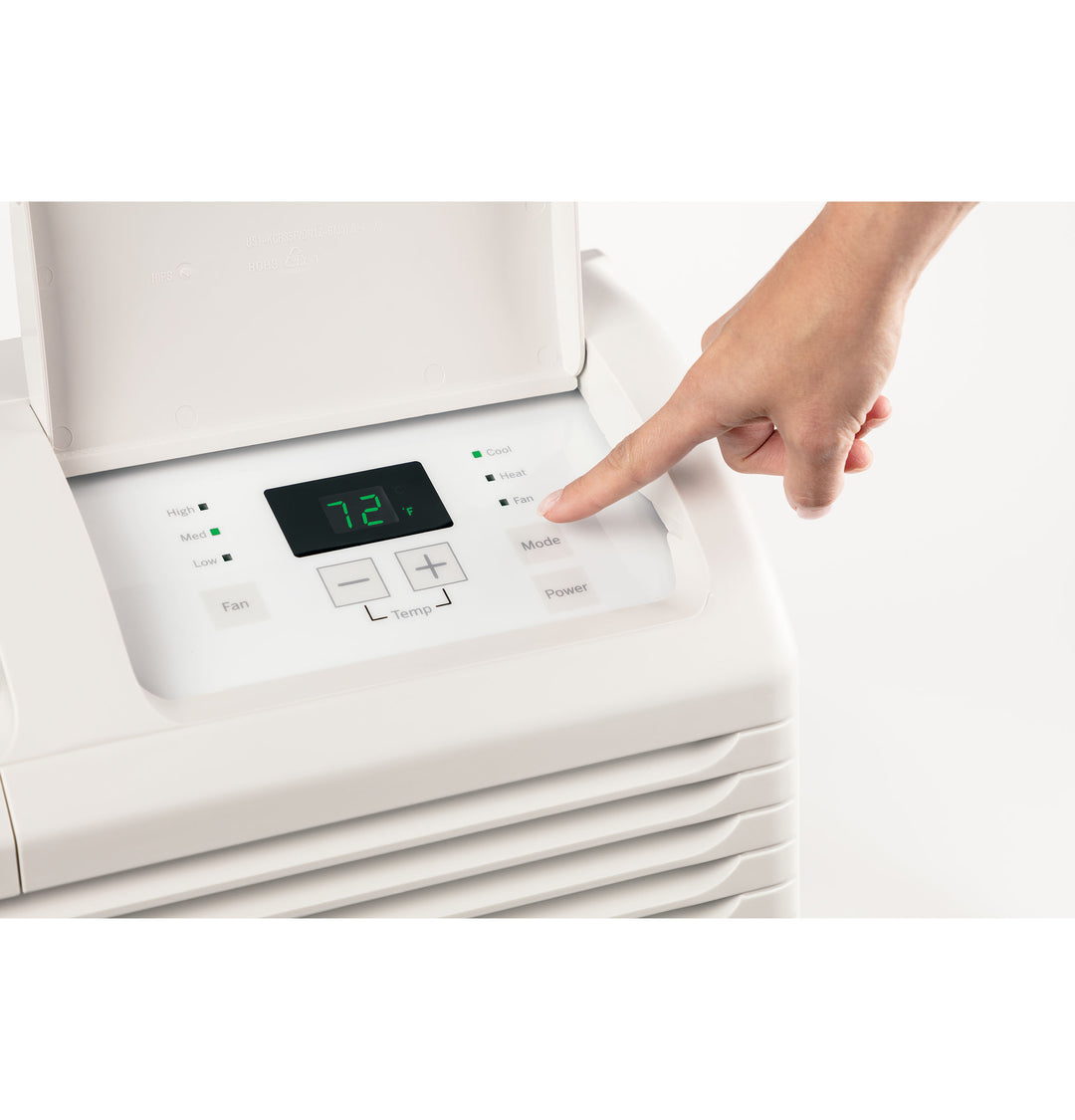

  • Intuitive displayAllow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
  • Power cord (LCDI) includedHotpoint PTACs come with everything needed for a quick and easy installation
  • Automatic emergency heatKeep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
  • Freeze and frost protectionAutomatic freeze and indoor frost control keep units operating in peak condition
  • Auto power recoveryIn case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
  • Self diagnosticsQuickly and easily identify service needs with a nine-point diagnostic code system
  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warrantyEnjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
  • Remote thermostat compatibility
  • Works with central desk control systems
  • Tangential fan for air flow and smooth sound

Specifications

Download Specifications

Control Type Electronic
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Temperature Range 62 - 86 F
Fan Speed Selections 3 Cooling
3 Fan Only
3 Heating
Unit Features Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Power Cord (LCDI) included
Remote Thermostat Compatibility
Auto Power Recovery Yes
Chassis Type Slide-In
Heat - Cool Yes
Manual Vent Control Hidden
Outdoor Vent / Exhaust Yes
Rotary Compressor Yes
Venting Features Concealed Manual Vent Control¶Vent Air Filter
"SmartFan" Fan Cycle Yes
Discharge Grille 2-position
Fan Motor 2
Heating System Electric Resistance

CAPACITY

CFM Indoor Fan High 334
Cooling EER (BTUH / Watt) 11.9
CFM Indoor Fan Low 236
CFM Indoor Fan Medium 280
Cooling BTUH (MAX) 7200.0 Btu
Cooling BTUH (MIN) 7000.0 Btu

APPEARANCE

Installation Through-the-Wall
Color Appearance White

WEIGHTS & DIMENSIONS

Overall Depth 21 in
Overall Height 16 in
Overall Width 42 in
Approximate Shipping Weight 124 lb
Net Weight 99 1/5 lb

POWER / RATINGS

Heating - Electric - Heater Watts 3535/2935
Heating - Electric - Heater Amps 15.3/13.7
Cooling - Amperes; F.L. - Cooling 2.7/2.9
Cooling - Watts 605/585
Cooling - Amperes 2.45/2.6
Voltage (MAX) 230.0 V
Voltage (MIN) 208.0 V

CLAIMS

208.0 V

WARRANTY

Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
