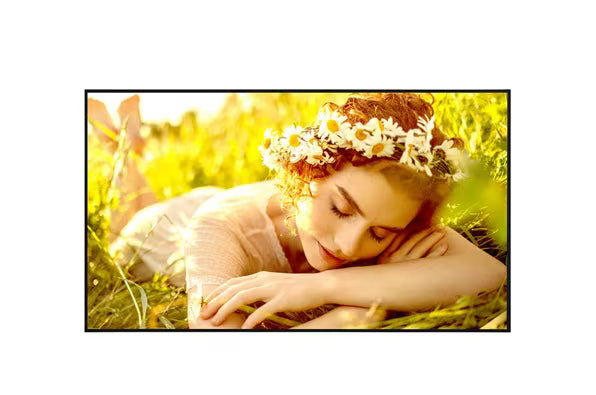

LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness
LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness
LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness
LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness
LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness
LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness

LG 43UL5Q-M UHD Digital SIgnage webOS Signage for 24/7 Operation and 500nit brightness

43UL5Q-M-LG

KEY FEATURES

  • Superb Picture Quality with Ultra HD Resolution
  • 24Hr Usage Scene (24 Hours / 7 Days)
  • Face Up/Down with Tilt Support
  • Even Bezel
  • High-Performance with webOS 6.1
32" 43" 49" 55" 65" 75" 86"
Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

43"

Screen Size

ADS

Display Technology

24/7

Run Time

500 nit

Brightness

3 Year

Warranty

      86UL5Q 75UL5Q 65UL5Q 55UL5Q 50UL5Q 43UL5Q 32UL5Q
Panel Screen Size 86” 75” 65” 55” 49” 43” 32"
Panel Technology ADS ADS ADS ADS VA ADS VA
Back Light Type Direct Direct Direct Direct Direct Direct Direct
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Native Resolution 3,840 × 2,160 (UHD) 3,840 × 2,160 (UHD) 3,840 × 2,160 (UHD) 3,840 × 2,160 (UHD) 3,840 × 2,160 (UHD) 3,840 × 2,160 (UHD) 1920 x 1080 (FHD)
Refresh Rate 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60Hz
Brightness (Typ.) 500 nits (Typ.) 500 nits (Typ.) 500 nits (Typ.) 500 nits (Typ.) 500 nits (Typ.) 500 nits (Typ.) 500 nits (Typ.)
Contrast Ratio 1,200:1 1,200:1 1,200:1 1,200:1 4,500:1 1,200:1 4,000:1 (Typ)
Dynamic CR 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1
Color Gamut DCI 80% DCI 80% DCI 80% DCI 80% DCI 80% DCI 80% 72% NTSC
Viewing Angle (H x V) 178 × 178 178 × 178 178 × 178 178 × 178 178 × 178 178 × 178 178 x 178
Color Depth (Number of Colors) Advanced 10 bit, 1.07 Billion Colors 1.07 Billon Colors (8 bit + FRC) 1.07 Billon Colors (8 bit + FRC) 10 bit, 1.07 Billon Colors 10 bit (D), 1.07 Billion Colors 1.07 Billon Colors (8 bit + FRC) 16.7 Million colors(8 bit-true)
Response Time 8 ms (G to G) 8 ms (G to G) 8 ms (G to G) 8 ms (G to G) 8 ms (G to G) 8 ms (G to G) 8ms (Typ.)
Surface Treatment (Haze) 1% 1% 1% 1% 25% 1% 25%
Operation Hours (Hours/Day) 24 / 7 24 / 7 24 / 7 24 / 7 24 / 7 24 / 7 24/7
Portrait / Landscape Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes
Connectivity Input HDMI (3, HDCP 2.2/1.4), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), USB 2.0 Type A (2) HDMI (3, HDCP 2.2/1.4), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), USB 2.0 Type A (2)
Output Audio, RS-232C Audio, RS-232C
Mechanical Bezel Color Black Black Black Black Black Black Black
Bezel Width 12.9 mm (Even) 12.9 mm (Even) 10.8 mm (Even) 10.8 mm (Even) 10.8 mm (Even) 10.7 mm (Even) 11.9mm Even
Weight (Head) 70.1 lbs. / 31.8 kg 53.1 lbs. / 24.1 kg 36.4 lbs. / 16.5 kg 26.5 lbs. / 12 kg 20.5 lbs. / 9.3 kg 16.8 lbs. / 7.6 kg 11.9 lbs. / 5.4 kg
Packed Weight 93.9 lbs. / 42.6 kg 69.7 lbs. / 31.6 kg 48.1 lbs. / 21.8 kg 33.9 lbs. / 15.4 kg 26.9 lbs. / 12.2 kg 21.4 lbs. / 9.7 kg 15.9 lbs. / 7.2 kg
Monitor Dimensions (W x H x D) 75.9 × 43.2 × 2.4 in.
1,926.6 × 1,098 × 60 mm 		66.2 × 37.8 × 2.3 in.
1,679.7 × 958.9 × 58.5 mm 		57.2 × 32.7 × 2.4 in.
1,452.9 × 829.2 × 59.7 mm 		48.6 × 27.8 × 2.3 in.
1,234.2 × 706.7 × 58.9 mm 		44.1 × 25.3 × 2.4 in.
1,120.2 × 641.4 × 59.9 mm 		37.9 × 21.9 × 2.3 in.
965 × 554.9 × 59.1 mm 		28.6 × 16.5 × 2.6 in.
725.2 x 420.1 x 65 mm
Carton Dimensions (W x H x D) 81.9 × 49.4 × 8.7 in.
2,080 × 1,255 × 220 mm 		73.8 × 45.1 × 6.9 in.
1,875 × 1,145 × 175 mm 		64.4 × 38.4 × 5.6 in.
1,635 × 976 × 141 mm 		54.3 × 32.4 × 4.7 in.
1,380 × 825 × 118 mm 		49.4 × 29.9 × 4.7 in.
1,255 × 760 × 118 mm 		42.1 × 25.4 × 4.4 in.
1,070 × 645 × 113 mm 		32.5 × 20.7 × 5.3 in.
825 x 525 x 135 mm
Handle No No No No No No No
VESATM  Standard Mount Interface 600 × 400 mm 400 × 400 mm 300 × 300 mm 300 × 300 mm 200 × 200 mm 200 × 200 mm 200 × 200 mm
Key Features Internal Memory (eMMC) 8GB, Wi-Fi & Bluetooth (Built-in), Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor,
Local Key Operation (Power On/Off Only), webOS 6.1, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, Screen Share, Video Tag (4, Max One HDMI Input), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Cisco Certification (TBD), Crestron Connected1, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC2, SI Server Setting, webRTC, Pro:Idiom
Environmental Conditions Operation Temperature 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) 0 °C to 40 °C (Portrait Scene
: 0 °C to 35 °C) 		0 °C to 40 °C (Portrait Scene
: 0 °C to 35 °C) 		0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity 10% to 80% 10% to 80% 10% to 80% 10% to 80% 10% to 80% 10% to 80% 10 % to 80 %
Power Power Supply AC 100-240 V ~, 50/60 Hz AC 100-240 V ~, 50/60 Hz AC 100-240 V ~, 50/60 Hz AC 100-240 V ~, 50/60 Hz AC 100-240 V ~, 50/60 Hz AC 100-240 V ~, 50/60 Hz AC 100-240V~,  50/60Hz
Power Type Built-in Power Built-in Power Built-in Power Built-in Power Built-in Power Built-in Power Built-In Power
Power Consumption Typ. / Max. 220 W / 330 W 188W / 268 W 155 W / 228 W 124 W / 190 W 115 W / 174 W 102 W / 160 W 44 W / 85 W
BTU (British Thermal Unit) 750.671B TU/Hr (Typ.), 1126.007 BTU/
Hr (Max.) 		641.483 BTU/Hr (Typ.), 914.453 BTU/Hr
(Max.) 		528.88 2 BTU/Hr (Typ.), 777.968 BTU/
Hr (Max.) 		423.106 BTU/Hr (Typ.),
648.307 BTU/Hr (Max.) 		392.396 BTU/Hr (Typ.),
593.713 BTU/Hr (Max.) 		348.038 BTU/Hr (Typ.),
545.943 BTU/Hr (Max.) 		150.13 BTU/Hr(Typ.),
290.03 BTU/Hr(Max.)
Smart Enegy Saving (70%) 154 W 131.6 W 108.5 W 86.8 W 80.5 W 71.4 W 31W
DPM 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Power off 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Sound Built-in Speakers 10 W × 2 10 W × 2 10 W × 2 10 W × 2 10 W × 2 10 W × 2 10 W × 2
Certification Safety CB CB CB CB CB CB CB / UL
EMC FCC Class “B” / CE FCC Class “B” / CE FCC Class “B” / CE FCC Class “B” / CE FCC Class “B” / CE FCC Class “B” / CE FCC Class “B” / CE
ERP / Energy Star N/A / Yes N/A / Yes Yes / Yes Yes / Yes Yes / Yes Yes / Yes N/A / Yes
ePEAT (US Only) Yes Yes Yes Yes Yes Yes Yes
Software Compatibility SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare3
Language English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
Accessory Basic Remote Controller, Power Cord, Regulation Book, Easy Setup Guide, Warranty Card, Phone to D-Sub9 Gender Remote Controller, Power Cord, Regulation Book, Easy Setup Guide, Warranty Card, Phone to D-Sub9 Gender
Special Feature Tilt (Face Up / Down) No / No No / No 15 degree / 15 degree 15 degree / 15 degree 15 degree / 15 degree 15 degree / 15 degree 15 degree / 15 degree
Conformal Coating (Power Board) Yes Yes Yes Yes Yes Yes Yes
Warranty 3 year limited 3 year limited 3 year limited 3 year limited 3 year limited 3 year limited 3 year limited

DOWNLOAD PDF SPECS

The UL5Q-M Series

The UL5Q series, with UHD resolution, enhances the realism
of colors and details in the content. Its wide viewing angle
offers clear visuals, while its 500-nit typ brightness vividly
showcases the content.

Key Features

Superb Picture Quality with Ultra HD Resolution

The UL5Q series, with UHD resolution, enhances the realism
of colors and details in the content. Its wide viewing angle
offers clear visuals, while its 500-nit typ brightness vividly
showcases the content.

Even Bezel Design

The UL5Q series features even bezels, enhancing the
aesthetic appeal of various spaces. These uniform bezels not
only facilitate easy installation but also transform standard
displays into elegant focal points.

High-Performance with LG webOS 6.1

LG webOS 6.1 is available on the UL5Q series for smooth
execution of multiple tasks. The LG webOS smart signage
platform enhances user convenience with an intuitive GUI*.

Adaptive Viewing Experience

Experience the flexibility with the UL5Q series’ up/down tilt
capability. Whether mounted high or low, the display can be
adjusted to eye level, offering viewer engagement regardless
of installation height. This versatility not only enhances spatial
efficiency but also provides visual comfort, delivering clear
information from various viewing angles.

Engineered for 24/7 Operation

Built for environments that never sleep, the UL5Q series
features panel technology that enables 24/7 operation.

Built-In Brightness Sensor

The UL5Q series’ front-mounted brightness sensor
automatically adjusts brightness to match various lighting
conditions, optimizing viewing quality and energy efficiency
without manual intervention. This adaptive feature offers
consistent display performance while also supporting power
optimization, delivering a visual experience that dynamically
responds to environmental changes.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.

Read more...

Call us at (866) 469-7111 for an unbiased, no obligation consultation.

  • VIP Pricing: Our volume grants us access to the best manufacturer pricing in the industry.
  • Service: We offer free, unbiased project consultation and a dedicated, experienced project manager.
  • Extras: We adapt to your project needs - KniTec can handle your warranty claims, installation, and content creation.
