Quick Specs
UR770H9
Series
4K UHD
Resolution
55 "
Screen Size
Direct-Lit LED
Display Technlogy
300 x 300
VESA
2 Year
Warranty
| MODEL | 75UR770H | 65UR770H | 55UR770H | 50UR770H | |||
| DISPLAY | Diagonal Size | 75" | 65" | 55" | 50” | ||
| Resolution | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | |||
| Backlight Unit Type | Direct | Direct | Direct | Direct | |||
| Brightness | 330 | 400 | 400 | 400 | |||
| Dynamic Contrast Ratio | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | |||
| Static Contrast Ratio | 1200:1 | 1200:1 | 1300:1 | 5000:1 | |||
| Response Time (G to G) | 8 ms | 8 ms | 14 ms | 19 ms | |||
| Refresh Rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz | |||
| Life Span | 30,000 Hours | 30,000 Hours | 30,000 Hours | 30,000 Hours | |||
| HDR 10 Pro | Yes | Yes | Yes | Yes | |||
| HDR HLG | Yes | Yes | Yes | Yes | |||
| BROADCASTING | Digital (Terrestrial,Cable,Satellite) |
ATSC / Clear QAM / VSB | ATSC / Clear QAM / VSB | ATSC / Clear QAM / VSB | ATSC / Clear QAM / VSB | ||
| Analog | NTSC | NTSC | NTSC | NTSC | |||
| Closed Caption | Yes | Yes | Yes | Yes | |||
| MPEG-2 / MPEG-4 H.264 Decoding |
Yes | Yes | Yes | Yes | |||
| IPTV Capable | Yes | Yes | Yes | Yes | |||
| AUDIO | Speaker System | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | 10W + 10W (2.0 ch) | ||
| AI Sound | Yes | Yes | Yes | Yes | |||
| One Touch Sound Tuning | Yes | Yes | Yes | Yes | |||
| LG Sound Sync | Yes | Yes | Yes | Yes | |||
| HOSPITALITY | Pro:Centric Data Streaming (IP & RF) |
Yes | Yes | Yes | Yes | ||
| HCAP (GEM / FLASH / HTML) |
GEM / HTML5 | GEM / HTML5 | GEM / HTML5 | GEM / HTML5 | |||
| Pro:Centric IP Return path | Yes | Yes | Yes | Yes | |||
| Multicast / Unicast ready | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | |||
| Pro:Centric webRTC | Yes | Yes | Yes | Yes | |||
| Pro:Centric Direct (HTML) | Yes | Yes | Yes | Yes | |||
| Pro:Centric Application (Java) |
Yes | Yes | Yes | Yes | |||
| Quick Menu Version | 4 | 4 | 4 | 4 | |||
| Pro:Idiom DRM (S/W, Mobile, Lite) | Yes | Yes | Yes | Yes | |||
| SMART FEATURES | Smart Home (Launcher Bar) |
Yes | Yes | Yes | Yes | ||
| Gallery Mode | Yes | Yes | Yes | Yes | |||
| Web Browser | Yes | Yes | Yes | Yes | |||
| Pre-loaded Apps | Yes | Yes | Yes | Yes | |||
| SDP Server Compatible | Yes | Yes | Yes | Yes | |||
| Magic Remote | Yes (MR18HA) | Yes (MR18HA) | Yes (MR18HA) | Yes (MR18HA) | |||
| SW Clock (World Clock / Alarm) |
Yes | Yes | Yes | Yes | |||
| Soft AP | Yes | Yes | Yes | Yes | |||
| Wi-Fi (802.11ac) | Yes | Yes | Yes | Yes | |||
| Screen Share (Miracast) | Yes | Yes | Yes | Yes | |||
| Smart Share (DLNA) | Yes | Yes | Yes | Yes | |||
| LG Connect (LG TV Plus | Yes | Yes | Yes | Yes | |||
| DIAL | Yes | Yes | Yes | Yes | |||
| Beacon | Yes | Yes | Yes | Yes | |||
| Bluetooth Sound Sync | Yes | Yes | Yes | Yes | |||
| Mobile Connection Overlay | Yes | Yes | Yes | Yes | |||
| Voice Recognition (Standalone Solution) |
Yes | Yes | Yes | Yes | |||
| IoT | Yes | Yes | Yes | Yes | |||
| OTHER FEATURES | First Use Wizard | Yes | Yes | Yes | Yes | ||
| USB Data Cloning | Yes | Yes | Yes | Yes | |||
| Wake on RF | Yes | Yes | Yes | Yes | |||
| WOL | Yes | Yes | Yes | Yes | |||
| Diagnostics | Yes (IP Remote) | Yes (IP Remote) | Yes (IP Remote) | Yes (IP Remote) | |||
| External Control Interface | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | Yes (MPI, RS-232C) | |||
| Simplink (HDMI-CEC) plus CEC-HTNG |
Yes (1.4) | Yes (1.4) | Yes (1.4) | Yes (1.4) | |||
| OTHER FEATURES | IR Signal from Receiver (Logic Low Pulses) |
MPI | MPI | MPI | MPI | ||
| IR Signal from Receiver (Logic High Pulses) |
RS-232C | RS-232C | RS-232C | RS-232C | |||
| Multi-code IR | Yes | Yes | Yes | Yes | |||
| Installer Menu | Yes | Yes | Yes | Yes | |||
| Lock Mode | Yes (Limited) | Yes (Limited) | Yes (Limited) | Yes (Limited) | |||
| Port Block | Yes | Yes | Yes | Yes | |||
| Welcome Screen | Yes | Yes | Yes | Yes | |||
| One Channel Map (LCM) | Yes | Yes | Yes | Yes | |||
| Instant ON | Yes | Yes | Yes | Yes | |||
| VLAN ID | Yes | Yes | Yes | Yes | |||
| RJP (Remote Jack Pack) Compatibility | HDMI (CEC) | HDMI (CEC) | HDMI (CEC) | HDMI (CEC) | |||
| Moving Picture Playback | Yes | Yes | Yes | Yes | |||
| Auto Off / Sleep Timer | Yes / Yes | Yes / Yes | Yes / Yes | Yes / Yes | |||
| Energy Saving mode | Yes | Yes | Yes | Yes | |||
| Motion Eye Care | Yes | Yes | Yes | Yes | |||
| Embedded b-LAN | Yes | Yes | Yes | Yes | |||
| NTP Sync Timer | Yes | Yes | Yes | Yes | |||
| Video Tag | Yes (2 Supported) | Yes (2 Supported) | Yes (2 Supported) | Yes (2 Supported) | |||

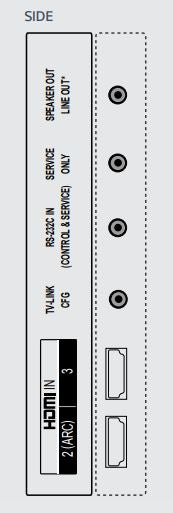

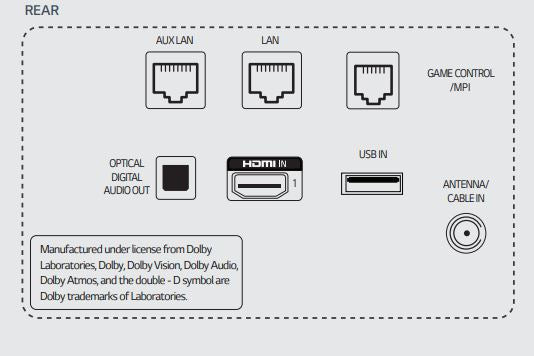

| INTERFACES | HDMI In | 3 (2.0) | 3 (2.0) | 3 (2.0) | 3 (2.0) | ||
| USB | 1 | 1 | 1 | 1 | |||
| RF In (Tuner) | 1 (dual b-LAN) | 1 (dual b-LAN) | 1 (dual b-LAN) | 1 (dual b-LAN) | |||
| Digital Audio Out (Optical) | 1 | 1 | 1 | 1 | |||
| RS-232C (D-Sub 9-Pin / 3.5mm Jack) |
3.5mm Jack (4-Pin) | 3.5mm Jack (4-Pin) | 3.5mm Jack (4-Pin) | 3.5mm Jack (4-Pin) | |||
| Speaker Out / Line Out (UR770H0 Models Only) |
3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | |||
| Audio Line Out (UR770H9 Models Only) |
3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | |||
| TV-LINK CFG | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | |||
| Service Only | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | 3.5mm Stereo Jack | |||
| RJ45 | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | 2 (Ethernet, Aux) | |||
| Game Control/MPI (RJ12) | Yes | Yes | Yes | Yes | |||
| MECHANICAL & POWER |
Stand Type | 1 pole - Fixed | 1 pole - Fixed | 1 pole - Swivel | 1 pole - Swivel | ||
| Front Color | Navy Blue (nearly black) | Navy Blue (nearly black) | Navy Blue (nearly black) | Navy Blue (nearly black) | |||
| VESA Compatible | 400x400 | 300x300 | 300x300 | 200x200 | |||
| Kensington Lock | Yes | Yes | Yes | Yes | |||
| Credenza / Security Screw Hole |
No | No | Yes | Yes | |||
| Lock Down Plate | No | No | Yes | Yes | |||
| Weight without Stand | 31.4 kg / 69.2 lbs | 21.5 kg / 47.4 lbs | 14.0 kg / 30.9 lbs | 12.1 kg / 26.7 lbs | |||
| Weight with Stand | 34.6 kg / 76.3 lbs | 22.9 kg / 50.5 lbs | 17.2 kg / 37.9 lbs | 15.3 kg / 33.7 lbs | |||
| Shipping Weight | 44.5 kg / 98.1 lbs | 28.9 kg / 63.7 lbs | 22.3 kg / 49.2 lbs | 18.6 kg / 41 lbs | |||
| Dimensions without Stand | 1678 x 964 x 59.9 mm 66.1 x 38 x 2.4 in |
1454 x 838 x 57.7 mm 57.2 x 33 x 2.3 in |
1235 x 715 x 57.5 mm 48.6 x 28.1 x 2.3 in |
1121 x 651 x 57.1 mm 44.1 x 25.6 x 2. in |
|||
| Dimensions with Stand | 1678 x 1045 x 378 mm 66.1 x 41.1 x 14.9 in |
1454 x 909 x 340 mm 57.2 x 35.8 x 13.4 in |
1235 x 777 x 303 mm 48.6 x 30.6 x 11.9 in |
1121 x 713 x 303 mm 44.1 x 28.1 x 11.9 in |
|||
| Shipping Dimensions | 1820 x 1205 x 228 mm 71.7 x 47.4 x 9 in |
1600 x 970 x 228 mm 63 x 38.2 x 9 in |
1360 x 860 x 207 mm 53.5 x 33.9 x 8.1 in |
1317 x 810 x 188 mm 51.9 x 31.9 x 7.4 in |
|||
| Bezel Width (L/R/T/B): On Bezel | 3.9/13.9/13.9/19.9 | 12.8/12.8/12.8/19.9 | 12.8/12.8/12.8/19.9 | 12.8/12.8/12.8/19.9 | |||
| Bezel Width (L/R/T/B): Off Bezel | 7.9/7.9/7.9/18.4 | 6.8/6.8/6.8/18.4 | 6.9/6.9/6.9/18.4 | 7.3/7.3/7.8/18.4 | |||
| Power Supply | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | 100-240 Vac, 50/60 Hz | |||
| Max Power Consumption | 225 W | 200 W | 165 W | 135 W | |||
| Typical Power Consumption |
110 W | 87 W | 72 W | 57 W | |||
| Standby Power Consumption |
< 0.5W | < 0.5W | < 0.5W | < 0.5W | |||
| WARRANTY & OTHER |
Standards | UL | UL | UL | UL | ||
| EMC Certification | FCC | FCC | FCC | FCC | |||
| Warranty | 2 Year Limited | 2 Year Limited | 2 Year Limited | 2 Year Limited | |||
| Accessories | S-Con Remote Control, Optional MMR Remote Control, 1.8m Power Cable (50/55/65" Detached), 2.0m Power Cable (75" Attached) | ||||||
