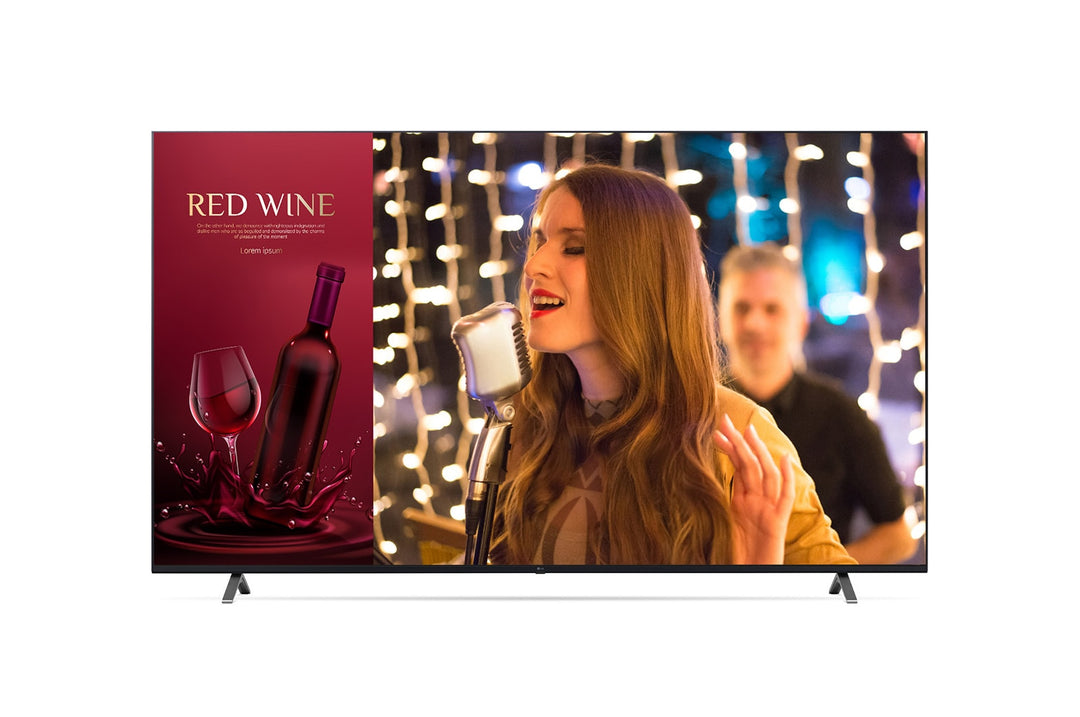

LG 75UR340C9 75" 4K UHD Signage Front View

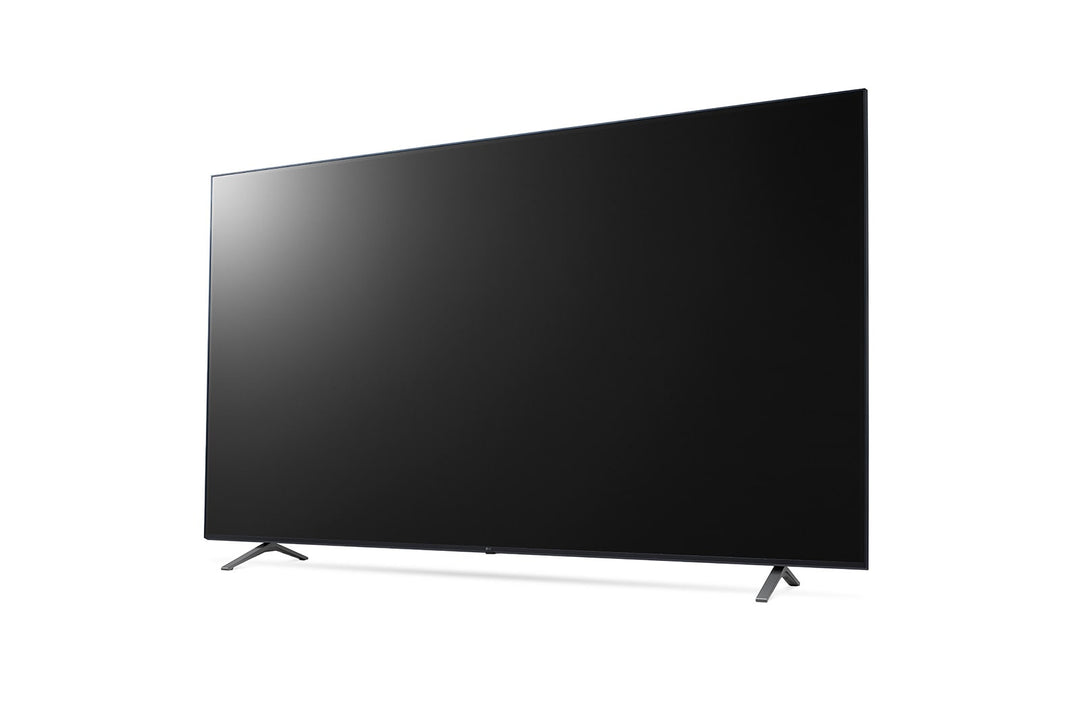

LG 75UR340C9 75" 4K UHD Signage Front View Alternate

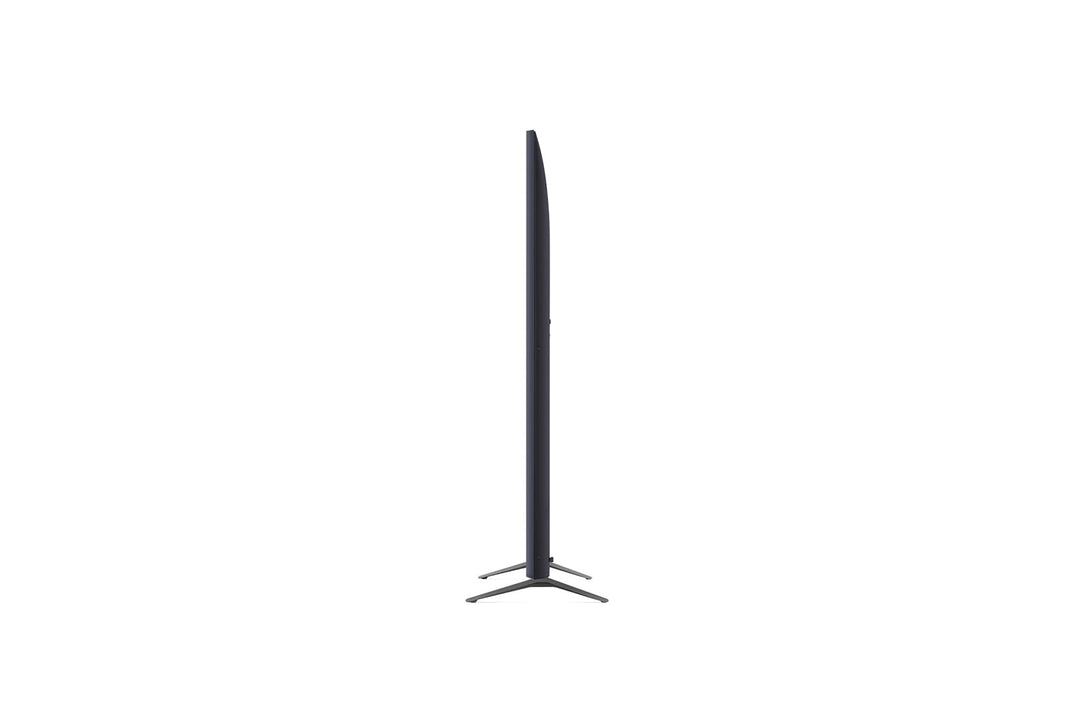

LG 75UR340C9 75" 4K UHD Signage Side View

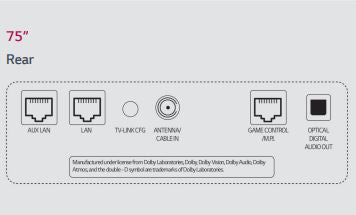

LG 75UR340C9 75" 4K UHD Signage Rear Inputs

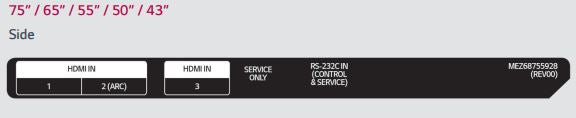

LG 75UR340C9 75" 4K UHD Signage Side Inputs
LG 75UR340C9 75" 4K UHD Signage Front View
LG 75UR340C9 75" 4K UHD Signage Front View Alternate
LG 75UR340C9 75" 4K UHD Signage Side View
LG 75UR340C9 75" 4K UHD Signage Rear Inputs
LG 75UR340C9 75" 4K UHD Signage Side Inputs

LG 75UR340C9 75" 4K UHD Signage for Live TV and Promotional Messaging, 330 nits, 16/7, with SuperSign Control and 3-Year Warranty

75UR340C9-LG

KEY FEATURES

  • 75” UHD (3,840x2160) with HDR for vivid colors & built-in speakers
  • 3 Year Limited Warranty, TAA Complaint & EPEAT
  • Easy to install with slim profile for a cohesive look
  • Designed for commercial use it can operate 16 hrs. a day, 7 days a week for 30,000 hrs.
  • Control 1 or 100 signage TVs with LG’s SuperSign Software (purchased separately)
  • Great for a variety of businesses, including hotels, retail, corporate & more
43" 50" 55" 65" 75" 86"

Model Specifications

4K UHD

Resolution

75"

Screen Size

Direct-Lit LED

Display Technlogy

16/7

Run Time

330 nit

Brightness

3 Year

Warranty

MODEL 86UR340C9UD 75UR340C9UD 65UR340C9UD 55UR340C9UD 50UR340C9UD 43UR340C9UD
DISPLAY Diagonal 86" 75" 65" 55" 50" 43"
Resolution 3840 X 2160 (UHD) 3840 X 2160 (UHD) 3840 X 2160 (UHD) 3840 X 2160 (UHD) 3840 X 2160 (UHD) 3840 X 2160 (UHD)
Brightness 330 nits 330 nits 400 nits 400 nits 400 nits 300 nits
Dynamic Contrast Ratio (Dynamic MCI (Hz)) 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1 1,000,000:1
Static (Panel) Contrast
Ratio		 1200:1 1200:1 1200:1 1300:1 5000:1 1200:1
Response Time
(G to G)		 5 ms 8 ms 8 ms 14 ms 18 ms 8 ms
Refresh Rate 120 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Life span 30,000 hours 30,000 hours 30,000 hours 30,000 hours 30,000 hours 30,000 hours
HDR_HDR 10 Pro Yes Yes Yes Yes Yes Yes
HDR_HLG Yes Yes Yes Yes Yes Yes
AUDIO Built-in Speakers 10W + 10W 10W + 10W 10W + 10W 10W + 10W 10W + 10W 10W + 10W
Speaker System 2.0 ch 2.0 ch 2.0 ch 2.0 ch 2.0 ch 2.0 ch
LG Sound Sync
(Bluetooth Required)		 Yes Yes Yes Yes Yes Yes
FEATURES Broadcasting System ATSC, Clear  QAM, Analog NTSC ATSC, Clear  QAM, Analog NTSC ATSC, Clear  QAM, Analog NTSC ATSC, Clear  QAM, Analog NTSC ATSC, Clear  QAM, Analog NTSC ATSC, Clear  QAM, Analog NTSC
SW Clock (World
Clock / Alarm)		 Yes Yes Yes Yes Yes Yes
HDMI-ARC ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2 ARC, HDMI2
USB Cloning Yes Yes Yes Yes Yes Yes
WOL Yes Yes Yes Yes Yes Yes
SNMP Yes Yes Yes Yes Yes Yes
Self Diagnostics (USB) Yes Yes Yes Yes Yes Yes
SI Compatible Protocol TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner TVLink Tuner
HTNG-CEC Yes Yes Yes Yes Yes Yes
Simplink (HDMI-CEC) Yes (1.4) Yes (1.4) Yes (1.4) Yes (1.4) Yes (1.4) Yes (1.4)
IR Out Yes (RS-232C) Yes (RS-232C) Yes (RS-232C) Yes (RS-232C) Yes (RS-232C) Yes (RS-232C)
Multi-code  IR Yes Yes Yes Yes Yes Yes
Hotel Mode / PDM / Installer Menu Yes Yes Yes Yes Yes Yes
Lock mode Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited) Yes (Limited)
Welcome Video Yes Yes Yes Yes Yes Yes
Welcome Screen
(Splash Image)		 Yes Yes Yes Yes Yes Yes
Insert Image Yes Yes Yes Yes Yes Yes
RJP (remote jack pack) Compatibility Teleadapt/Guestlink
(HDMI CEC)		 Teleadapt/Guestlink
(HDMI CEC)		 Teleadapt/Guestlink
(HDMI CEC)		 Teleadapt/Guestlink
(HDMI CEC)		 Teleadapt/Guestlink
(HDMI CEC)		 Teleadapt/Guestlink
(HDMI CEC)
USB Auto playback Yes Yes Yes Yes Yes Yes
Moving Picture Playback (SD/HD/Plus HD) Yes Yes Yes Yes Yes Yes
Auto Off / Sleep Timer Yes Yes Yes Yes Yes Yes
Energy Saving mode Yes Yes Yes Yes Yes Yes
Motion Eye Care Yes Yes Yes Yes Yes Yes
Crestron Compatibility Yes Yes Yes Yes Yes Yes
DPM (Digital Power management) Yes Yes Yes Yes Yes Yes
Time scheduler Yes Yes Yes Yes Yes Yes
RTC (Real Time Clock) Yes Yes Yes Yes Yes Yes
NTP sync timer Yes (Clock Setup) Yes (Clock Setup) Yes (Clock Setup) Yes (Clock Setup) Yes (Clock Setup) Yes (Clock Setup)
SuperSign Control Yes Yes Yes Yes Yes Yes
CONNECTIVITY HDMI 2.0 In Yes (x3) Yes (x3) Yes (x3) Yes (x3) Yes (x3) Yes (x3)
USB In Yes Yes Yes Yes Yes Yes
RF In Yes Yes Yes Yes Yes Yes
Digital Audio Out
(Optical)		 Yes Yes Yes Yes Yes Yes
RS-232C 3.5mm (4 pole) 3.5mm (4 pole) 3.5mm (4 pole) 3.5mm (4 pole) 3.5mm (4 pole) 3.5mm (4 pole)
LG SVC only 3.5mm 3.5mm 3.5mm 3.5mm 3.5mm 3.5mm
RJ45 (LAN) Yes Yes Yes Yes Yes Yes
MECHANICAL Color Navy Blue Navy Blue Navy Blue Navy Blue Navy Blue Navy Blue
(Almost Black) (Almost Black) (Almost Black) (Almost Black) (Almost Black) (Almost Black)
VESA Compatible 600 x 400 400 x 400 300 x 300 300 x 300 200 x 200 200 x 200
Kensington Lock Yes Yes Yes Yes Yes Yes
Weight without Stand 99.6 lbs / 45.2 kg 69.2 lbs / 31.4 kg 47.4 lbs / 21.5 kg 30.9 lbs / 14.0 kg 25.8 lbs / 11.7 kg 19.4 lbs / 8.8 kg
Weight with Stand 101.2 lbs / 45.9 kg 70.8 lbs / 32.1 kg 48.1 lbs / 21.8 kg 31.3 lbs / 14.2 kg 26.2 lbs / 11.9 kg 19.6 lbs / 8.9 kg
Shipping Weight 128.8 lbs / 58.4 kg 91.5 lbs / 41.5 kg 61.3 lbs / 27.8 kg 41.9 lbs / 19.0 kg 32.2 lbs / 14.6 kg 24.3 lbs / 11.0 kg
Size without Stand 75.9 x 43.5 x 2.4 in 66.1 x 38.0 x 2.4 in 57.2 x 33.0 x 2.3 in 48.6 x 28.1 x 2.3 in 44.1 x 25.6 x 2.2 in 38.1 x 22.2 x 2.2 in
1927 x 1104 x 59.9 mm 1678 x 964  x 59.9 mm 1454  x 838 x 57.7 mm 1235  x 715 x 57.5 mm 1121  x 651 x 57.1 mm 967 x 564 x 57.1 mm
Size with Stand 75.9 x 45.9 x 14.3 in 66.1 x 40.4 x 14.3 in 57.2 x 35.4 x 10.7 in 48.6 x 30.4 x 9.1 in 44.1 x 27.9 x 9.1 in 38.1 x 24.5 x 8.5 in
1927 x 1167 x 362  mm 1678 x 1027 x 362  mm 1454  x 899 x 271 mm 1235  x 772 x 232 mm 1121  x 708 x 232 mm 967 x 622 x 216 mm
Size in Shipping 83.3 x 47.8 x 9.0 in 74.0 x 43.9 x 7.9 in 63.0 x 38.2 x 6.8 in 53.5 x 31.9 x 6.4 in 47.8 x 30.5 x 6.0 in 41.5 x 26.0 x 5.6 in
2115 x 1215 x 228  mm 1880 x 1115 x 200  mm 1600  x 970 x 172 mm 1360  x 810 x 162 mm 1215  x 775 x 152 mm 1055  x 660 x 142 mm
Bezel Width (L/R/T/B): On Bezel 15.9 /15.9 /15.9 / 13.9 /13.9 /13.9 / 12.8 /12.8/ 12.8 / 12.8 /12.8 /12.8 / 12.8 /12.8 /12.8 / 12.8 /12.8 /12.8 /
19.9 mm 19.9 mm 19.9 mm 19.9 mm 19.9 mm 19.9 mm
Bezel Width (L/R/T/B): Off Bezel 6.9 / 6.9 / 6.9 / 7.9 / 7.9 / 7.9 / 6.8 / 6.8 / 6.8 / 6.9 / 6.9 / 6.9 / 7.3 / 7.3 / 7.8 / 6.9 / 6.9 / 6.9 /
18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm
POWER Power Supply 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz 120 Vac, 50/60 Hz
(Voltage, Hz)
Max Power 339 W 228 W 174.4 W 165 W 144.8 W 119.6 W
Consumption
Typical Power 313 W 202 W 148.3 W 135.3 W 118.8 W 97.2 W
Consumption
Standby Power Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W Less than 0.5W
Consumption
WARRANTY Warranty 3 Year Limited 3 Year Limited 3 Year Limited 3 Year Limited 3 Year Limited 3 Year Limited
& OTHER     UPC ######### ######### ######### ######### ######### #########
Country of Origin Mexico Mexico Mexico Mexico Mexico Mexico
FCC (Regulatory) Yes Yes Yes Yes Yes Yes
UL (Certification) Yes Yes Yes Yes Yes Yes
EPEAT Yes Yes Yes Yes Yes Yes
(Environmental)
ISTA6 (Packaging) Yes Yes Yes Yes Yes Yes
Accessories Chromecast anti-theft cover (optional), RS232 9-pin to 3.5mm adapter,
2m power cable (attached), remote control (L-Con)		 Chromecast anti-theft cover (optional), RS232 9-pin to 3.5mm adapter,
1.8m power cable (detached), remote control (L-Con)
Download Specs PDF

The UR340C9 Series

With the ultra HD resolution, the UR340C Series makes the color and details vivid and realistic. The 4K Upscaler automatically upgrades FHD content to UHD quality through the upscaling process. Moreover, the UR340C series can deliver more intense colors and deep black by supporting HDR10.

Key Features

HIGH PICTURE QUALITY

With the ultra HD resolution, the UR340C Series makes the color and details vivid and realistic. The 4K Upscaler automatically upgrades FHD content to UHD quality through the upscaling process. Moreover, the UR340C Series can deliver more intense colors and deep black by supporting HDR10.

SPACE-FITTING SLIM DESIGN

The UR340C Series is thinner than its predecessor the US340C. This space saving design is easy to install and blends nicely with its surroundings.

CUSTOMIZABLE SCREEN

The UR340C Series allows for a variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.

COMPATIBILITY WITH AV CONTROL SYSTEMS

The UR340C series has been certified Crestron Connected®, which means it has a high level of compatibility with professional AV controls. This results in virtually seamless integration and automated control, boosting business management efficiency.

USB AUTO PLAYBACK

USB data cloning makes managing multiple displays efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.

QUICK & EASY SIGNAGE CONTROL WITH LG SUPERSIGN CONTROL

SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
