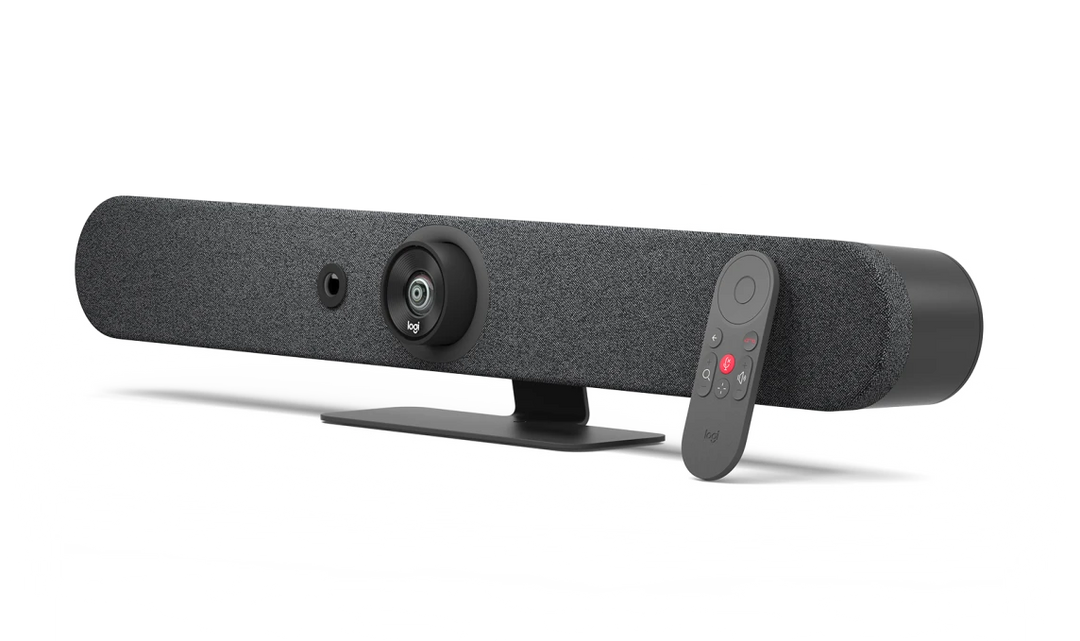

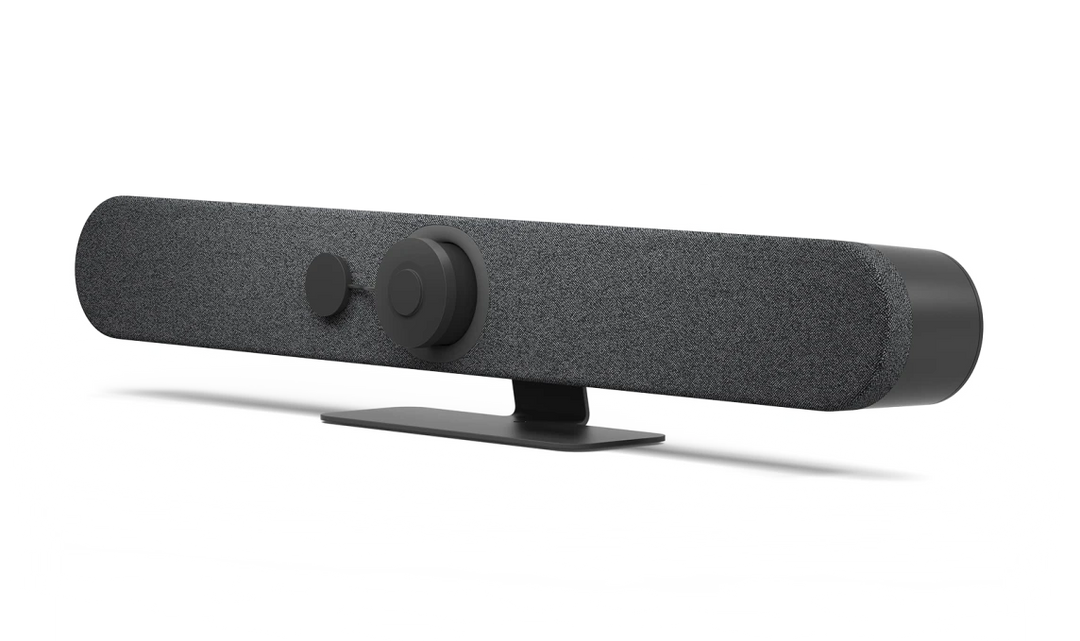

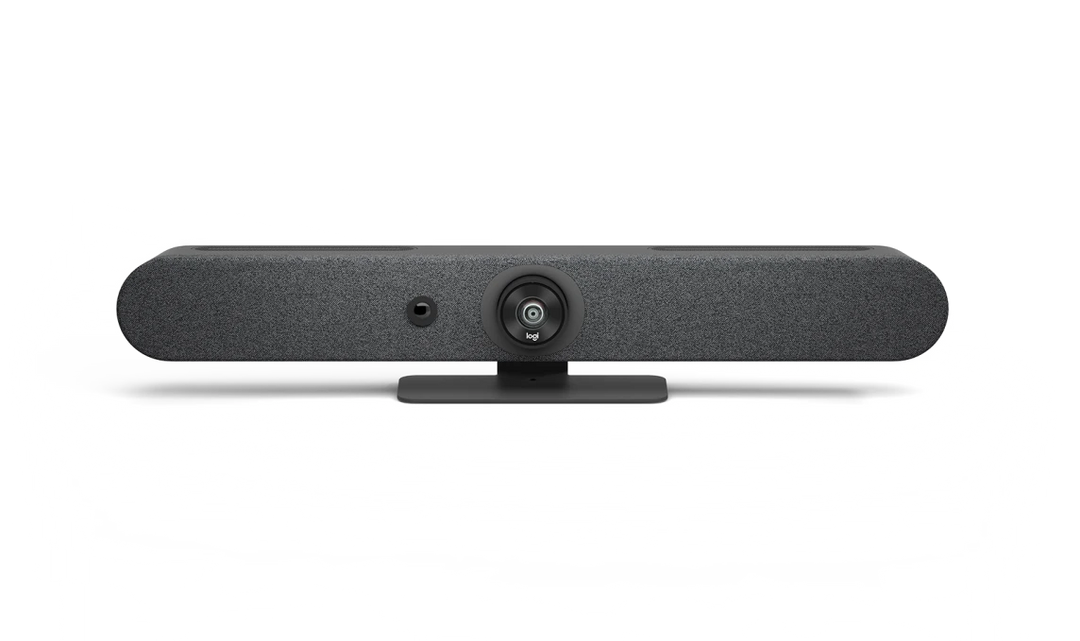

Logitech Rally Bar Mini for Small to Medium Rooms in Graphite

An innovative dual-camera system with optical zoom and an AI Viewfinder delivers fluid, cinematic video in small and medium rooms.

SOUNDS AWESOME

Rally Bar Mini’s advanced audio engineering delivers rich, natural sound and makes sure every voice is clearly heard.

WORKS WITH YOUR PREFERRED PLATFORM

Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution, including Microsoft Room, Zoom Room, Google Meet, and Ring Central.

Camera

• Resolution: 0.71 in (18 mm) key pitch
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80.7°
• Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Microphone

• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 23 ft (7m)
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

Speakers

• Woofer Speaker

  • Driver: 2.7 in (70 mm)
  • Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Rated Power: 8W
  • THD: 1kHz <2% at 1W
  • Speaker Sampling Rate: 48KHz
  • Impedance: 4 Ohms




  Midrange Speakers

  • Drivers: 0.08 x 1.69in (2x 43 mm)
  • Sensitivity: 84 dB SPL @ 1W/1M
  • Rated Power: 4W
  • THD: 1kHz <2% at 1W
  • Speaker Sampling Rate: 48KHz
  • Impedance: 4 Ohms
