Name: Samsung OH55F 55" FHD High Brightness Outdoor Digital Signage Display, 2500 Nits, 24/7, 3 Year Warranty
Brand: Samsung
SKU: OH55F-SAMSUNG
Availability: OutOfStock

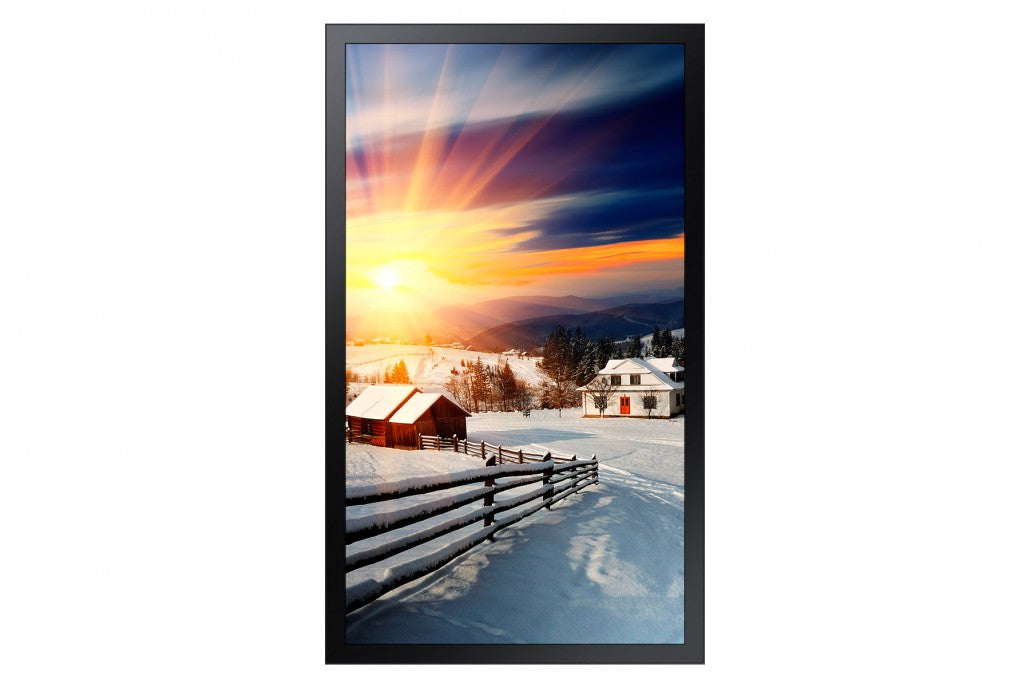

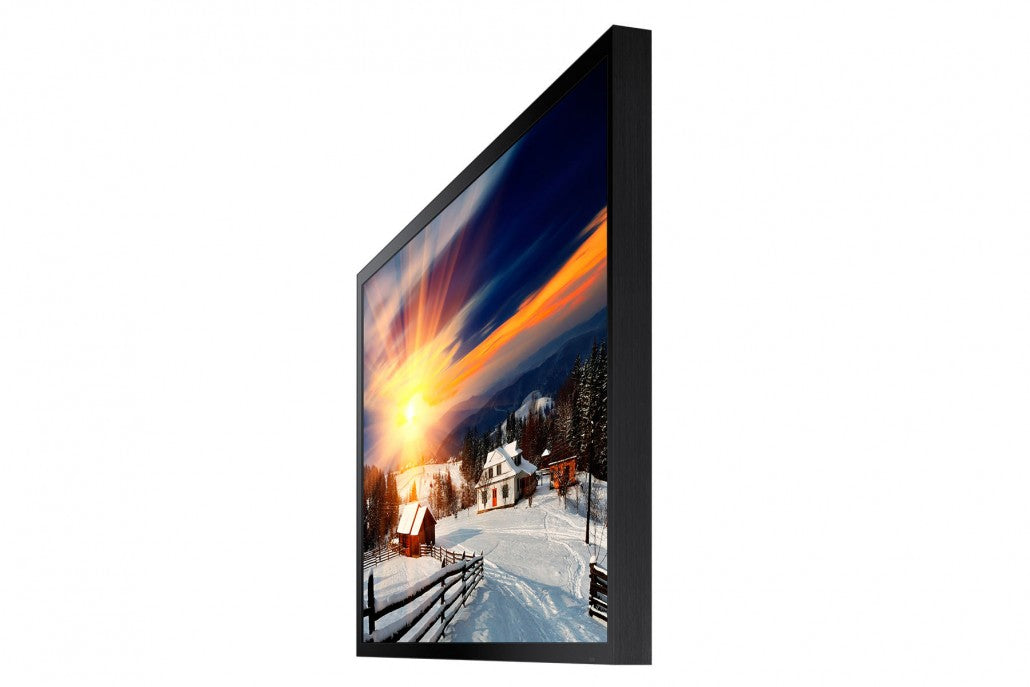

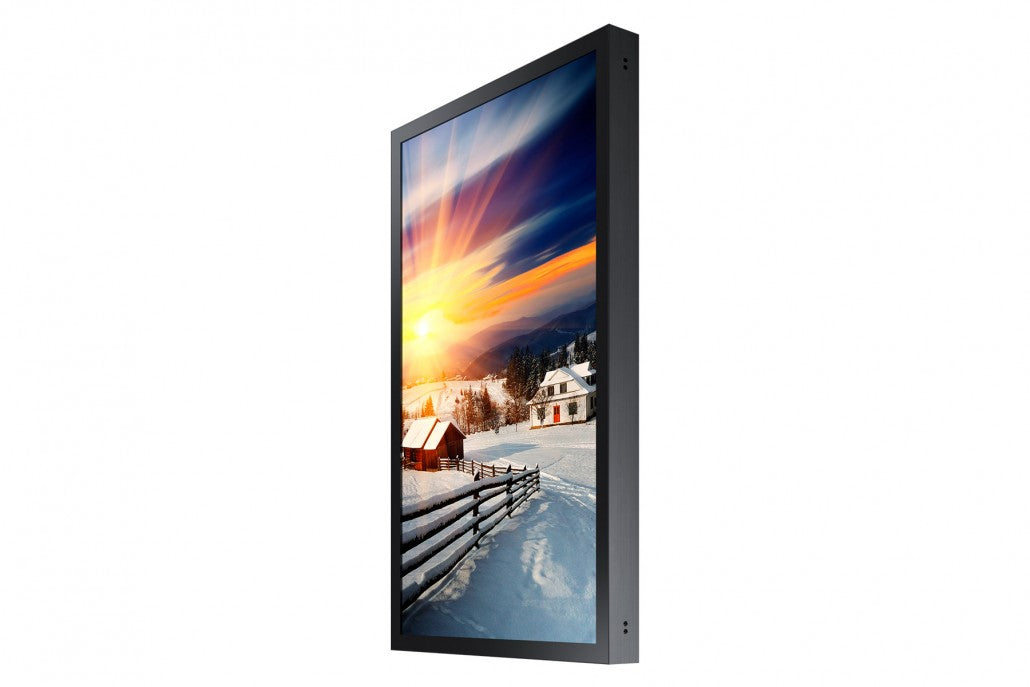

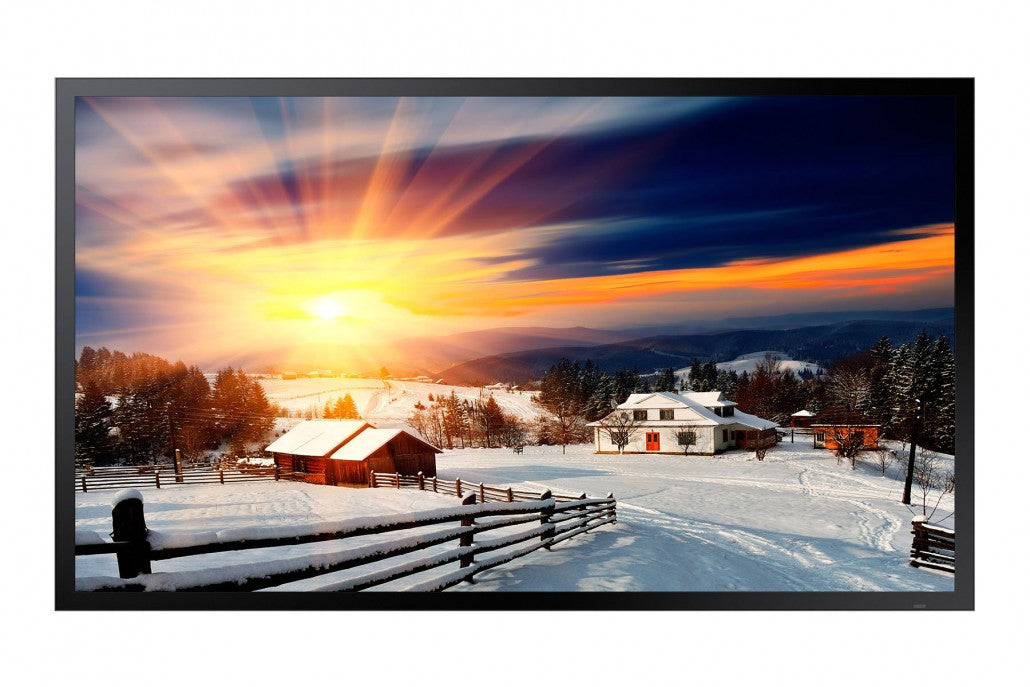

Samsung OH55F 55" FHD High Brightness Outdoor Digital Signage Display, 2500 Nits, 24/7, 3 Year Warranty

KEY FEATURES

Outdoor

High Brightness

24/7 operation

MagicInfo S4 powered by Tizen

Quad Core CPU

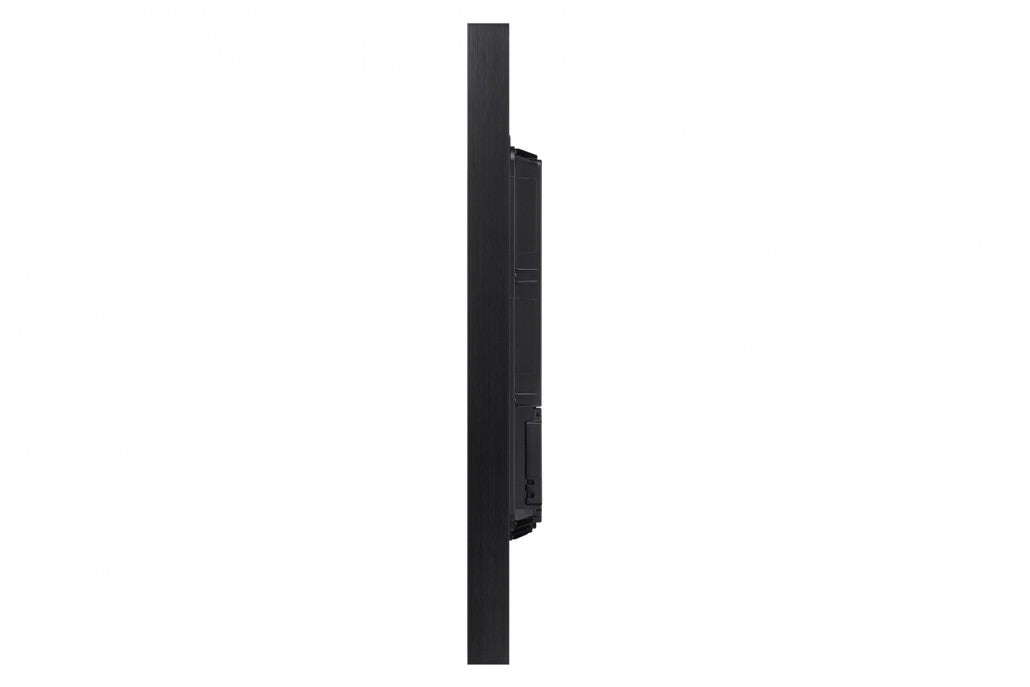

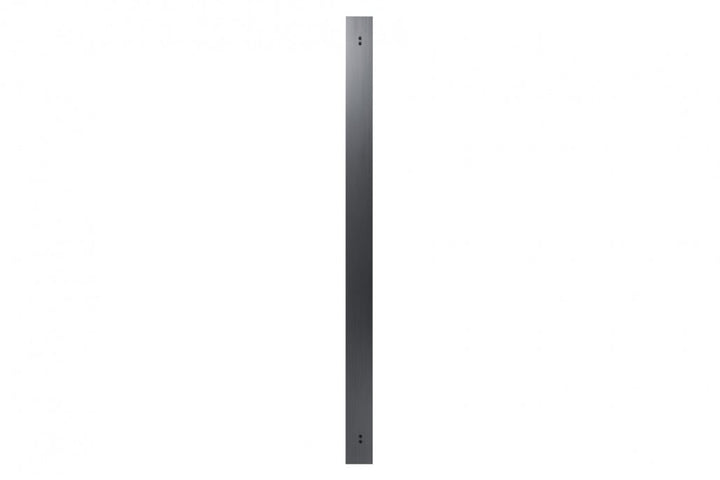

All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection

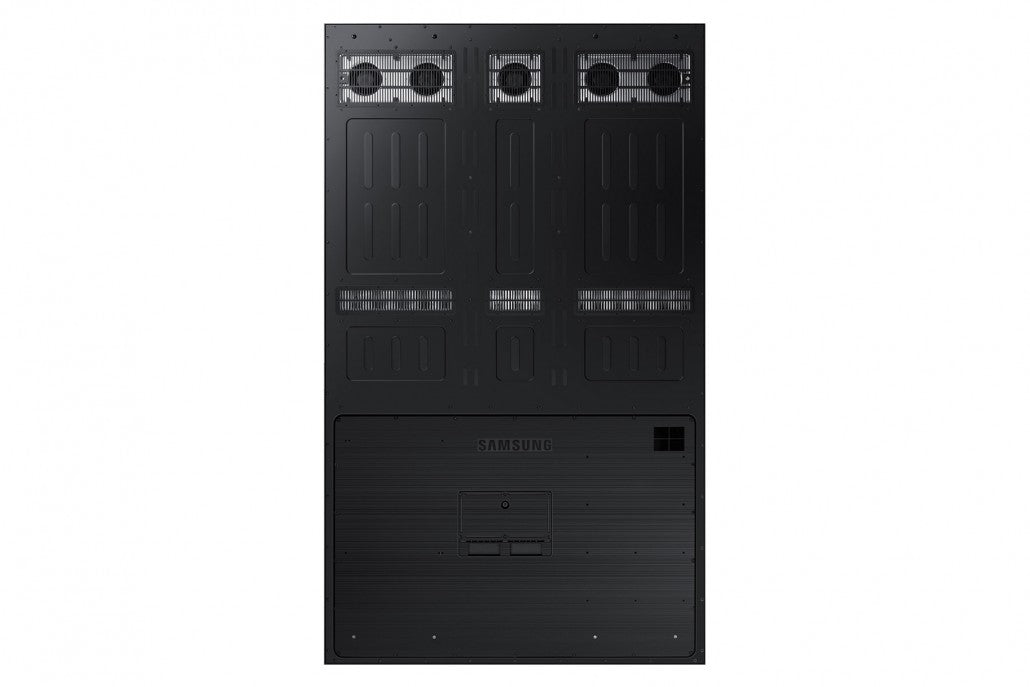

A filterless self-cooling system enabling easy maintenance and reduced TCO
Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
An advanced content management solution via SSSP 4.0 powered by TIZEN

DATASHEET

170717_OHF Datasheet_web

Featuring a slim 85mm-depth display and an embedded power box, Samsung OHF Series have been built to ensure durability and flexibility

MANUALS

OH85F_EU_WebManual_Eng-00_20161123.0

OH85F_EU_WebManual_Fre-00_20161124.0

OH85F_EU_WebManual_Spa-00_20161124.0

DRAWING

OHF 85inch SET DIMENSION

QSG

OHF_46-55_NA_QSG_BN68-08194B-01_170706.0

46" 55" 75" 85"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

55"

Screen Size

120Hz E-LED BLU

Display Technlogy

2500 nit

Brightness

3 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size 55″	Type S-VA	Resolution 1920*1080 (Full HD)	Pixel Pitch(mm) 0.63mm(H) X 0.63mm(V)
Active Display Area(mm) 1209.60(H) x 680.40(V)	Brightness(Typ.) 2500 nit	Contrast Ratio 5000:1	Viewing Angle(H/V) 178:178
Response Time(G-to-G) 6ms	Display Colors 8 bit – 16.7M	Color Gamut 72%	Haze 0%
DISPLAY
Dynamic C/R 100,000:1	H-Scanning Frequency 108 ~ 139.5 kHZ	V-Scanning Frequency 96 ~ 123 Hz	Maximum Pixel Frequency 297MHz
SOUND
Speaker Type N/A
CONNECTIVITY INPUT
RGB N/A	Video HDMI 1.4 (2), HDBaseT(LAN Common)	HDCP HDCP 2.2	Audio N/A USB USB 2.0 x 1
CONNECTIVITY OUTPUT
RGB N/A	Video N/A	Audio Stereo Mini Jack	Power Out N/A
External Control RS232C (In/Out), RJ45(In/Out), HDBaseT	External Sensor N/A	Tuner N/A
POWER
Type Internal	Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h] 554	Typical[W/h] W/W(EU) 193 US/KOR/Etc. 440 ※ Etc: CHINA, TAIWAN, BRA, CIS	BTU(Max) 1,889	Sleep mode 0.5W Off mode 0.5W
MECHANICAL SPECS
Dimension (mm) Set 1260.6 x 731.4 x 85.0 mm	Dimension (mm) Package 1358 x 845 x 230 mm
Weight (kg) Set 52.6Kg	Weight (kg) Package 58.1Kg
VESA Mount (mm) N/A	Mounting Hole 1186 x 560 (Basic) 1200 x 400 (VESA Bracket Option)	Protection Glass Yes (5T Tempered Glass)	Stand Type N/A
Media Player Option Type N/A	Bezel Width (mm) 24.9 / 24.9 / 24.9 / 24.9 mm
OPERATION
Recommended Usage Hours 24/7	Operating Temperature -30.0 ℃ ~ 50.0 ℃	Humidity 10.0 % ~ 80.0 %	IP Certificate IP56
FEATURE
Key Features Power-box Integrated, IP56 Outdoor, Built-in MagicInfo Player S4, SSSP 4.0	Special Features IP56 Certified for Simple Enclosure Outdoor, Protection Glass(IK-10 Level, Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock
INTERNAL PLAYER
Processor Cortex-A12 1.3GHz Quad Core CPU	On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB	Clock Speed 1.3GHz CPU Quad	Main Memory Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine – Up to 3840x2160p. 32bpp – Supports OpenGL ES	Storage (FDM) 8GB (3.75GB Occupied by O/S, 4.25GB Available, )	Multimedia Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.	IO Ports USB 2.0 Operating System Samsung Proprietary OS(VDLinux)
CERTIFICATION
Safety CB : IEC60950-1/EN60950-1 (EN) UL : cUL60950-1 (GO)	EMC CE : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 (EN) FCC : Part 15, Subpart B Class A (GO)
ACCESSORY
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries	Optional Stand N/A	Optional Mount N/A	Optional Specialty N/A
MEDIA PLAYER
Media Player N/A

Download Specs PDF

The OH85F Series

The Samsung OH75F is a completely integrated, self-contained outdoor digital signage TV that is certified to withstand the elements and provide excellent visibility around the clock, in any light. They are fully equipped for outdoor placements and feature an innovative cooling system so there’s no need for a supplemental heating or air conditioning unit. All in an ultra-slim design with an embedded power box and durable Magic Glass that protects against vandalism and graffiti.

Fully integrated, self-contained outdoor display with IP56 certification for use in heat, cold, rain, snow and dust
High brightness display optimized for visibility in bright ambient light, even while wearing polarized sunglasses
Reliable 24/7 operation with a simple solution for remote content management
Built to handle extreme temperatures with a self-cooling system and protected from vandalism with tempered Magic Glass

Features

OUTDOOR SIGNAGE WITH SIMPLIFIED INSTALLATION AND UPKEEP, PLUS AN ALL-ENCOMPASSING ARRAY OF PRE-ASSEMBLED FEATURES

The Samsung OH75F outdoor digital signage TV is conveniently and easily installed, designed and operated with a thin, all-in-one solution, which comes in a package which includes ingress protection, anti-reflection technology, an embedded power box, vandalism protection and a highly efficient cooling system. In addition, the embedded power box helps to condense operational components to the point where an ultra slim depth of 85mm can be attained, while the functionality of embedded network hub and Wi-Fi allow for simple connection and easy installation.

ROBUST IK10* LEVEL OF ENDURANCE AGAINST EXTERNAL IMPACTS

Advanced display protection is provided through the 5 mm (0.19 in.) tempered Magic Glass featuring durability that is IK10-certified (European strength test), further referencing its robust level of strength that can endure external impacts. In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.
*IK rating refers to the degree of resistance against external impacts on a scale of 0 to 10, where 10 indicates the highest level of protection.
* Dual Protection Glass can be applied for stronger resistance if required.

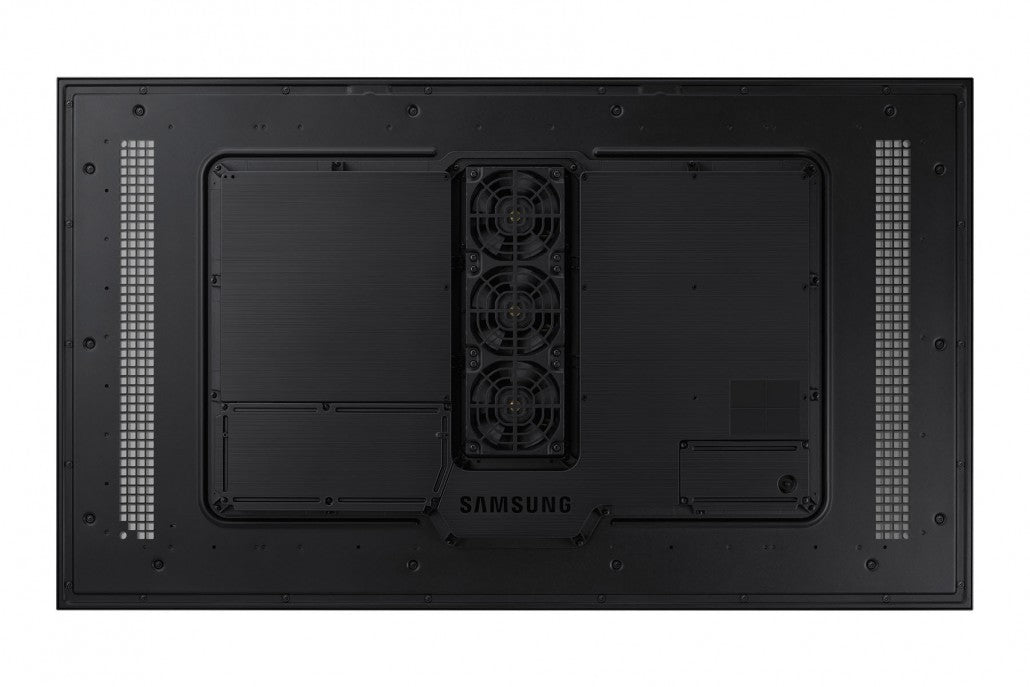

POSSESSING A SELF-COOLING SYSTEM WITH NO NEED FOR FILTER OR MAINTENANCE

The Samsung OH75F outdoor digital signage TV comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.

CAPTIVATE AUDIENCES WITH EXCELLENT VISIBILITY

• High Visibility
The Samsung OH85F features innovative Magic Glass, TUV Certified Image Quality and an Auto Brightness Sensor to optimize brightness in order to optimally convey messaging to virtually any viewer. These powerful outdoor digital signage TV also feature circular polarizing technology that eliminates display blindness caused by polarized sunglasses. The Samsung OH75F captivates viewers with superior messaging clarity delivered with high 2,500 nit brightness and 5,000:1 high contrast ratio in all inches above 24.
• Reflection Prevention
Greater content visibility is achieved under a combination of high brightness, lower reflection and high contrast ratio. The Magic Glass of the OHF Series that is in front of the displays’ LCD panels removes the protection glass reflection, making the displayed images richer and clearer under direct sunlight.

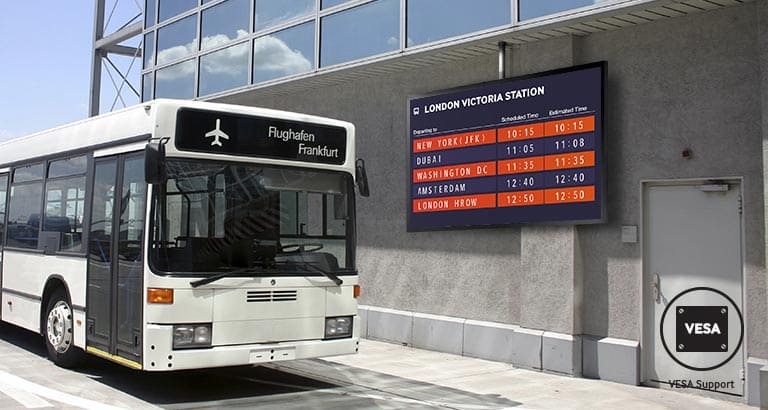

OPERATE RELIABLY IN VIRTUALLY ANY ENVIRONMENT

To deal with dust, moisture and other environmental variables that can damage your outdoor signage and impede operation, the Samsung OH85F ensures a high level of ingress defense with IP56 level protection that extends throughout the entire outdoor display.
As heat is a major factor due to outdoor signage being exposed to sunlight, operation of the Samsung OH75F has been made possible in temperatures that range from -30°C (-22°F) to 50°C (122°F) through a self-cooling system, allowing for a level of durability that can sustain 24/7 operations while negating the need for additional air conditioning systems.

OFFERING ROBUST OPTIONS FOR CONTENT CREATION, MANAGEMENT TOOLS

Samsung’s MagicInfo Player S4 empowers users with a new graphic engine applied to their signage that boosts the overall display performance while ensuring seamless transition of content. It also operates as an advanced content management solution that can allow you to play media files, set and edit media playback schedules, and much more. MagicInfo Player S4 is robust enough to enable large organizations to manage multiple digital signage through an integrated single server and also remotely monitor and manage it from a centralized location.
