Optoma W504 Bright and Versatile ProScene Projector

Designed for professional installation environments, the powerful high-specification Optoma W504 projector boasts a brightness of 5,000 lumens and features multiple digital connection options, with two HDMI inputs on rear and one hidden HDMI for the optional HDCast Pro dongle. For more complex installations, the W504 projector is equipped with a large zoom range, vertical lens shift and a built-in geometric adjustment feature – ideal for uneven walls or where a projector placement is awkward and needs to be installed at an angle.

KEY FEATURES

Installation flexibility – Vertical lens shift and 1.6x zoom
5000 lumens, WXGA resolution
Ultimate Control – Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
Horizontal keystone and four corner adjustment

Unlock Exclusive Savings! Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

ROHS	COMPLIANT
Display Technology	Single 0.55” XGA DLP® Technology by Texas Instruments
Resolution	XGA 1024 x 768
Brightness1 (Bright Mode)	4500 ANSI Lumens
Contrast	15,000:1
Lamp Life2 Eco+/Eco/Bright	4000/3000/2500 (hrs)
Throw Ratio 3	1.39 – 2.26:1, Offset: 115%
Lens Shift	+17% Vertical
Zoom Type	1.6x Manual
I/O Connectors	HDMI, DVI-D, 2x VGA (RGB/YPbPr), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic 3.5mm, Audio Out 3.5mm, VGA Out, RJ45, RS232, 2x USB-B (Remote Mouse/Display), 2x USB-A (Reader / WiFi), +12v Trigger
Speaker	30
Audio	30W (2x15W stereo)
Keystone Correction	± 40° Vertical
Weight (kg)	4.5
Dimensions (W x D x H) (mm)	386 x 280 x 162
Aspect Ratio	4:3 Native, 16:9/16:10 Compatible
Offset	115%
Projection Screen Size	0.76 – 7.62m (30” – 300”) Diagonal 4:3
Projection Distance	1.2 – 10m
Projection Lens	F/2.42~2.98; f=20.77~31.13mm, 1.6x Manual Zoom
Uniformity	85%
Computer Compatibility	UXGA, SXGA+, HD, WXGA, XGA, SVGA
Video Compatibility	PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
3D Compatibility	Mandatory HDMI 1.4 3D formats, 120Hz frame sequential (up to 720p)
Horizontal Scan Rate	15 – 91kHz
Vertical Scan Rate	25 – 120Hz
Displayable Colours	1.07 Billion
Noise Level (Eco mode)	27dB
Power Supply	100-240V, 50-60Hz
Power Consumption	345W Bright mode, 279W Eco+ mode (less than 0.5W Standby)
Lamp Type	310W
Security	Kensington lock, password protection
On Screen Display	19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian

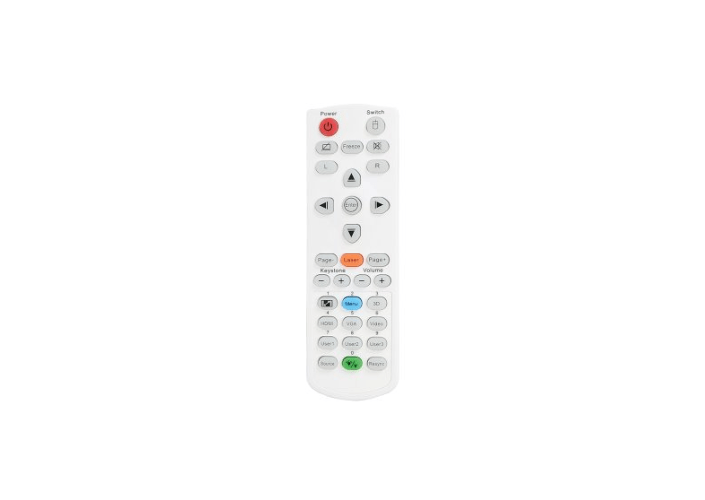

Remote Control	Full function remote with laser pointer, mouse control and direct source selecting
Standard Accessories	AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, Warranty Card
Optional Accessories	Ceiling Mount Kit
Optional Wireless	Yes
Colour Guarantee	5 Years
360’ Operation	Not supported
Portrait Mode	Not supported
Photo	Jpeg
Features	PC-Free / LAN presentation, Crestron RoomView®, PJ-Link

Download Specs PDF

The Series

ProScene projectors are created by our dedicated team to provide you with tried and tested system solutions for innovative projection applications. The solutions have been created using only ProScene projectors and signal processors enabling us to offer you an unprecedented level of support at every stage of your project from conceptualization and design through to installation and commissioning. ProScene solutions enable you to confidently deliver ambitious solutions to your clients quickly, efficiently and with peace of mind.

Features

High contrast
Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

Integrated speaker
The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.

Energy saving
Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy if the projector is left running and no source is detected, the “Auto power off” feature automatically turns off the projector after a set period of time.

Eco AV mute
Stay in control of your presentation with Eco AV mute. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
