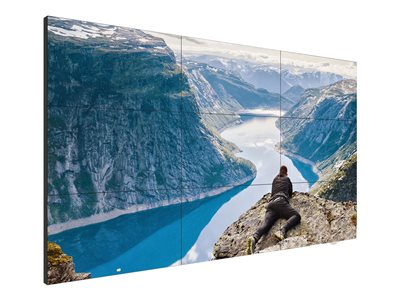

Planar LX46U-L Clarity Matrix G3, 46" LCD Video Wall System, 1920x1080, 500 nit, 3.7mm Bezel, Includes 1 LCD module, necessary power supply modules, standard video controller electronics and EasyAxis mount

Planar LX46U-L Clarity Matrix G3, 46" LCD Video Wall System, 1920x1080, 500 nit, 3.7mm Bezel, Includes 1 LCD module, necessary power supply modules, standard video controller electronics and EasyAxis mount


  • Next-generation LCD video wall system with built-in video wall processing
  • 46” and 55” extreme narrow bezel LCD video wall with 1.7mm tiled bezel width
  • Features Leyard WallDirector Software for simplified installation, monitoring and management
  • Integrated Leyard WallSync technology eliminates video tearing and delivers genlock synchronization
  • Supports 4K at up to 60Hz and scaling
  • Mission-critical design for 24×7 reliability
  • Includes Planar EasyAxis Mounting System for precise alignment and industry’s thinnest profile
  • Available with Planar ERO-LCD protective glass, fiber video extension, passive 3D and interactive multi-touch models

    This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

    Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

    Ex: Shipping and return policies, size guides, and other common questions.

    Model Specifications (Discontinued)

    1080p FHD



    Screen Size

    Direct View LCD

    Display Technlogy

    500 nit


    3 Year



    Run Time

    The Clarity Matrix G3 Series

    The Planar Clarity Matrix G3 LCD Video Wall System evolves the superior performance and mission-critical reliability of previous versions of the Planar Clarity Matrix LCD Video Wall System to deliver the ultimate LCD video wall solution. Building on the accomplishments of the award-winning Clarity Matrix architecture, Planar Clarity Matrix G3 combines the industry’s thinnest profile ultra-narrow bezel LCD’s with industry-leading improvements to video processing, installation, management and off-board electronics, to deliver a next-generation video wall solution.

    The Planar Clarity Matrix G3 is available in standard (LX) and high (MX) brightness 46” and 55” models, along with options for protective Planar ERO-LCD (Extended Ruggedness and Optics) technology, passive 3D and interactive multi-touch.


    Ultimate Visual Performance
    The Planar Clarity Matrix G3 boasts the industry’s narrowest bezels, with tiled bezel widths as small as 1.7mm between adjacent LCD displays, for a nearly seamless video wall solution. Clarity Matrix G3 delivers no-compromise visual performance with superb image quality, perfectly aligned panels and ultra-high resolution. It also includes the Planar® EasyAxis™ Mounting System, which provides an installed depth of just 3.6” (91mm) —the thinnest in the industry—for perfect panel-to-panel alignment. Clarity Matrix G3 is available with Planar ERO-LCD, an optically-bonded glass front that provides increased ruggedness and optical performance for public space or interactive touch applications.

    Simplifying Installation, Service and Monitoring
    With simplified installation and service, the Planar Clarity Matrix G3 ensures a high performance, cutting-edge video wall system at a lower total cost-of-ownership. New Leyard® WallDirector™ Software significantly reduces time spent configuring, operating and monitoring complex video walls. This intuitive web-based software tool features simple, one button presets for set-up and configuration, recalling windowing layouts, dragging and dropping sources on the video wall canvas and easy manipulation of the window size and position. Leyard WallDirector software captures the health status of all video wall components in a centralized, convenient location.

    Advanced Video Wall Processing
    The Planar Clarity Matrix G3 now takes built-in video wall processing to a new level with the off-board Leyard Video Controller, becoming the first LCD video wall solution on the market to embed advanced video processing directly into the product, delivering up to (9) 1920×1080 outputs and full 3×3 wall capability from a single 1U Controller.

    The Improved Planar® Big Picture Plus™ Video Wall Processing delivers more extensive on-display and off-board video wall processing, and can scale sources across the entire video wall or any section of the video wall, including multiple 4K @ 60Hz signals.

    Using 4K quadview, users can combine content from a higher number of independent sources, superimpose a smaller image over a larger one with Picture-in-Picture (PiP) and incorporate up to four unique image sources within a single display. This Planar video wall supports the latest 4K connectivity standards, including both HDMI 2.0 and DisplayPort 1.2, offering customers flexibility when building their video infrastructure.

    Integrated Synchronization with Genlock Technology
    The Planar Clarity Matrix G3 also incorporates Leyard® WallSync™ genlock technology, making it the industry’s first fully integrated synchronized video wall. Leyard WallSync resolves frustrating video wall genlock and synchronization challenges by incorporating a Smart Genlock feature that automatically ensures perfectly synchronized video playback without manual configuration. Leyard WallSync supports synchronization to both connected video sources and external house syncs.

    Leyard WallSync also corrects common video tearing artifacts seen with playback of video containing vertical content elements with horizontal motion or panning.

    Designed for Mission-Critical Operations
    This Planar video wall system features a unique off-board electronics design for maximum reliability and minimal downtime. With the Leyard® Remote Power Supply (RPS), Clarity Matrix G3 takes its unique architecture and mission-critical design to a new level. The Leyard RPS features n+1 hot-swappable redundant power supplies, redundant AC input circuitry, reduced thermal stress and health as well as status monitoring capabilities.

    In the event of failure, the video wall remains operational without disruption. For customers delivering highly sensitive information, the Clarity® Matrix® Fiber Video Extension option provides a more secure and longer distance option for extending video signals from Clarity Matrix electronics to displays.

    Mission-critical design for 24×7 reliability; Includes Planar EasyAxis Mounting System for precise alignment and industry’s thinnest profile
