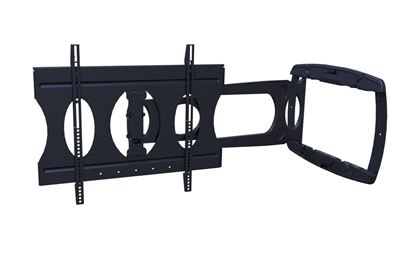

Premier AM100 Low Profile Ultra-Slim Swing-Out Mount for Panels up to 100lb
The AM100 is an ultra-slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements. The swingout arm extends 30 in. from the wall and provides 15° of downward tilt. The lightweight aluminum Premier AM100 swing-out mount collapses to just 1.5 in. from the wall. Cable management channels are built into the arm to keep power and cables protected when pulling or pushing the display.
|SHIPPING WEIGHT :||29.1 lb. | 13.20 kg|
|WEIGHT CAPACITY PER MOUNT :||100 lb. | 45.36 kg|
|NUMBER OF MOUNTS:||1|
|TOTAL WEIGHT CAPACITY:||100 lb. | 45.36 kg|
|WIDTH :||26.33 in. | 668.78 mm|
|HEIGHT :||21.38 in. | 543.05 mm
|DEPTH||1.5 in. | 38.10 mm|
|MOUNTING PATTERN TYPE :||Range|
|MOUNTING PATTERN :||100 x 100 (Min) , 630 x 526 (Max) mm|
|TYPICAL DISPLAY SIZES:||42.00 in. & up|
|EXTENSION:||30 in. | 762.00 mm|
|DIM SIZES :||19.5 in. (wide) x 4.5 in. (high) x 30.8 in. (deep) | 495.3 mm x 114.3 mm x 782.32 mm|
Featuring two adjustable tempered glass shelves, this unit is ideal for DVD, Blu-ray players, cable/satellite receivers or any AV component.
The In-Wall Cable and Power GearBox™ (GB-INWAVP) works well with all Premier flat-panel mounts and is easily installed into a drywall surface. It can be installed anywhere on the wall with no need for stud placement due to unique mounting brackets.
Featuring an adjustable tempered glass shelf, this unit is ideal for DVD and Blu-ray players, cable or satellite receivers or any A/V component. Weight capacity 30 lb.
The INW-AM100 is a recessed, wall mounted storage box for the AM100 swingout mount. Installed with the AM100, the box provides plenty of storage area for cable and power sources, including domestic and international, with cutouts to provide access to run power and signal cables for a clean and concealed look.
