Model Specifications (Discontinued)
4K UHD
Resolution
65"
Screen Size
60Hz E-LED BLU
Display Technlogy
300 nit
Brightness
3 Year
Warranty
16/7
Run Time
PANEL | |||
---|---|---|---|
Diagonal Size 65″ 75″ |
Type Edge LED, 60Hz |
Resolution 3,840 x 2,160 |
Bezel Pixel Pitch (HxV 65″ – 0.105 x 0.315 75″ – 0.143×0.429 mm |
Response Time(G-to-G) 8ms |
Brightness(Typ.) 300 nit |
Contrast Ratio 4700:1 |
Viewing Angle(H/V) 178:178 |

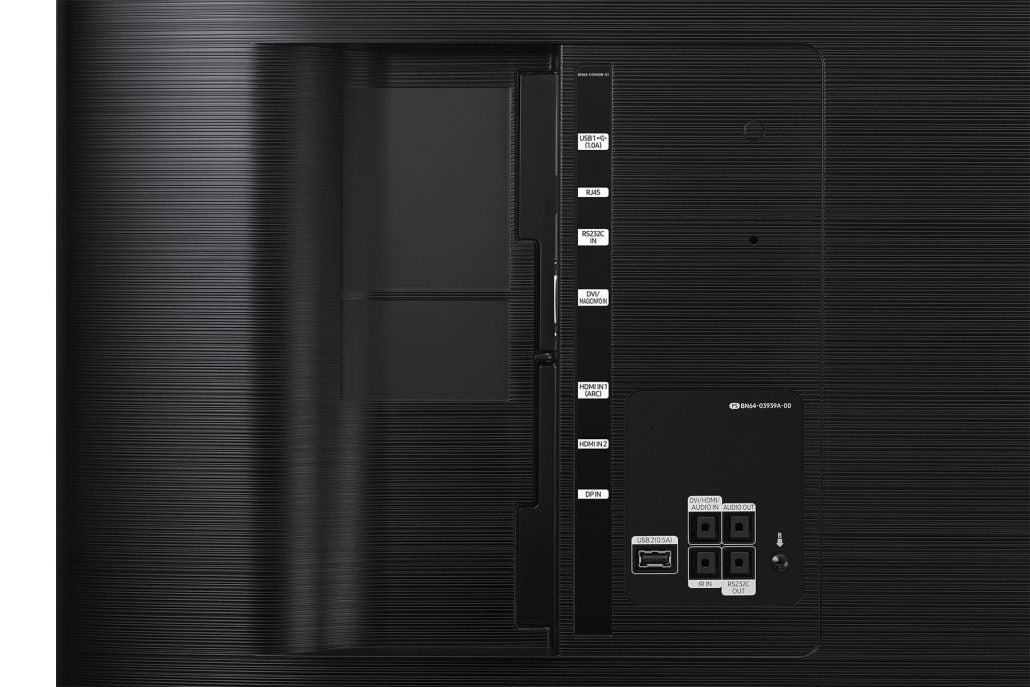

CONNECTIVITY INPUT | |||
HDMI In 2 |
DP In Yes |
DVI In 1 (DVI-D) |
USB 2 |
Audio In Yes |
Audio Out Stereo Mini Jack |
RS232 In Yes |
RS232 Out Yes |
RJ45 In Yes |
RJ45 Out No |
WiFi Yes |
IR In Yes |
POWER CONSUMPTION | |||
On mode [W] 65″ – 122(Typical), 150(Rating), 165(Max) 75″ – 284(Typical), 370(Rating), 407(Max) |
Standbye mode less than 0.5W |
||
MECHANICAL SPECS | |||
Dimension (mm) Set 65″ – 1456.1 x 835.6 x 37.5 75″ -1688.9 x 971.2 x 66.0 |
Dimension (mm) Package 65″ – 1571 x 212 x 956 75″ – 1886 x 1138 x 258 |
||
Weight (kg) Set 65″ – 22.8 75″ – 34.8 |
Weight (kg) Package 65″ – 30.80 75″ – 55.1 |
||
VESA Mount (mm) 400 x 400 mm |
Bezel Width (mm) 12.2 (Top/Side), 12.2 (Bottom) |
Frame Material Non-Glossy |
|
OPERATION | |||
Recommended Usage Hours 16/7 |
Operating Temperature 0.0 ℃ ~ 40.0 ℃ |
Humidity 10.0 % ~ 80.0 % |
|
ACCESSORY | |||
Mount Yes (WMN6575SD) |
Stand Yes (STN-L6500E) |

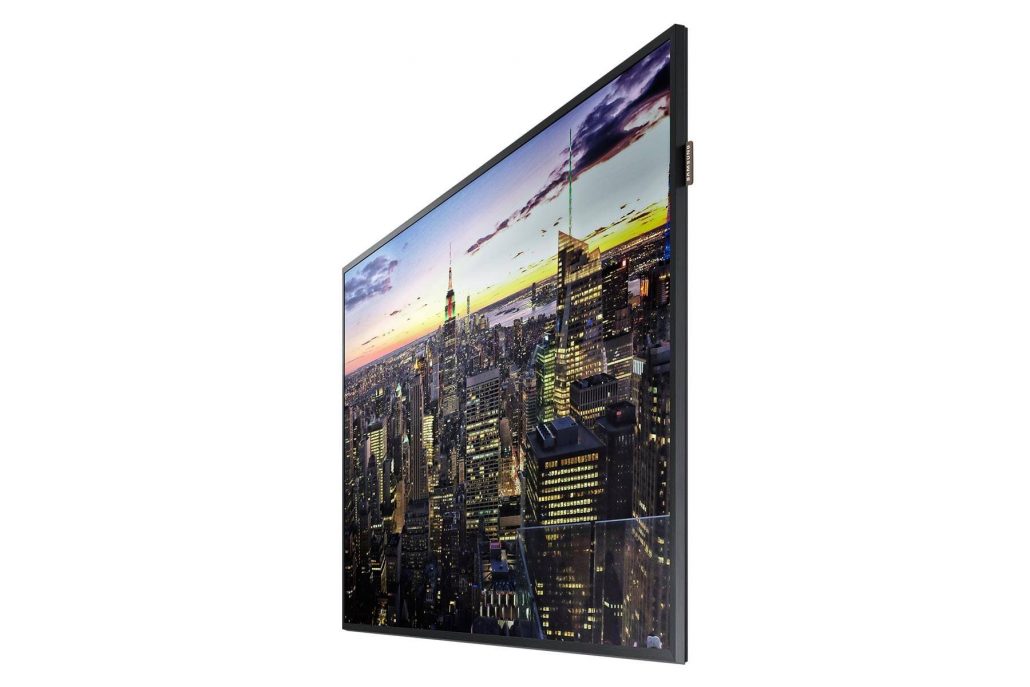

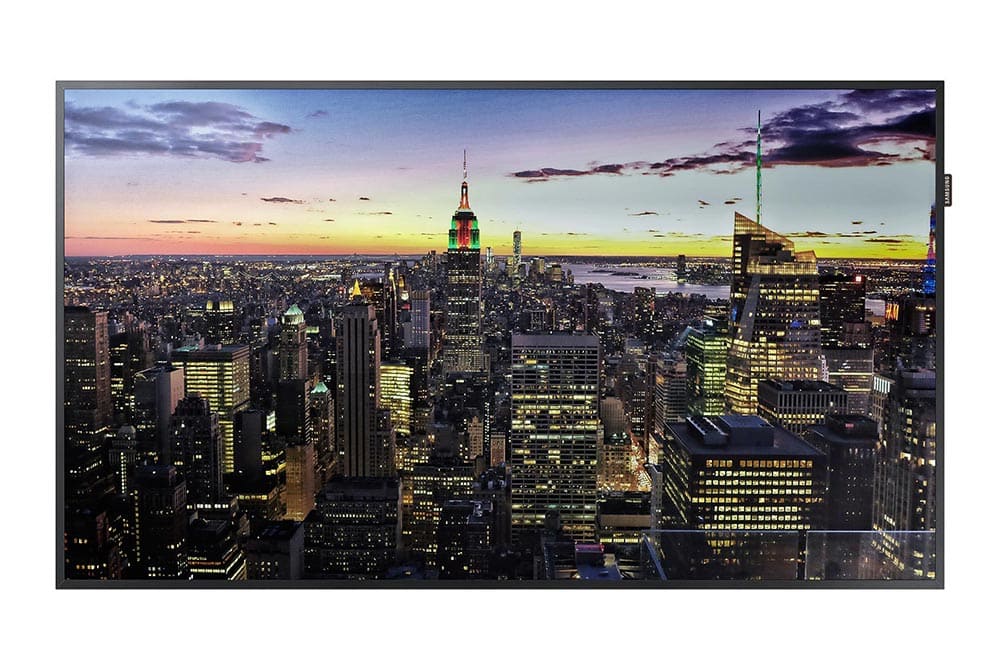

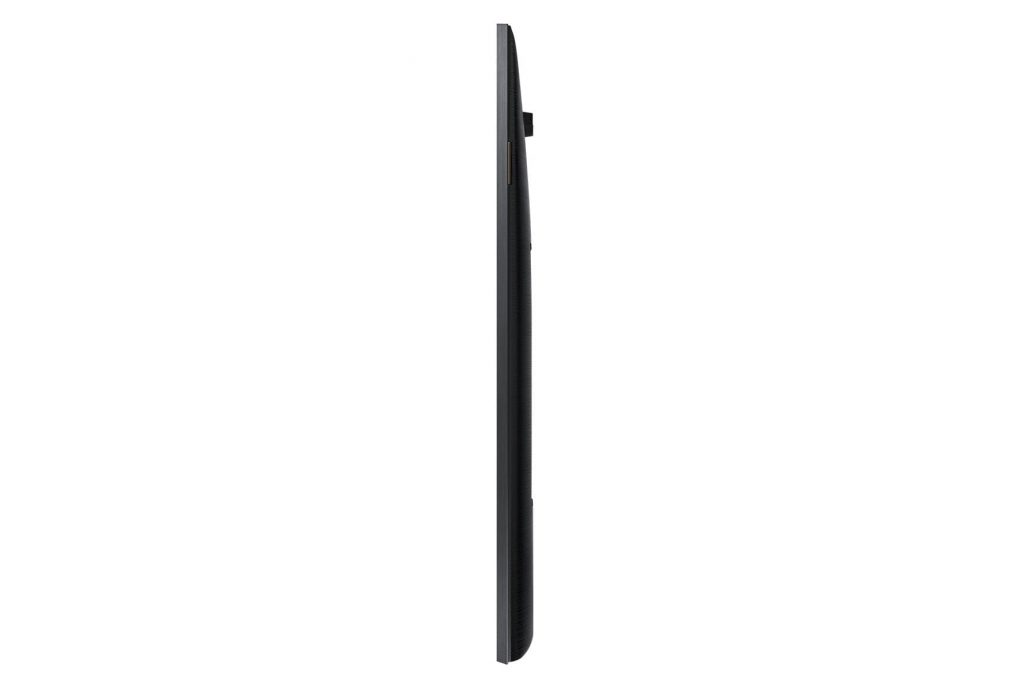

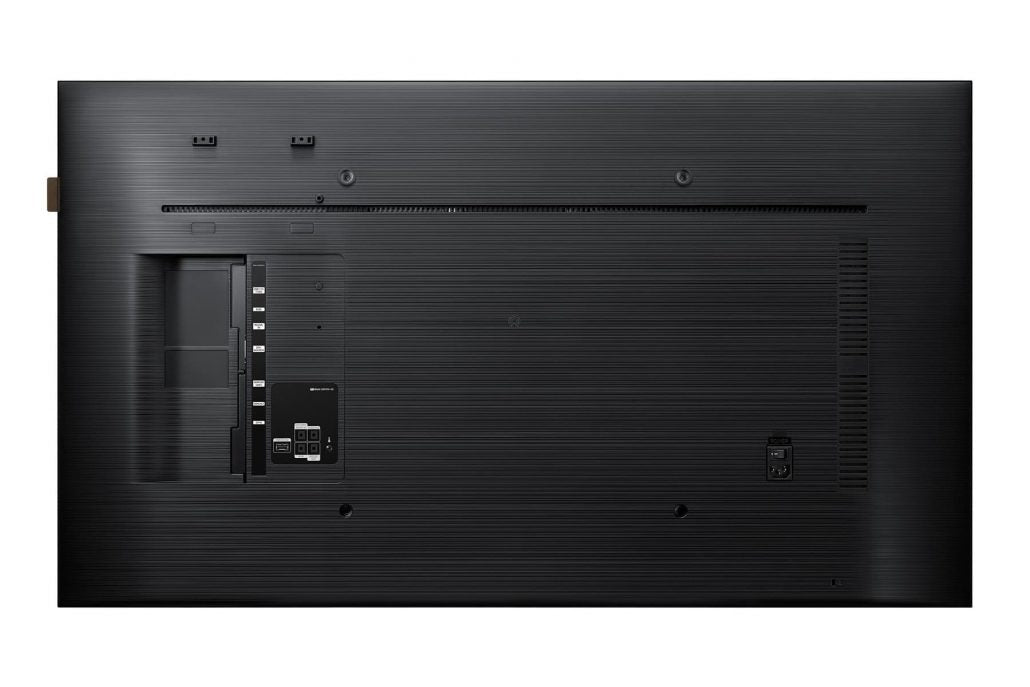

The QB65H Series
