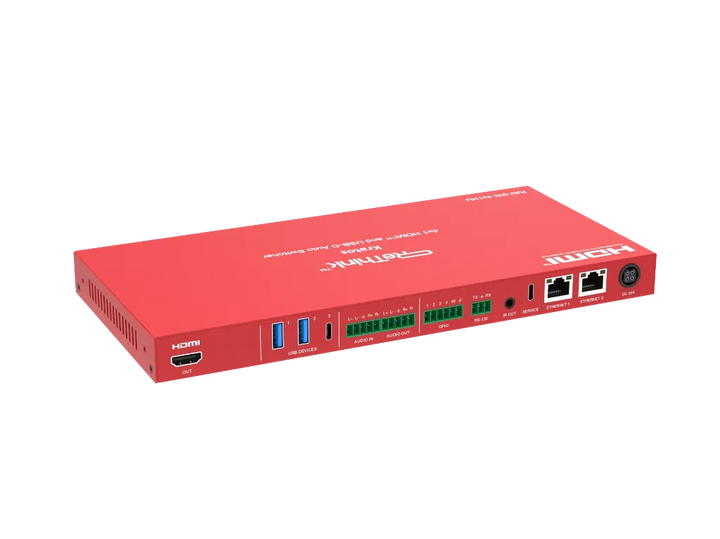

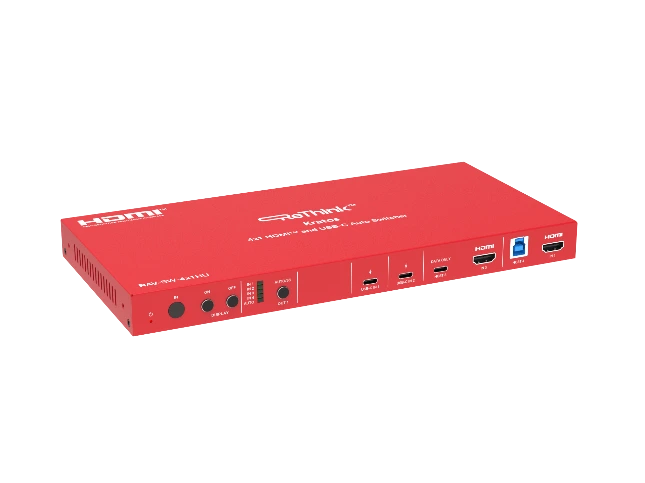

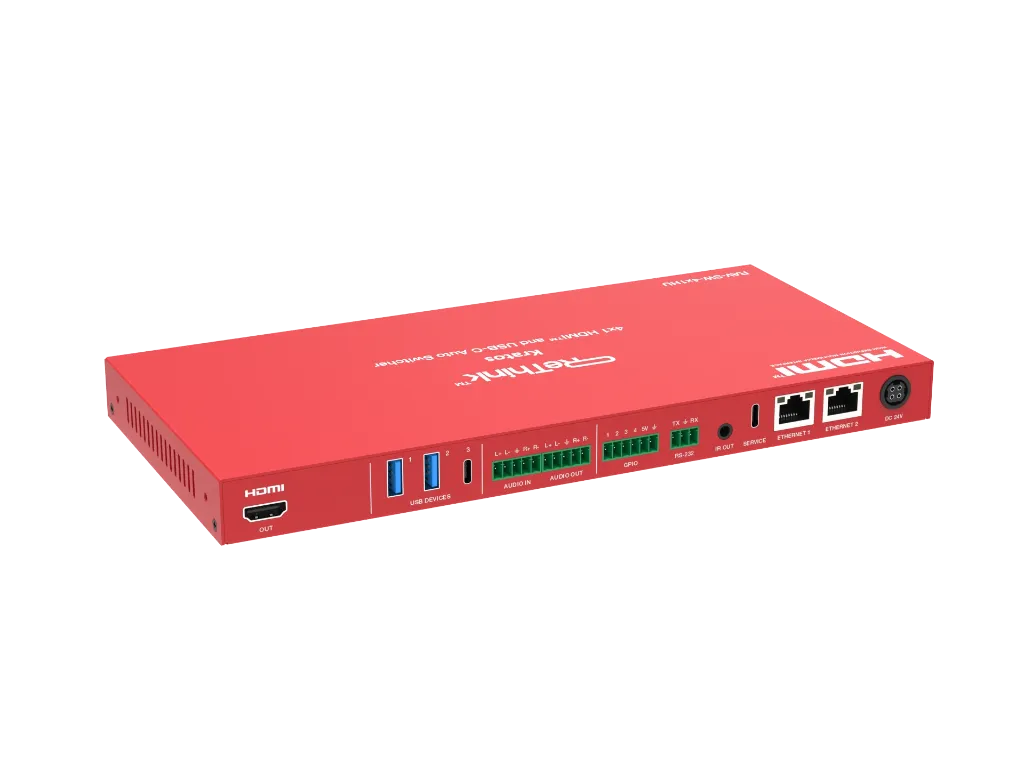

Rethink RAV-SW-4x1HU professional auto switcher with 2x USB-C & 2x HDMI inputs Auto Switcher for Conference Room Video

RAV-SW-4x1HU is a 4-input USB-C & HDMI Auto Switcher that enables seamless switching between fours hosts; 2 on USB-C & 2 on HDMI.

Effortlessly switch three USB peripherals and one display between the four hosts.
Compatible switching uses include room PC's, laptops,  wireless presentation or other computing host.

Switching operation can be accomplished automatically upon connection of a laptop, TCP/IP, RS-232 and front panel push button.

It can be widely used for sharing USB devices facilitating video conferencing, keyboard & mouse devices, touch panel displays and other USB devices.
Advanced features such as Dual Ethernet ports, USB-C charging, CEC and EDID management are included.

FEATURES

Inputs:

• 2x USB-C Host
• 2x HDMI
• 2x 1Gb Ethernet
• 1x RS-232 3pin-3.5mm phoenix
• 3x USB-A 3.2
• 1x USB-C (Data only)
• 1x DC port.

Outputs:

• 1x HDMI
• 1x 3.5mm (line level)
• 1x 3.5mm IR extension

Features:

• Input up to 4K60Hz 4:4:4, as specified in HDMI™ 2.0b.
• Fast switching including auto and manual switching.
• Auto switching supports signal detection and 5V detection.
• USB 3.2 Gen 1 (5Gbps) host and local hub.
• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output.
• Support balanced/un-balanced analogue audio embedding to USB or HDMI audio.
• Support balanced/un-balanced analogue audio de-embedding from USB-C.
• User defined welcome screen and no signal display image.
• Dual 1G Ethernet ports with 802.1x and VLAN.
• IR eye for IR learning and control.
• Auto display on/off control.
• External device control via CEC/IR/RS-232/LAN/GPIO.
• Control via front panel buttons, RS-232, TCP/IP and Web GUI control.
• USB-C with 100W power delivery.
• Ethernet over USB-C.
