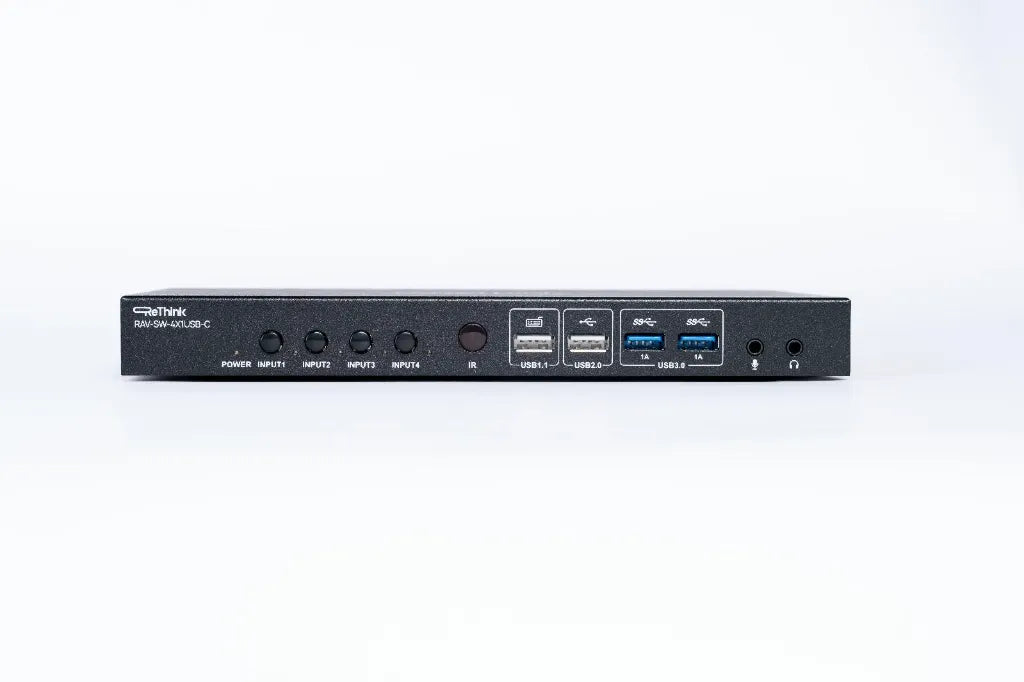

The RAV-SW-4x1HU-VC AV Auto Switcher with Video Conferencing is an all-in-one solution for modern meeting spaces and collaborative environments. Combining seamless switching capabilities with advanced video conferencing support, this device simplifies connectivity for a wide range of input sources, including HDMI and USB-C. It offers automatic source detection, 4K UHD resolution support, and integrated USB hub functionality, enabling effortless integration with cameras, microphones, and other peripherals. With its compact design and intuitive operation, this auto switcher ensures smooth presentations and a professional video conferencing experience in any setup.

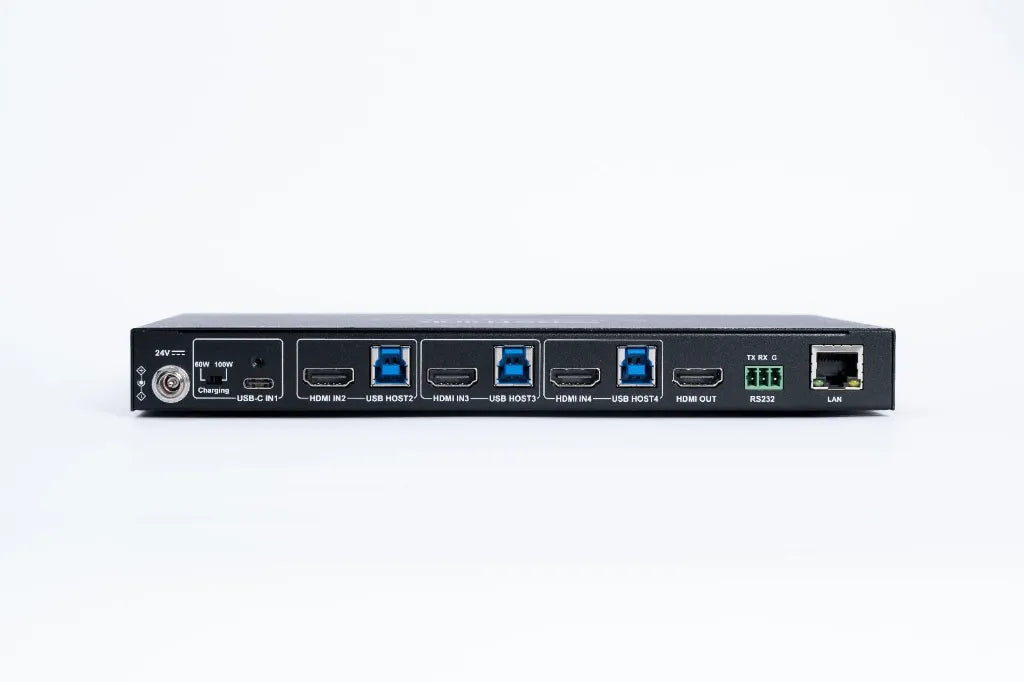

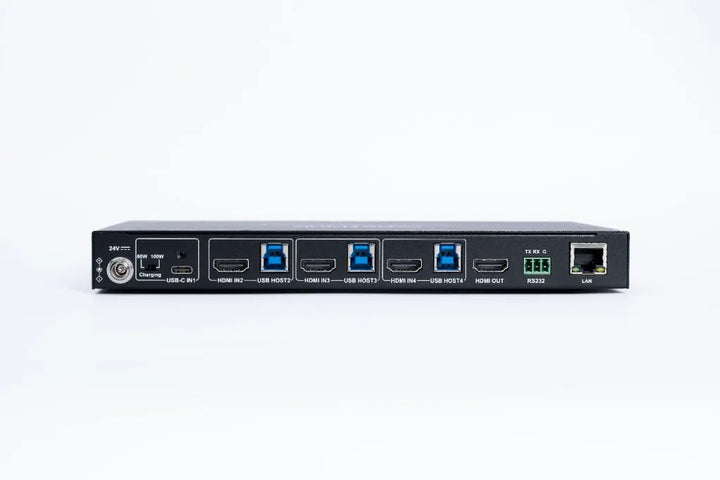

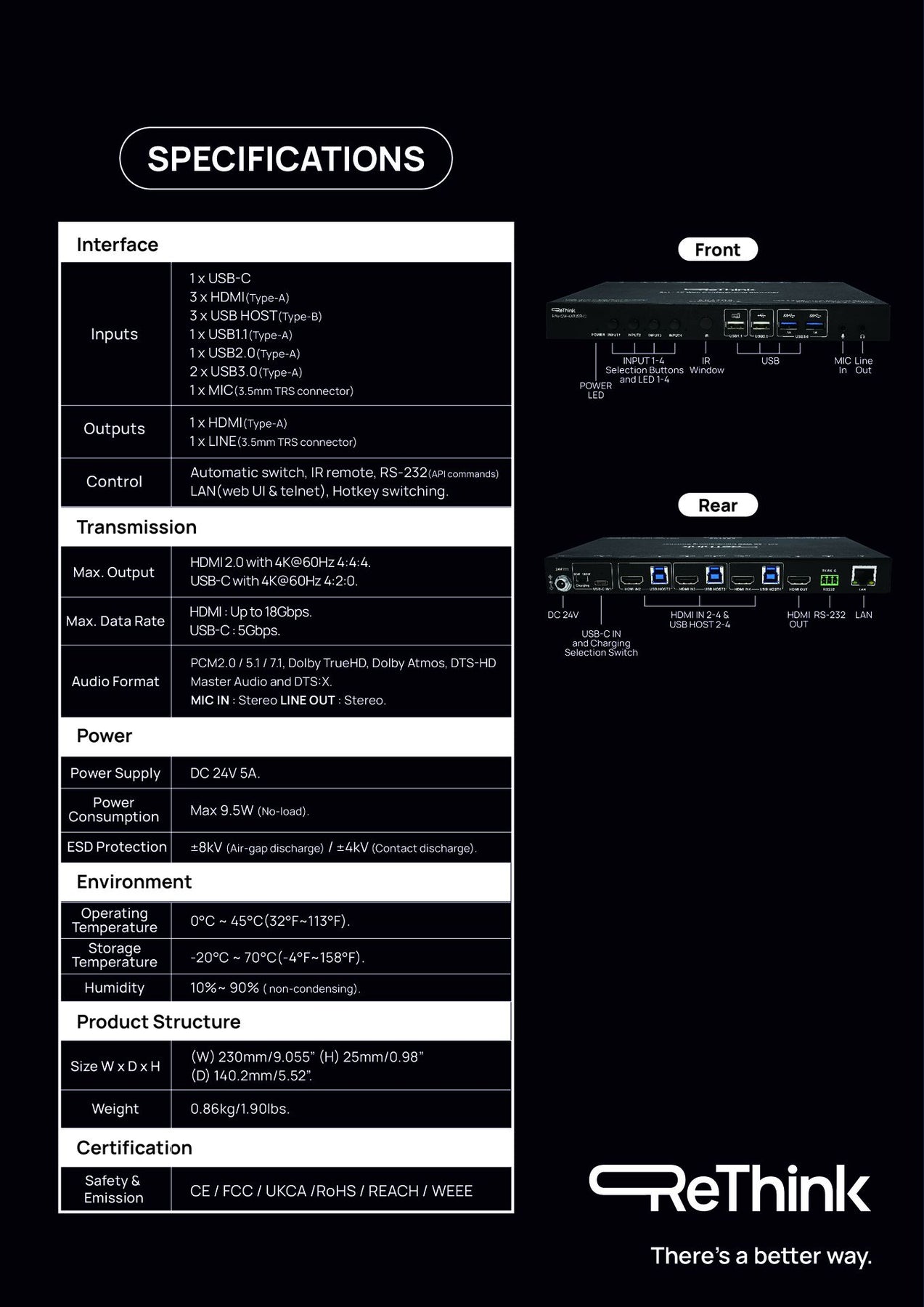

Inputs:
- 1x USB-C
- 3x HDMI
- 3x USB-B (Host)
- 1x RS-232 3-pin Phoenix
- 1x RJ-45 Ethernet LAN,
- 1x USB- A (1.1 Device)
- 1x USB-A (2.0 Device)
- 2x USB-A (3.0 Device)
- 1x IR, 1x 3.5mm Microphone
Outputs:
- 1x HDMI
- 1x 3.5mm line audio out
FEATURES:
One full featured USB-C input supports 4K@60Hz (4:2:0 8bit) video, USB 3.0 data and 60W/100W power charging.
All HDMI inputs and output support resolutions up to 4K@60Hz 4:4:4 8bit, HDR 10, Dolby Vision and HDCP 2.2 compatibility.
HDMI output supports automatic CEC power on/off the connected display.
Two USB 3.0 type-A ports, supports maximum 5Gbps data rate, and maximum 5V/1A power output;
One USB 2.0 type-A port, supports maximum 480Mbps data rate, and maximum 5V/0.5A power output;
One USB 1.1 type-A port, it is used to be connected with USB keyboard and can support hotkey switching.
One RS232 port, for API commands control.
One mic in port and one line out port, for connecting with microphone and earphone.
One LAN port, for LAN control (web UI & telnet).
Provides USB to ethernet bridge for computers connected to USB-C or USB-B port.

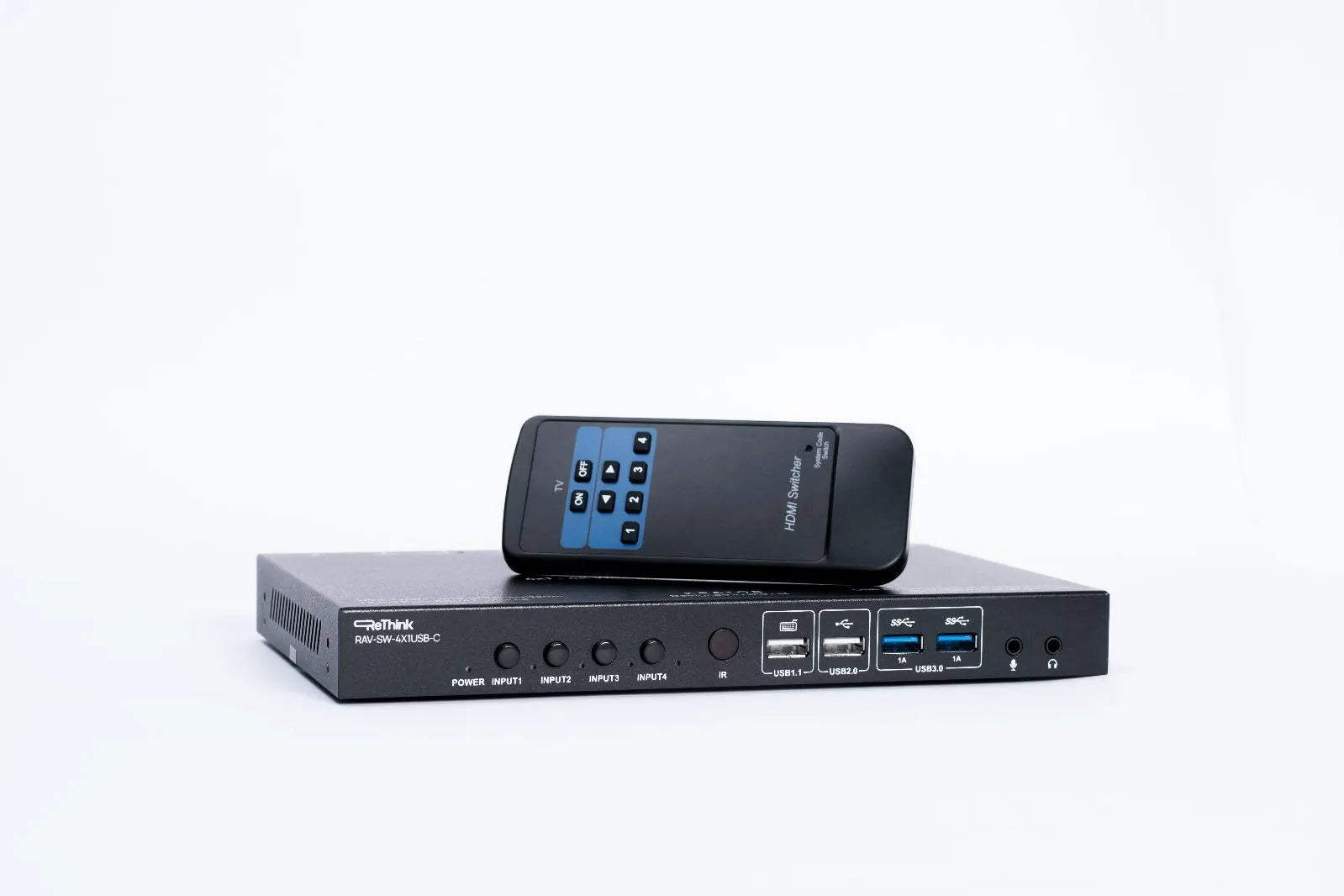

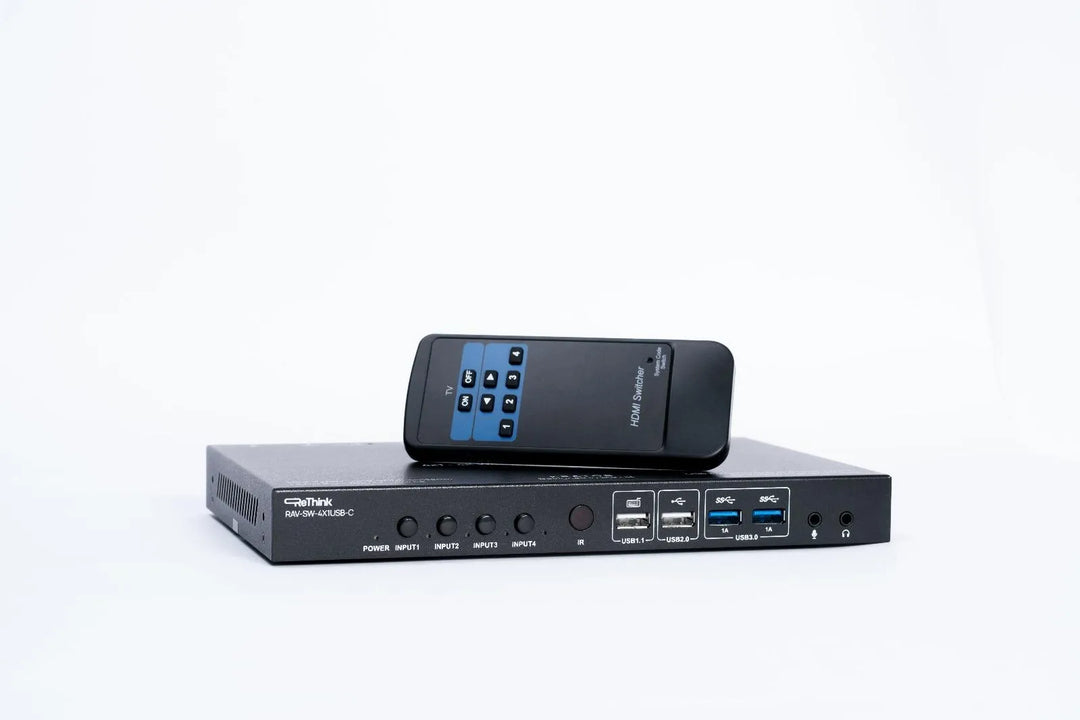

Multiple control options, including automatic switch, front panel buttons switch, IR remote, RS232 (API commands), LAN (web UI & telnet)
Hotkey switch (Keyboard must be connected to USB 1.1 port).
No driver required, plug and play.
