LH015IFHTAS/ZA-SAMSUNG

Deliver an eye-catching large-scale viewing experience with Samsung’s IF015H fine pixel pitch displays. Combining our leading video processing technologies with High Dynamic Range (HDR) picture refinement, they deliver clear, high-quality content within a compact, easy-to-maintain design. Plus, they’re built for quality with durable components and optimized power consumption for a reliable, cost-effective solution.

Key Features

    • Specialized LED High Dynamic Range (HDR) technology plus factory and on-site DSLR calibration optimizes picture quality and consistency
    • Flexible front and rear service access simplifies maintenance while keeping a clean installation
    • UHD Signage Box, advanced indoor digital signal redundancy and content platform compatibility simplifies operations
    • Temperature and ventilation control extends the display’s lifespan to help minimize cost


Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

  • Industry-Leading Shipping Speeds
  • Competitive Price Matching
  • Secure Processing

The IF Smart LED Signage Series

Deliver an eye-catching large-scale viewing experience with Samsung's IF Series fine pixel pitch displays. Combining our leading video processing technologies with High Dynamic Range (HDR) picture refinement, they deliver clear, high-quality content within a compact, easy-to-maintain design. Plus, they're built for quality with durable components and optimized power consumption for a reliable, cost-effective solution.

Model Specifications

100,000

Operating Hours

1.5 mm

Pixel Pitch

800 nit

Brightness

IF015H IF020H IF025H
Physical
Parameters
Pixel Pitch 1.5 mm 2.0 mm 2.5 mm
Pixel Configuration 1 Red, 1 Green,  1 Blue 1 Red, 1 Green,  1 Blue 1 Red, 1 Green,  1 Blue
Pixel Density 444,444 m2 / 41,290 ft2 250,000 m2 / 23,225 ft2 160,000 m2 / 14,864 ft2
Cabinet/Module Configuration (L x H) 320 x 360 Pixels 240 x 270 Pixels 192 x 216 Pixels
Diode Type Surface Mount Device (SMD) Surface Mount Device (SMD) Surface Mount Device (SMD)
Dimensions (L x H x D) 18.8" x 21.2" x 2.5" (per Cabinet) 18.8" x 21.2" x 2.5" (per Cabinet) 18.8" x 21.2" x 2.5" (per Cabinet)
Weight 13.2 lbs. 13.2 lbs. 13.2 lbs.
Package Dimensions (L x H x D) 23.9" x 26.4" x 7.24" 23.9" x 26.4" x 7.24" 23.9" x 26.4" x 7.24"
Package Volume 2.65 cubic feet 2.65 cubic feet 2.65 cubic feet
Package Weight 19.4 lbs. 19.4 lbs. 19.4 lbs.
Optical
Parameters
Max Brightness (After Calibration) 800 nits 1,200 nits 1,200 nits
Peak Brightness 1,600 nits 2,400 nits 2,400 nits
Contrast Ratio 5,000:1 5,000:1 5,000:1
Viewing Angle - Horizontal / Vertical 160° / 160° 160° / 160° 160° / 160°
Bit Depth 14-bit Per Color 14-bit Per Color 14-bit Per Color
Color Wavelength Red: 630nm, Green: 530nm, Blue: 468nm Red: 630nm, Green: 530nm, Blue: 468nm Red: 630nm, Green: 530nm, Blue: 468nm
Color Temperature - Default 6,500K 6,500K 6,500K
Color Temperature - Adjustable 2,800 - 10,000K 2,800 - 10,000K 2,800 - 10,000K
Electrical
Parameters
Video Rate 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
Input Power Range 100~240 VAC, 50/60 Hz 100~240 VAC, 50 / 60 Hz 100~240 VAC, 50 / 60 Hz
Power Consumption - Max (W / m2) 772 (W/m2) / 200 (With Cabinet) 694 (W/m2) / 180 (With Cabinet) 617 (W/m2) / 160 (With Cabinet)
Power Consumption - Typical (W / m2) 257 (W/m2) / 67 (With Cabinet) 231 (W/m2) / 60 (With Cabinet) 205 (W/m2) / 53 (With Cabinet)
Heat Generation - Max (BTU / SF) 245 BTU / SF per Hour 220 BTU / SF per Hour 196 BTU / SF per Hour
Heat Generation - Average (BTU / SF) 82 BTU / SF per Hour 73 BTU / SF per Hour 65 BTU / SF per Hour
Refresh Rate 1,920 Hz – 3,840 Hz 1,920 Hz – 3,840 Hz 1,920 Hz – 3,840 Hz
Operation
Conditions
Working Temperature 32°F ~ 104°F 32°F ~ 104°F 32°F ~ 104°F
IP Rating IP20 IP20 IP20
LED Lifetime 100,000 Hours 100,000 Hours 100,000 Hours
Certification Certification EMC Class A, Safety 60950 EMC Class A, Safety 60950, ESD EMC Class A, Safety 60950, ESD
Service Front Access Yes Yes Yes
Rear Access Yes Yes Yes

Key Features

CUTTING-EDGE DIRECT-VIEW LED TECHNOLOGY

The IF015H combines our leading video processing tools with specialized LED High Dynamic Range (HDR) technology to maximize brightness and refine the overall picture presentation. Plus, we can customize each IF Series direct-view LED display for your specific indoor content needs.

EASY-TO-MAINTAIN SIGNAGE

Through an intuitive, easy-to-manage design, IF015H displays help to improve overall operational efficiency while reducing cost from installation to service to content management.

Each IF015H display undergoes rigorous durability testing to help ensure optimal performance. Plus, an energy-efficient fanless cabinet design expands temperature and ventilation management capabilities to help reduce operational demands and extend shelf life. And with Samsung’s LED Signage Manager (LSM), you can quickly identify and correct common performance errors and avoid visual disruptions.

IF015H OFFERS ACCURATE COLOR IN LOW BRIGHTNESS

Improved color accuracy, even for reds, greens and blues in low grayscale settings, is provided by our grayscale management algorithm that maintains consistent R/G/B gradation. So you can display high quality content in low-brightness indoor environments, such as galleries, museums and shops.

COLOR CUSTOMIZATION FOR YOUR SPECIFIC INDOOR NEEDS

Compatibility with various color gamut settings, including sRGB, AdobeRGB and LED Natural Mode spectra, enables brilliant color expression customized for the specific needs of your environment. So you can achieve seamless content delivery in specialized settings from broadcast studios to galleries.

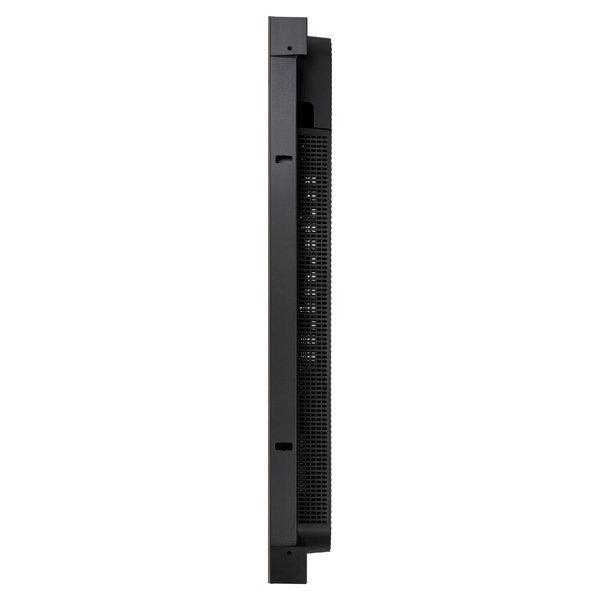

COMPACT DESIGN FOR CLEAN INSTALLATION

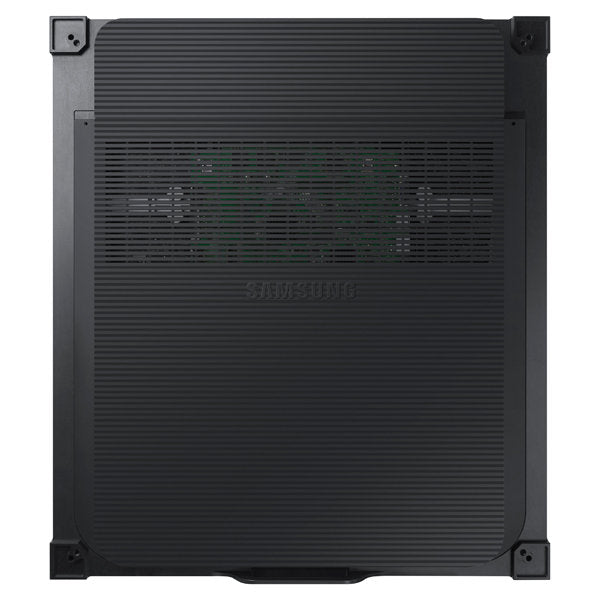

A slim, light and compact design offers installation flexibility. Full-front access to critical signage components ensures a neat installation without the need for a catwalk space, while rear access enables more convenient and quick maintenance. And through an advanced cabinet structure, IF015H displays can be positioned without the seams that can often come with challenging frontal implementations.

SIMPLIFIED CONTENT MANAGEMENT

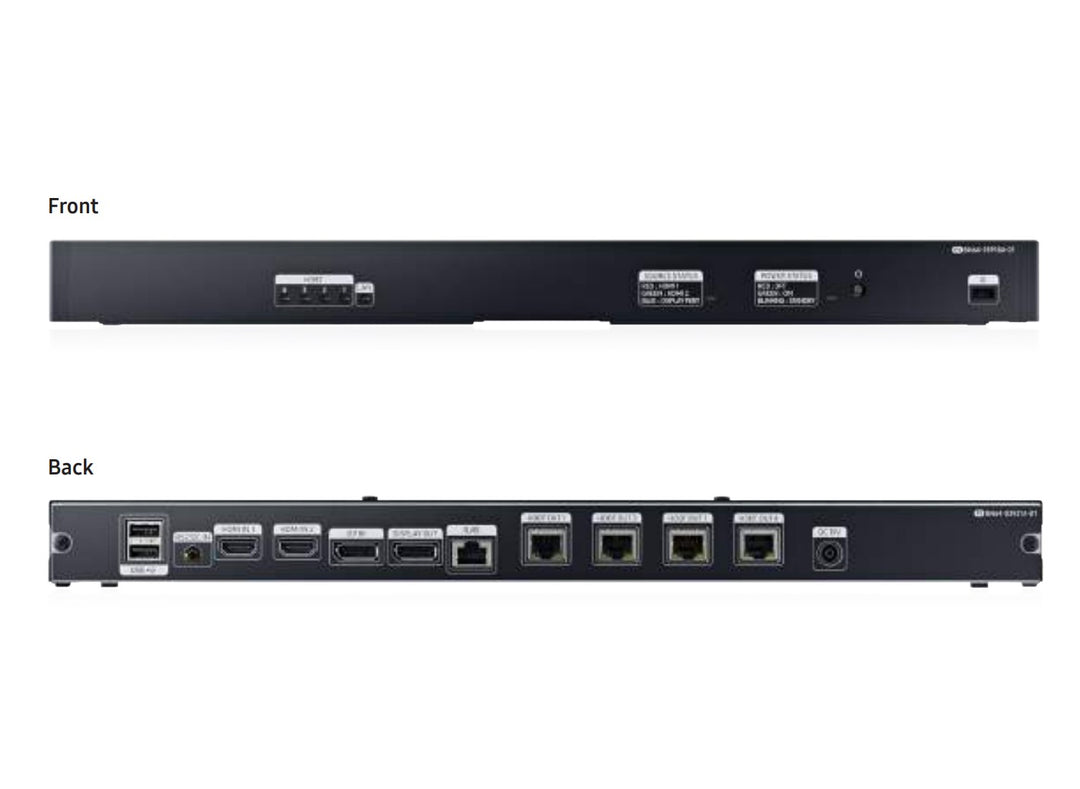

A user-friendly design allows for a fast, clean and cost-efficient activation. With Samsung’s LED Signage Box (S-Box), UHD content is transmitted across multiple screens from a single source without the need for a splitter or multiple external boxes. You can also leverage existing cable structures to easily configure signal redundancy. Plus, the integrated Samsung MagicInfo content platform makes content creation, scheduling and deployment easy.

FAQ

Direct View LED displays eliminate the LCD panel, instead using a surface array of LEDs as the actual display pixels. This allows for incredible contrast, vibrant colors, and brightness levels several times that of LCDs.

Pixel pitch describes the density of the pixels (LED clusters) on an LED Display and correlates with resolution. Sometimes referred to as pitch or dot pitch, the pixel pitch is the distance in millimeters from the center of a pixel to the center of the adjacent pixel. Since pixel pitch indicates the amount of space between two pixels, a smaller pixel pitch means there is less empty space between pixels. This equates to higher pixel density and improved screen resolution.

  • Pixel pitch refers to the density of pixels
  • A smaller pixel pitch indicates higher pixel density and higher resolution
  • Pixel pitch is important because it influences viewing distance
  • The smaller the pixel pitch, the closer the viewing distance
  • The optimal viewing distance of your screen informs the pixel pitch value

From our partners at Planar

Smaller pixel pitch universally provides greater resolution, but is more expensive. Materials and production costs are higher for smaller pixel pitch since more LED clusters are required to create a higher pixel density.

Consumers can get the best value for their LED screen by determining the optimal viewing distance of their screen. The optimal viewing distance is the point where image fidelity is retained, but if the observer moved much closer, the image quality would decrease or the screen would appear pixelated.

For example, a display with interactive touch solutions will need a low pixel pitch to produce crisp images for the nearby audience. On the other hand, an LED screen displayed above viewers, like one hung in an arena, could get away with a higher pixel pitch. The short answer is that a smaller pixel pitch will always give you better quality image, but the investment will not be fully appreciated if the screen is not seen from a sufficiently close enough distance.

There are three methodologies used in the industry to determine acceptable viewing distance:

  • 10x Rule - this is a shorthand method for calculating an approximate estimate of the Visual Acuity Distance.
    The calculation is: Pixel Pitch x 10 = Approximate Viewing Distance in Feet
  • Visual Acuity Distance – also known as retina distance, this is a formulated calculation of the distance a person with 20/20 vision must move away from an LED screen to see a coherent image that is not pixelated.
    The calculation is: Pixel Pitch x 3438 = Visual Acuity in Millimeters.
  • The Average Comfortable Viewing Distance – this is an estimate of what would be a comfortable viewing distance for most people. This is a subjective estimate and will take into account variables like a person’s eye sight, resolution of content and type of content.

From our partners at Planar
