Samsung OH85N High Brightness Outdoor Display for Business, 24/7, 3300 nits, IP56-Certified (Kit Type)

Name: Samsung OH85N High Brightness Outdoor Display for Business, 24/7, 3300 nits, IP56-Certified (Kit Type)
Brand: Samsung
SKU: OH85N-SAMSUNG
Availability: InStock

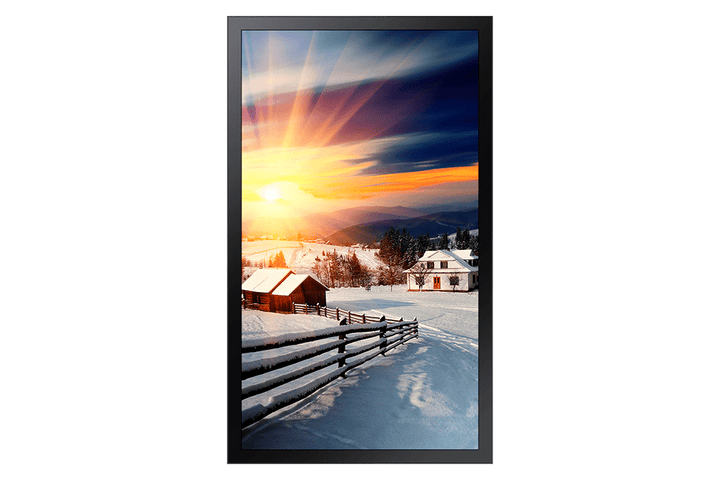

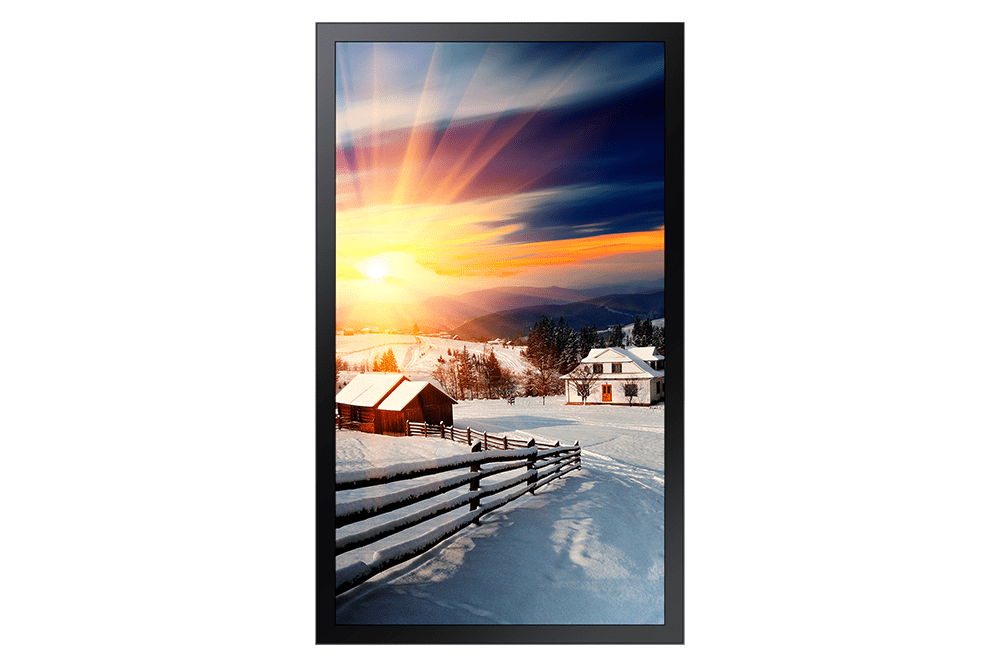

Samsung OH85N High Brightness Outdoor Display Front View

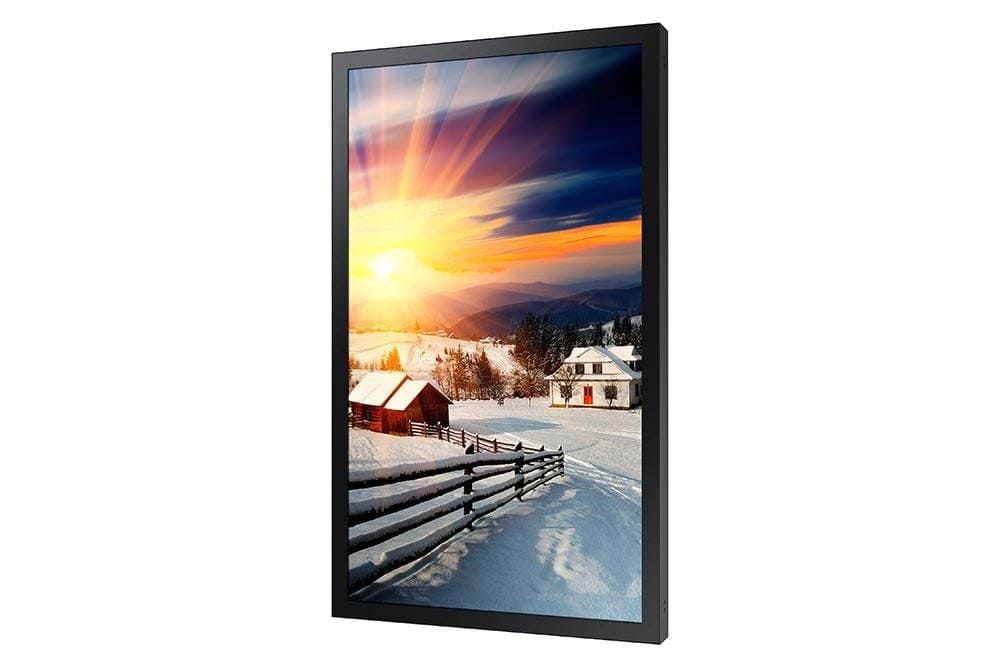

Samsung OH85N High Brightness Outdoor Display Front View Alternate

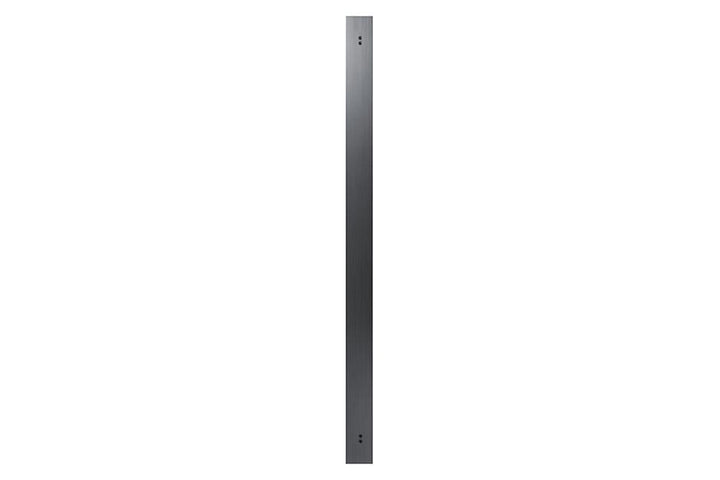

Samsung OH85N High Brightness Outdoor Display Side View

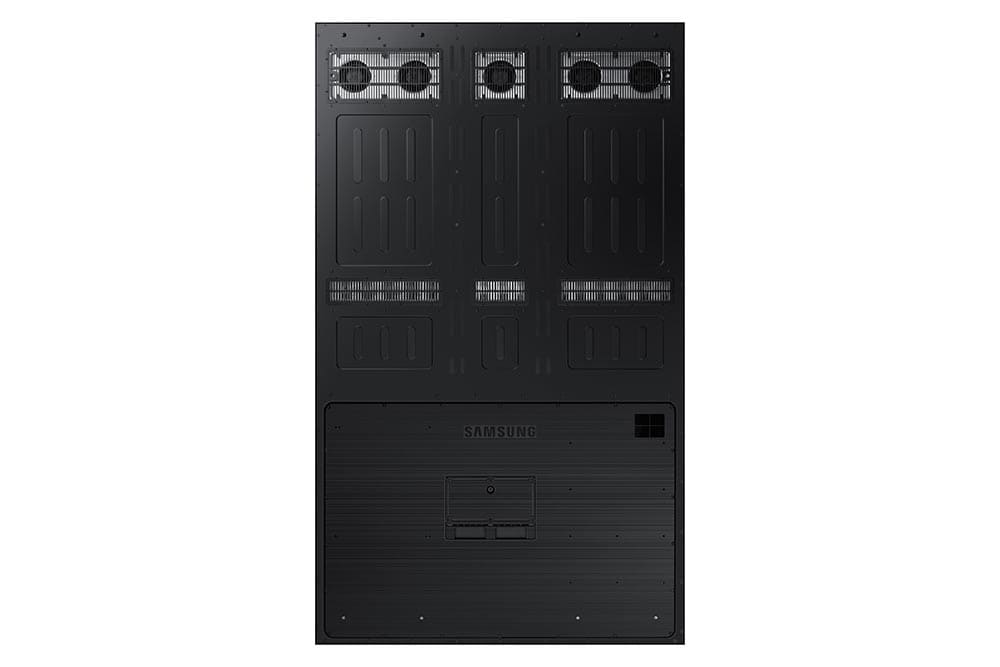

Samsung OH85N High Brightness Outdoor Display Back View

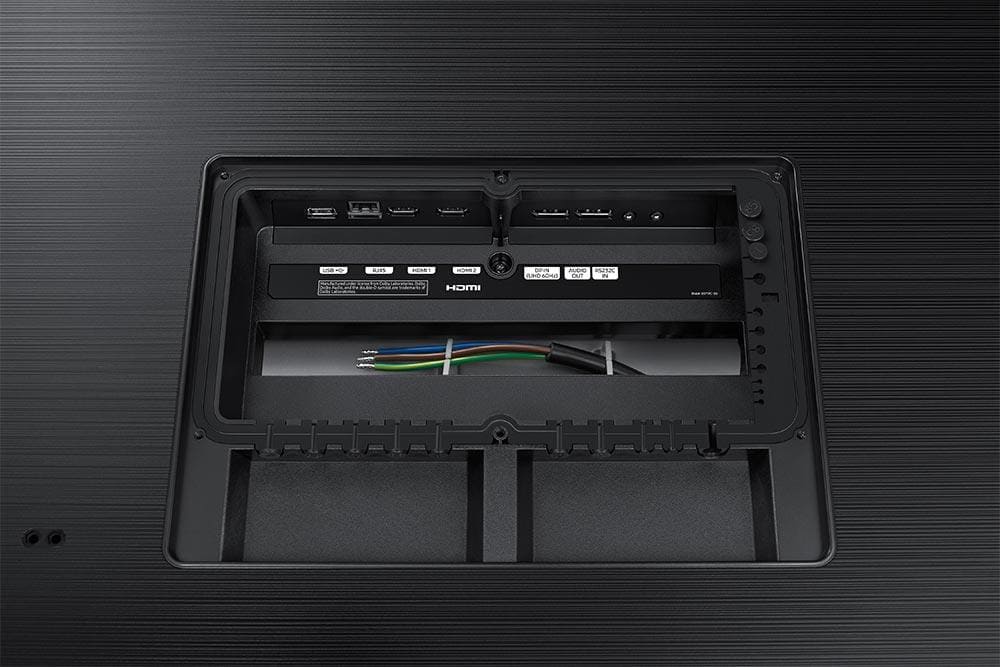

Samsung OH85N High Brightness Outdoor Display Inputs

KEY FEATURES

85” large-sized digital displays optimized for outdoor usage
Excellent visibility under direct sunlight through 3,000 nit high brightness
Optimal durability with IP56-rated displays and IK10-rated Magic Protection Glass
Advanced content management via MagicINFO S6 Player powered by TIZEN

N ND NS

Unlock Exclusive Savings! Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

4K UHD

Resolution

85"

Screen Size

60Hz D-LED Local Dim. BLU

Display Technlogy

24/7

Run Time

3300 nit

Brightness

3 Year

Warranty

Panel

Diagonal Size	85
Type	60Hz D-LED Local Dim. BLU
Resolution	3840*2160 (4K UHD)
Pixel Pitch(mm)	0.488 x 0.488
Active Display Area(mm)	1872(H) x 1053(V)
Brightness(Typ.)	3,300 (w/o glass) nit
Contrast Ratio	3000:1
Viewing Angle(H/V)	178/178
Response Time(G-to-G)	8ms
Display Colors	8 bit - 16.7 Mbit
Color Gamut	72%
Operation Hour	N/A
Haze	0%

Display

Dynamic C/R	100,000:1
H-Scanning Frequency	15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP)
V-Scanning Frequency	24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP)
Maximum Pixel Frequency	594MHz (HDMI), 533.25MHz (DP)

Connectivity

Input
RGB		DP 1.2
Video		HDMI 2.0 (2)
HDCP		HDCP 2.2
USB		USB 2.0 (1)
Output
Audio		Stereo Mini Jack

External Control		RS232C (In), RJ45 (In)

Power

Type		Internal
Power Supply		AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]		1800
Typical[W/h]		W/W(EU) 600US/KOR/Etc. 1,010※ Etc: CHINA, TAIWAN, BRA
BTU(Max)		6138
Sleep mode		less than 1W
Off mode		less than 1W

Mechanical Specification

Dimension (mm)
Set		2,004 x 1,185 x 120 mm
Package		2,175 x 1,383 x 495 mm (Without Pallet)
Weight (kg)
Set		137kg
Package		185kg

Operation

Operating Temperature	-30 ℃ ~ 50 ℃	Humidity	10 % ~ 100 % (Non-Condensing)

Feature

Key Features		Slim High Brightness, IP56 Outdoor,Built-in MagicInfo Player S6, SSSP6
Orientation		N/A
Remote Control		N/A
Special Features		IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)
Internal Player	Processor	Cortex A72 1.7GHz Quad-Core CPU
	On-Chip Cache Memory	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
	Clock Speed	1.7GHz
	Main Memory Interface	2.5GB LPDDR4 1.5GHz 64bit
	Graphics	Graphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
	Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
	Multimedia	Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG
	IO Ports	USB 2.0
	Operating System	Tizen 4.0 (VDLinux)

Certification

Safety		CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
EMC		'FCC (USA) : Part 15, Subpart B Class B CE (Europe) : EN55032:2015 Class B EN55035:2017
IP Rating		IP56

Accessory

Included		Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries
Optional
Stand		N/A
Mount		N/A
Specialty		N/A

Media Player

Media Player		N/A

Download Specs PDF

The OHN Series

Samsung’s new outdoor signage, OHN series, has elevated the typical outdoor advertising experience with its bold and engaging content delivery at any bus stop or street billboard. The OHN series presents enhanced detail and true-to-life graphics in all conditions, from the most powerful sunlight to the darkest of nights, 24/7. The OHN is durable and resistant to multiple outside elements that could affect a display’s performance. Also included is easy-to-use management software that allows users to control the display with ease. Samsung’s OHN series will make any business stand out from the crowd with its immersive and high-quality images, attracting consumers to its brand.

Key Features

LARGE DISPLAYS OPTIMIZED FOR DOOH (DIGITAL OUT OF HOME)

The OHN Series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high-quality images and content.

UNSURPASSABLE VISIBILITY DAY AND NIGHT

The OHN Series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.

EASY-TO-USE MANAGEMENT SOFTWARE

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allows for painless content management and ensures seamless transition and playback.

BUILT STRONG TO ENDURE IMPACTS

The OHN Series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10-rated, further proving its robust level of strength that can endure physical impact.

RESISTANT TO OUTDOOR ELEMENTS

The OHN Series is verified to perform in outdoor settings. IP56-rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.

POSSESSING A SELF-COOLING SYSTEM WITH NO NEED FOR FILTER OR MAINTENANCE

The OHN Series comes complete with an advanced cooling system with heat exchanger, supported by advanced thermal control functionality. This enhances the overall efficiency in terms of both management and cost through its filter-less system. The system revolutionizes outdoor signage design, abandoning the thick enclosures to accommodate a full display package.
