Name: Samsung OM46B 46" Smart Outdoor Signage, 4K UHD, Window Display, 4000 nit, IP5X Dust Protection, 24/7 Operation
Brand: Samsung
SKU: OM46B-SAMSUNG
Availability: OutOfStock

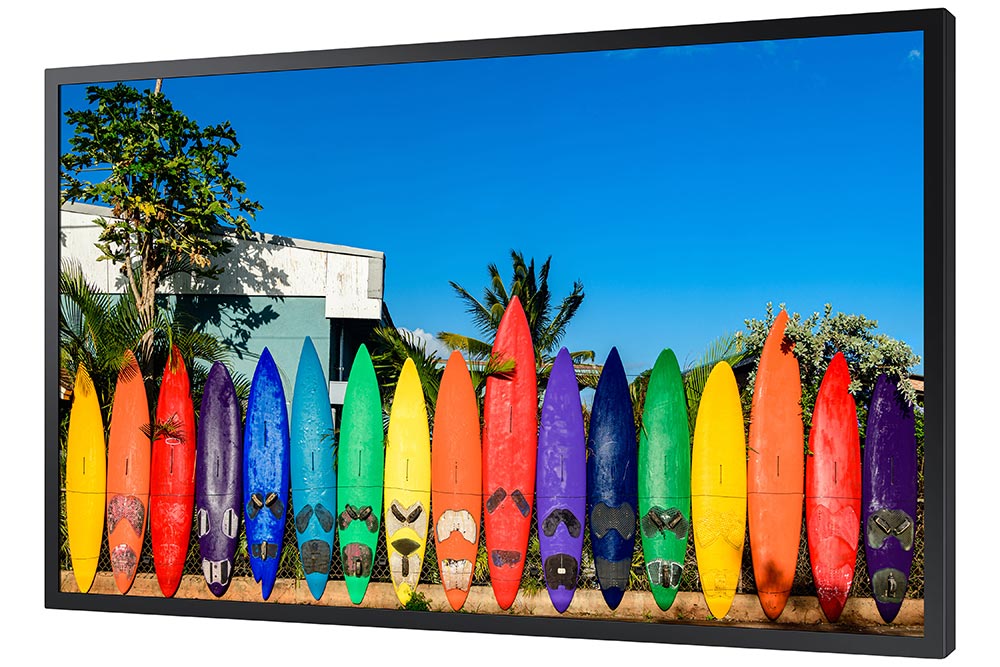

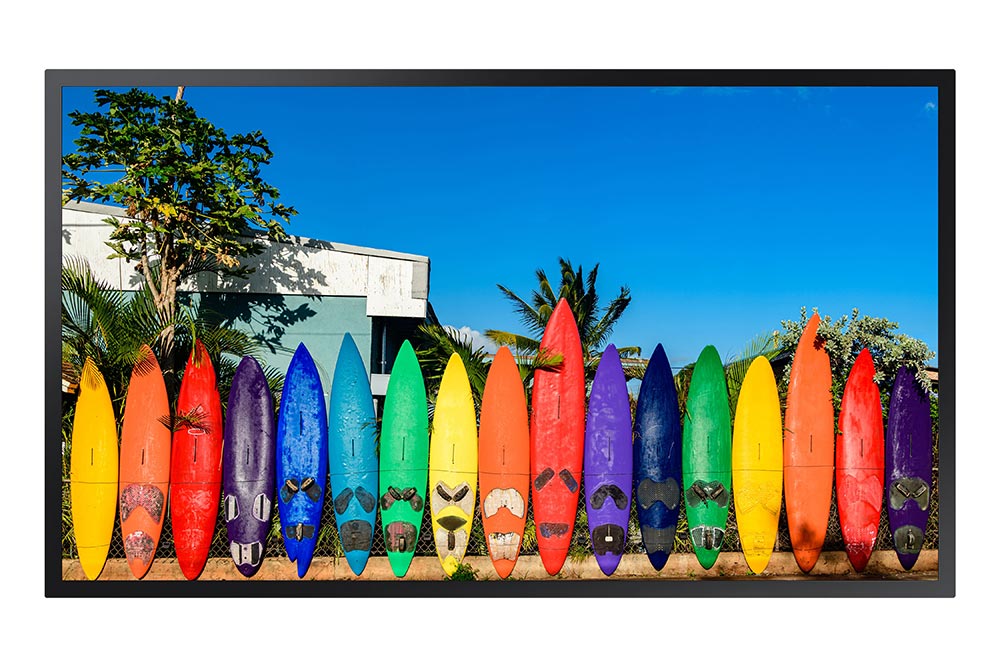

Samsung OM46B 46" Smart Outdoor Signage Front View

Samsung OM46B 46" Smart Outdoor Signage Front View Alternate

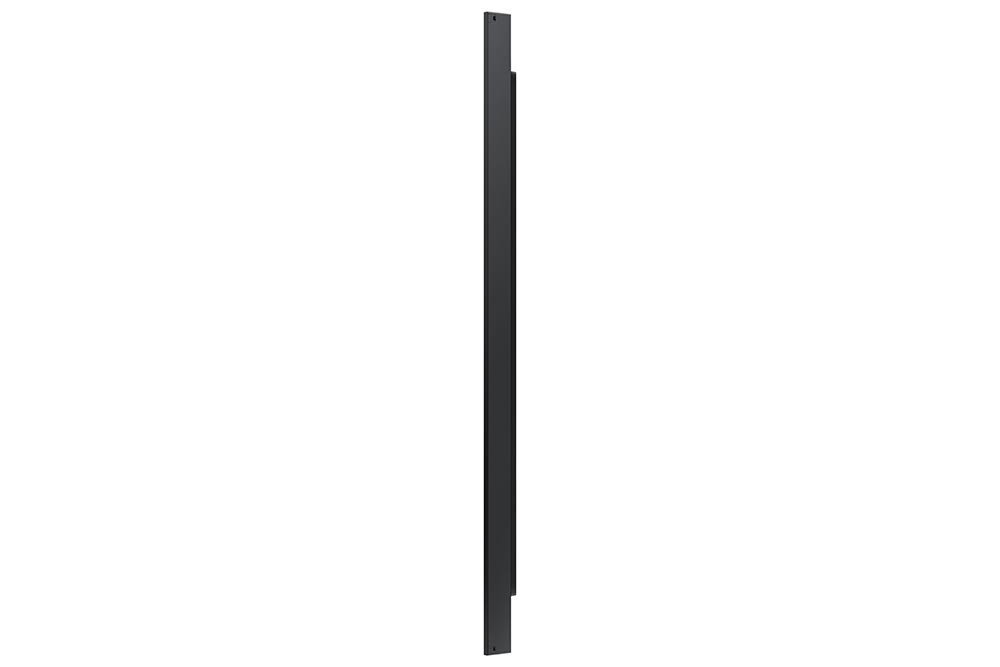

Samsung OM46B 46" Smart Outdoor Signage Side View

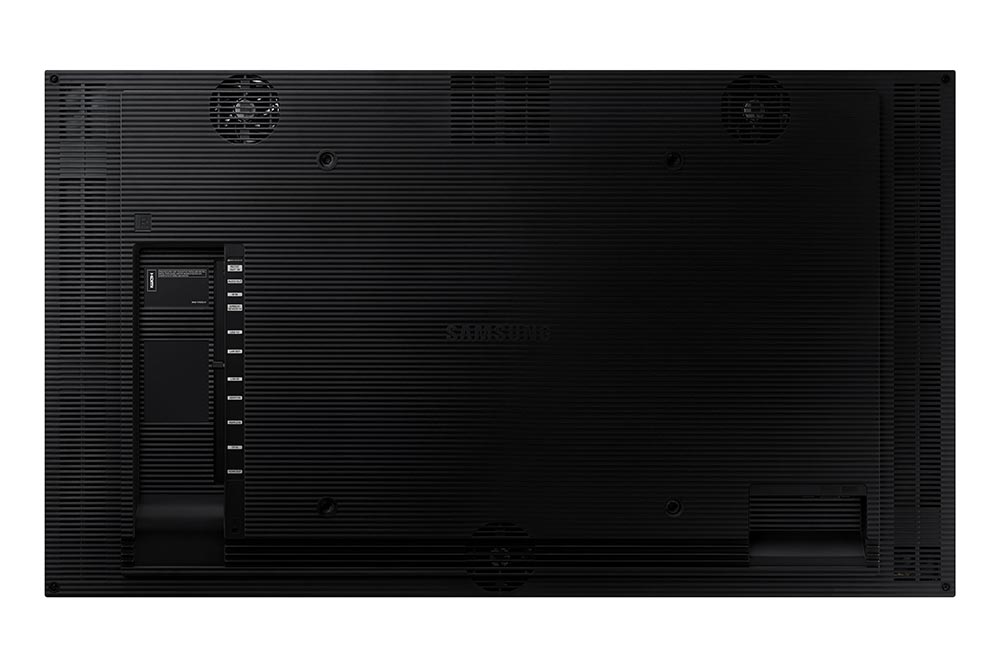

Samsung OM46B 46" Smart Outdoor Signage Back View

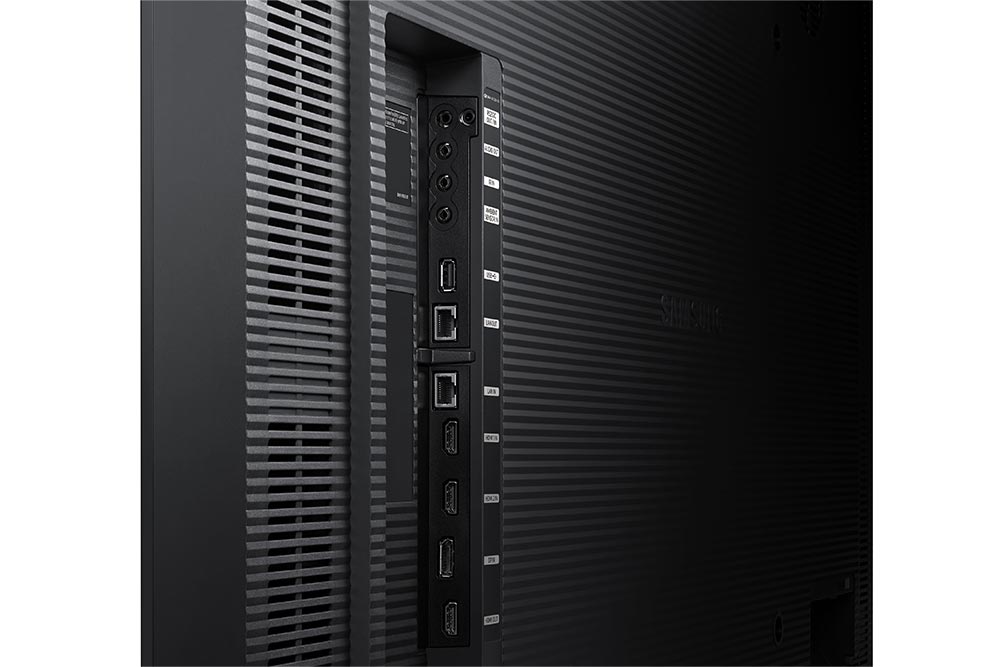

Samsung OM46B 46" Smart Outdoor Signage Inputs

KEY FEATURES

Vivid and visible even in direct sunlight in 4K UHD resolution
High brightness window displays that deliver flawless colors with 3,000nit
Slim design that complements the surroundings of any environment
Robust durability with IP5X-validated dust protection and functionality that mitigates overheating

46" 55"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

46"

Screen Size

ADS

Display Technlogy

4000 nit

Brightness

3 Year

Warranty

24/7

Run Time

Panel				Panel

Diagonal Size	55			Diagonal Size	46
Type	ADS			Type	VA
Resolution	3840x2160(16:9)			Resolution	1920*1080 (Full HD)
Pixel Pitch(mm)	0.315x0.315			Pixel Pitch(mm)	0.53x0.53
Active Display Area(mm)	1209.6(H) x 680.4(V)			Active Display Area(mm)	1018.08(H) x 572.67(V)
Brightness(Typ.)	3000 nit			Brightness(Typ.)	4000 nit
Contrast Ratio	1200:1			Contrast Ratio	6000:1
Viewing Angle(H/V)	N/A			Viewing Angle(H/V)	N/A
Response Time(G-to-G)	N/A			Response Time(G-to-G)	N/A
Color Gamut	72%			Color Gamut	72%
Operation Hour	24/7			Operation Hour	24/7
Haze	1%			Haze	0%

Connectivity				Connectivity

Input				Input
RGB		HDMI 2.0 (2)		RGB		HDMI 2.0 (2)
Video		N/A		Video		N/A
HDCP		HDCP2.2		HDCP		HDCP2.2
USB		USB 2.0 x 1		USB		USB 2.0 x 1
Output				Output
Video		HDMI 2.0		Video		HDMI 2.0
Audio		Stereo mini Jack		Audio		Stereo mini Jack

External Control		RS232C(in/out), RJ45 (in/out)		External Control		RS232C(in/out), RJ45 (in/out)
BT/WiFi		N/A / Yes		BT/WiFi		N/A / Yes

Power				Power

Power Supply		AC 100 - 240 V, 50/60 Hz		Power Supply		AC 100 - 240 V, 50/60 Hz
Power Consumption				Power Consumption
Max[W/h]		450		Max[W/h]		350
Typical[W/h]		245※ IEC 62087 measurement standard		Typical[W/h]		185※ IEC 62087 measurement standard
Sleep mode		0.5		Sleep mode		0.5

Mechanical Specification				Mechanical Specification

Dimension (mm)				Dimension (mm)
Set		1253.4 x 724.2 x 54.5		Set		1062 x 616.6 x 54.5
Package		1420 x 879 x 178		Package		1189 x 757 x 158
Weight (kg)				Weight (kg)
Set		23.1		Set		18.2
Package		29.1		Package		23
VESA Mount (mm)		400 x 400		VESA Mount (mm)		400 x 400
Bezel Width (mm)		19.1		Bezel Width (mm)		19.9

Operation				Operation

Operating Temperature	0 ℃ ~ 40 ℃	Humidity	10.0 % ~ 80.0 %	Operating Temperature	0 ℃ ~ 40 ℃	Humidity	10.0 % ~ 80.0 %

Feature				Feature

Key Features		N/A		Key Features		N/A
Orientation		Landscape / Portrait		Orientation		Landscape / Portrait
Remote Control		N/A		Remote Control		N/A
Special Features		H/W : Polarized Sun Glasses Viewable in any direction Auto Brightness Control with Ambient Brightness Sensor Temperature Sensor Clock Battery(80hrs Clock Keeping) Kensington Lock S/W : Auto Source Switching & Recovery RS232C/RJ45 MDC WiFi Module Embedded		Special Features		H/W : Polarized Sun Glasses Viewable in any direction Auto Brightness Control with Ambient Brightness Sensor Temperature Sensor Clock Battery(80hrs Clock Keeping) Kensington Lock S/W : Auto Source Switching & Recovery RJ45 MDC WiFi Module Embedded
Internal Player	Processor	Cortex A72 1.7GHz Quad-Core CPU		Internal Player	Processor	Cortex A72 1.7GHz Quad-Core CPU
	On-Chip Cache Memory	N/A			On-Chip Cache Memory	N/A
	Clock Speed	N/A			Clock Speed	N/A
	Main Memory Interface	N/A			Main Memory Interface	N/A
	Graphics	N/A			Graphics	N/A
	Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)			Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
	Multimedia	N/A			Multimedia	N/A
	IO Ports	N/A			IO Ports	N/A
	Operating System	Tizen 5.0 (VDLinux)			Operating System	Tizen 5.0 (VDLinux)

Certification				Certification

Safety		60950-1		Safety		60950-1
EMC		Class A		EMC		Class A
IP Rating		IP5x		IP Rating		IP5x

Accessory				Accessory

Included		Quick Setup Guide / Warranty Card / Power Cord / Remote Controller + Batteries / External ambient Sensor		Included		Quick Setup Guide / Warranty Card / Power Cord / Remote Controller + Batteries / External ambient Sensor
Optional				Optional
Stand		N/A		Stand		N/A
Mount		N/A		Mount		N/A
Specialty		N/A		Specialty		N/A

Media Player				Media Player

Media Player		N/A		Media Player		N/A

Download Specs PDF

The OMB Series

Increasingly, store owners and managers want to maximize the use of their retail environments, utilizing space in the most efficient and impactful way possible. Not only inside the store, but also on window displays which can capture the attention of passersby, while delivering content in the store too. This isn’t just in traditional retail stories either with a variety of spaces looking to utilize display technology, from banks to subway stations and more. Customers expect high-quality content and digital signage can help to meet this demand, quickly becoming a key consideration for all stores and customer environments.

Features

PROMOTE CONTENT IN ANY STOREFRONT WINDOW

Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

FOSTER BRILLIANT PRESENTATION FOR ALL

Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer viewing experience.

MARVEL AT THE LIFELIKE COLOR EXPRESSION

Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

MODERNIZE SPACE WITH SLIM DESIGN

Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

STREAMLINE CONTENT MANAGEMENT

Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

DURABLE PERFORMANCE

With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.
