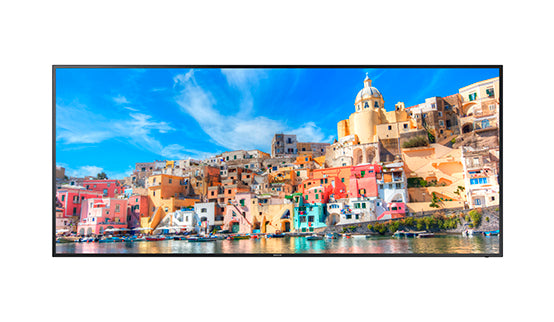

Name: Samsung QM105D 105″ Slim Direct-Lit 5K UHD Glare LED Display for Business with 16/7 Runtime, 500 Nit Brightness and 2 Year Warranty
Brand: Samsung
SKU: QM105D-SAMSUNG
Availability: InStock

Samsung QM105D 105″ Slim Direct-Lit 5K UHD Glare LED Display for Business with 16/7 Runtime, 500 Nit Brightness and 2 Year Warranty

KEY FEATURES

Life-Like Image Quality on a Large 105″ Display with UHD Resolution

Multi-Screen Splitting for Great Videoconferencing

Full 60Hz Content Playback Utilizing DisplayPort 1.2

Commercial Durability for Your Business

85" 105"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

4K UHD

Resolution

105"

Screen Size

120Hz E-LED BLU

Display Technlogy

500 nit

Brightness

3 Year

Warranty

16/7

Run Time

QM105D Set Dimension (W x H x D)(mm) : 2489.7 x 1073.2 x 104.1

Panel – QM105D


DIAGONAL SIZE	105″	TYPE	120Hz Slim Direct LED BLU
RESOLUTION	5120 x 2160	PIXEL PITCH(MM)	0.1595 x 0.4875 (mm)
ACTIVE DISPLAY AREA(MM)	2449.92(H) x 1033.56(V)	BRIGHTNESS(TYP.)	500 nit
CONTRAST RATIO	4000:1	VIEWING ANGLE(H/V)	178/178
RESPONSE TIME(G-TO-G)	8ms (Typ)	DISPLAY COLORS	16.7M(True Display)1.07B(Ditherd 10bit)
COLOR GAMUT	72%

Display – QM105D


DYNAMIC C/R	50,000:1	H-SCANNING FREQUENCY	30 ~ 81kHZ
V-SCANNING FREQUENCY	48 ~ 75Hz	MAXIMUM PIXEL FREQUENCY	148.5Mhz

Sound – QM105D


SPEAKER TYPE	Built in Speaker(15W + 15W)

Connectivity – QM105D


INPUT	RGB	D-Sub, DVI-D, Display Port 1.2 (2), Display Port 1.1 (1)
	VIDEO	HDMI (3)
	AUDIO	Stereo mini Jack
	USB	USB (S/W update only)
OUTPUT	RGB	N/A
	VIDEO	N/A
	AUDIO	Stereo mini Jack
	POWER OUT	N/A
EXTERNAL CONTROL		RS232C(in/out), RJ45
EXTERNAL SENSOR		IR

Power – QM105D


TYPE		Internal
POWER SUPPLY		AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION	MAX[W/H]	990
	TYPICAL[W/H]	W/W, US, KR 740, EU 715
	BTU(MAX)	3375.90
	SLEEP MODE	less than 0.5W (TBD)
	OFF MODE	less than 0.5W (TBD)

Mechanical Specification – QM105D


DIMENSION (MM)	SET	2489.7 x 1073.2 x 104.1
DIMENSION (MM)	PACKAGE	2614 x 1240 x 540
WEIGHT (KG)	SET	90Kg
WEIGHT (KG)	PACKAGE	170.3Kg
PACKAGE	N/A
VESA MOUNT		1600×600
PROTECTION GLASS		N/A
STAND TYPE		Foot Stand
MEDIA PLAYER OPTION TYPE		SBB
BEZEL WIDTH (MM)		19.1/19.1/19.1

Operation – QM105D


RECOMMENDED USAGE HOURS	16/7
OPERATING TEMPERATURE	N/A ℃ ~ N/A ℃	HUMIDITY	10.0 % ~ 80.0 %

Feature – QM105D


KEY FEATURES		UHD LFD Display
SPECIAL FEATURES		H/W: Temperature Sensor,Clock Battery(80hrs Clock Keeping), Built in Speaker(15W 2ch) S/W: FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Button Lock, DDC CI, DHCP with RJ45 MDC Urgent Message by MDC, Hot key option, Plug&Play (Initial Setting)
INTERNAL PLAYER	PROCESSOR	N/A
	ON-CHIP CACHE MEMORY	N/A
	CLOCK SPEED	N/A
	MAIN MEMORY INTERFACE	N/A
	GRAPHICS	N/A
	STORAGE (FDM)	N/A
	MULTIMEDIA	N/A
	IO PORTS	N/A
	OPERATING SYSTEM	N/A

Certification – QM105D


SAFETY	60950-1
EMC	Class A
ENVIRONMENT	N/A

Accessory – QM105D


INCLUDED		Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries, Wall Mount
OPTIONAL	STAND	(New Stand In-box)
	MOUNT	Included
	SPECIALTY	N/A

Media Player – QM105D


MEDIA PLAYER	SBB-DI or SBB-DA(Optional)

Download Specs PDF

The QM-D Series

With stunning 5K quality our large 105″ UHD QM-D Series display provides high pixel density, fine detail and exceptional stopping power. You can even display Full HD content in 5K via UHD upscaling. Whether it’s in your retail space, corporate boardroom or public area, you can make every impression count with this Samsung 5K display.

Features

STUNNING 4K PICTURE

5120 x 2160 resolution (5x the number pixels of Full HD 1080p) delivers life-like image quality on the QM105D. Experience a high-impact way to communicate in retail spaces, hospitality, corporate boardrooms, healthcare environments and more.

IMPACTFUL SCREEN

The QM105D features a big, beautiful 105″ UHD panel, for engaging images and messages that cannot be ignored. Think big and deliver.

UPSCALING TECHNOLOGY

Even if you don’t have the best quality content, the QM105D upconverts low-resolution content to create the sharpest images possible. You can even display Full HD content in 5K via UHD upscaling.

MULTI SCREEN DELIVERS MULTIPLE MESSAGES

The Picture by Picture function allows you to display up to 4 content feeds at once, each supporting Full HD 1080p resolution. The QM105D is ideal for retail, videoconferencing and command control applications.

60HZ (FPS) PLAYBACK

DisplayPort 1.2 ports allow you to display full 60 Hz (FPS) content playback.

16/7 OPERATION, 3 YEAR WARRANTY

Designed specifically for long hours of reliable operation and protected by a
3-year warranty, Samsung QMD commercial displays deliver peace of mind.
