Name: Samsung’s 55″ OMN series was designed with a storefront window display in mind
Brand: Samsung
SKU: OM55N-SAMSUNG
Availability: OutOfStock

Samsung’s 55″ OMN series was designed with a storefront window display in mind

KEY FEATURES

Ultra-high brightness emphasizing content, regardless of the lighting conditions
Slim and contemporary design that seamlessly integrates into any display window
Easy content management with a built-in management solution
Two options – one or double-sided screen – available to fit the businesses needs

46" 55" 75"

The Samsung DB55E 55″ DB-E Series TV has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Samsung UE46C Model Specifications (Discontinued)

1080p FHD

Resolution

55"

Screen Size

120Hz E-LED BLU

Display Technology

4000 nit

Brightness

3 Year

Warranty

24/7

Run Time

PANEL	OM55N
Diagonal Size	55″
Type	120Hz E-LED BLU
Resolution	1920×1080 (16:9)
Pixel Pitch(mm)	0.530 x 0.530
Brightness(Typ.)	4,000 cd/m2
Contrast Ratio	5000:1
Viewing Angle(H/V)	178/178
Response Time(G-to-G)	6ms
Display Colors	8 bit – 16.7M
Color Gamut	72%
Operation Hour	24/7

DISPLAY
Dynamic C/R	100,000:1
H-Scanning Frequency	30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
V-Scanning Frequency	30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
Maximum Pixel Frequency	533.25MHz (DP), 594MHz (HDMI)

CONNECTIVITY
Input RGB	Display Port 1.2 (1)
Input Video	HDMI2.0 (2)
Input HDCP	HDCP 2.2
Input USB	USB 2.0 (1)
Output RGB	HDMI 2.0
Output Video	Yes
Output Audio	Stereo Mini Jack
External Control	RS232C (In/Out), RJ45 (In/Out)
External Sensor	Detachable Type (IR, Ambient)

POWER CONSUMPTION
Max[W/h]	450
Typical[W/h]	W/W(EU) : 210US/KOR/Etc : 330※ Etc: CHINA, TAIWAN, BRA, CIS
BTU(Max)	1536
Sleep mode	less than 0.5W
Off mode	less than 0.5W

MECHANICAL SPECIFICATION
Dimension (mm) Set	1253.4 x 724.2 x 54.5 mm
Dimension Package	1420 x 879 x 178 mm
Weight (kg) Set	23.1 kg
Weight Package	28 kg
VESA Mount (mm)	400 x 400 mm
Bezel Width (mm)	19.9 (even)

OPERATION	0℃~ 30℃ (DIRECT SUNLIGHT), 0℃~ 40℃ (W/O DIRECT SUNLIGHT)
Humidity	10~80%

FEATURE
Key Features	High brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0
Special Features	IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock, WiFi Module Embedded

INTERNAL PLAYER
Processor	Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed	1.7GHz
Main Memory Interface	2.5GB LPDDR4 1.5GHz 64bit
Graphics	Graphic resolution : 1920×1080 Output resolution : up to 3840×2160 (Scale up from graphic processing result.) – Supports OpenGL ES
Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia	Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder – AC3 (DD), MPEG
IO Ports	USB 2.0

CERTIFICATION
Safety	CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
EMC	FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

ACCESSORY
Included	Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor

DOWNLOAD PDF SPECS

The OM55N Series

The Samsung OM55N display was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit. With a modern configuration, the display has a slim design and is compatible with any store widow without disrupting a customer’s shopping experience. Included in the Samsung OM55N is an embedded software solution for operational efficiency and content management, ensuring retailers can manage its displays effortlessly. Request a quote for this Samsung SMART signage 55″ display.

Model LH65DMEPLGA Features

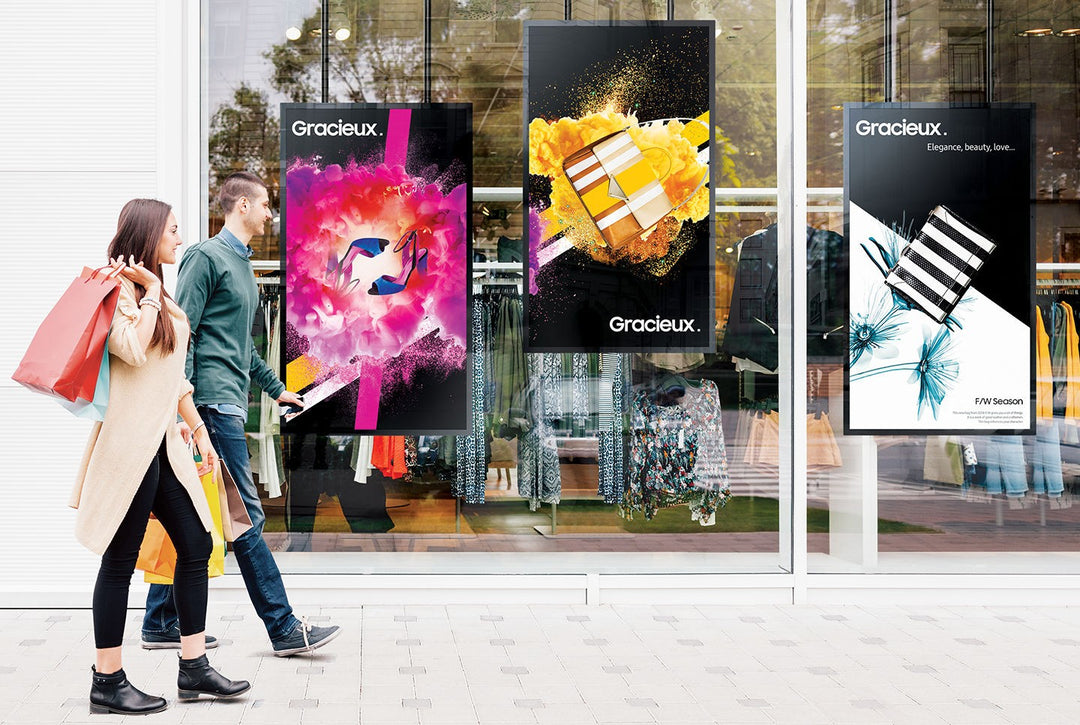

PROMOTE CONTENT IN ANY STOREFRONT WINDOW
Samsung’s OM55N was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

FOSTER BRILLIANT PRESENTATION FOR ALL
Featuring 4,000nit brightness and a high contrast ratio of 5,000:1, the OM55N display remains bright and clear, delivering an uncompromised picture that will capture the attention of potential customers – even in direct sunlight.

MODERNIZE SPACE WITH SLIM DESIGN
The Samsung OM55N SMART signage 55″ display delivers an immersive content with a remarkably slim 54.5mm depth. Its compact size makes the display a natural extension of the store, as opposed to an addition that ties up valuable space.

STREAMLINE CONTENT MANAGEMENT
The OM55N embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allowing for easy content management and ensuring seamless content transition and playback.

DELIVER VIBRANT CONTENT WITH EFFICIENCY
The Samsung OM55N addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.

DURABLE PERFORMANCE
With IP5X-validated dust protection and a proprietary 3-step process to prevent damage from overheating, OM55N displays stand the test of time.
