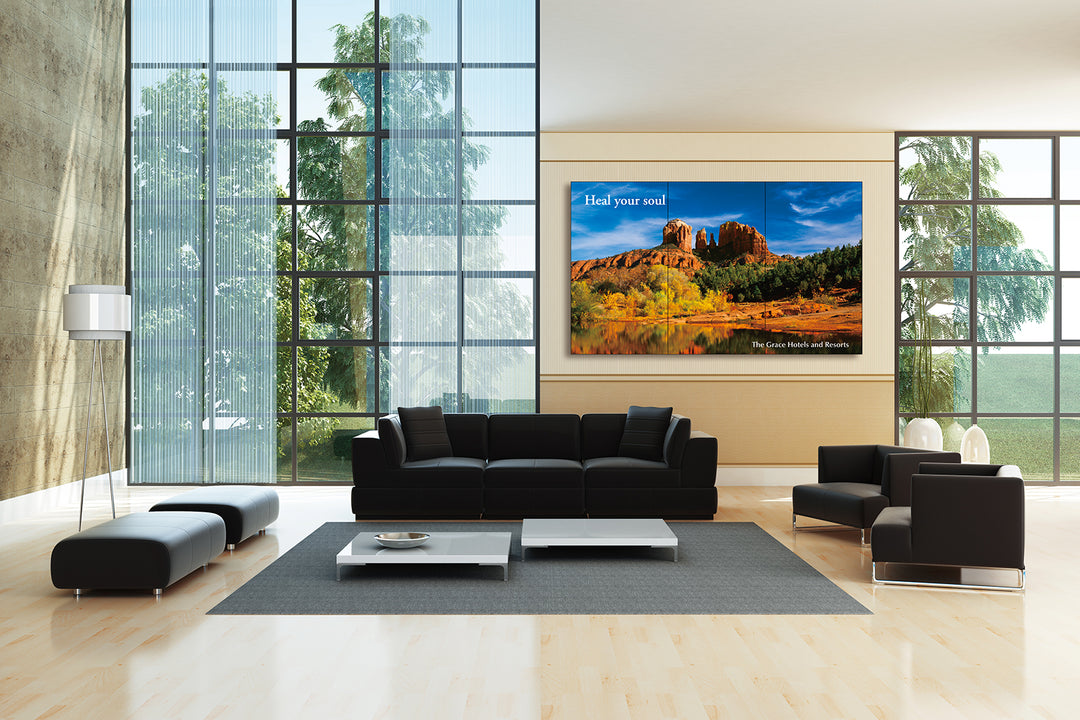

Sharp PN-V701 3 Display Video Wall Example

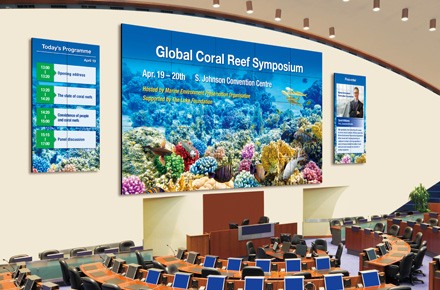

Sharp PN-V701 Video Wall Example

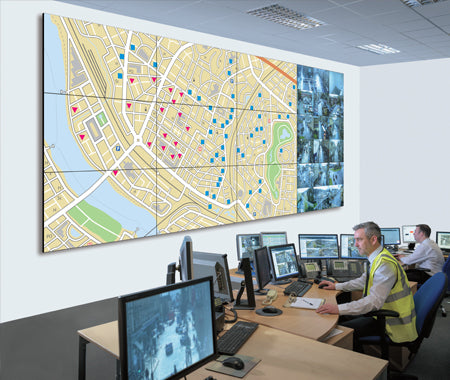

Sharp PN-V701 Command Center Video Wall

Sharp PN-V701 – 70-inch Monitor for Compelling Video Walls


  • 70″ Class (69.5″ diagonal) Screen Size
  • World’s Slimmest Bezel on a 70″ Diagonal Class LCD Monitor for virtually seamless video wall displays.
  • Full Array LED Backlight
  • High Resolution
  • Enlarge (Zoom) Display Mode
  • Compatible with Third-Party Video Wall Processors
  • Choice of Installation Mode – for use in landscape, portrait and “face-up/face-down” installations.
  • Built-in 10 Watt per Channel Amplifier – for use with external stereo speakers.
  • Compatible with SDSS Sharp Digital Signage Software
  • ENERGY STAR® Qualified – with exceptionally low power consumption.
  • 24/7 Certified – for use in most commercial applications.

Model Specifications

1080p FHD



Screen Size

Direct View LCD

Display Technlogy


Run Time

700 nit


3 Year


INSTALLATION Landscape / Portrait
LCD PANEL 70-inch-class (69 1/2-inch [176.6 cm] diagonal) UV2A LCD
Max. Resolution 1,920 x 1,080 pixels
Max. Display Colours (approx.) 1.06 billion colours
Pixel Pitch 0.802 x 0.802 mm
Brightness*1 700 cd/m2
Contrast Ratio 4,000:1
Viewing Angles (H/V) 178°/178° (CR less than 10)
ACTIVE SCREEN AREA (W X H) 1,538.9 X 865.6 MM (60 9/16″ X 34 1/16″)
Response Time 6 ms (grey to grey, avg.)
Backlight LED, full array
Computer Input Video Analogue RGB (0.7 Vp-p) [75 Ω], Digital (DVI 1.0 standard-compliant), DisplayPort™ 1.2, HDMI
Synchronisation Horizontal/vertical separation (TTL: positive/negative), Sync-on-green*2, Composite sync*2 (TTL: positive/negative)
Input Terminals HDMI™*4 x 2, Mini D-sub 15-pin x 1*5, DisplayPort™ x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C (D-sub 9-pin) x 1, Control kit terminal x 1, DVI-D 24-pin (HDCP compatible) x 1
Output Terminals DisplayPort*6 x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C (D-sub 9-pin) x 1
Input/Output Terminals LAN: 10Base-T/100Base-TX x 1
Power Supply 100 V – 240 V AC, 50/60 Hz
Power Consumption 380 W
Environmental Conditions 0°C to 40°C
Dimensions (W x D x H) (approx.)
(display only)
1,543.7 x 122 x 870.4 mm (60 3/4″ x 4 13/16″ x 34 1/4″)
WEIGHT (APPROX.) 37.0 KG (81.6 LBS)
Main Accessories AC power cord, cable clamp x 6, CD-ROM, set-up manual, sticker x 2 (for concealing mounting hole of remote control sensor box)

The PN-V701 Series

Discover the Power of Expression of Sharp’s 70-inch Monitor for Compelling Video Walls. Just imagine the power of a video wall built out of the PN-V701. Huge, high-impact video walls can be created using fewer monitors with less bezel interruption across the entire on-screen image. And with upgraded colour calibration technology— SHARP Advanced UCCT—the PN-V701 gives high-quality video wall solutions that are sure to attract a crowd. Specifically for use in multi-monitor installations. Inquire about the Sharp PN-V701 video wall monitor today!

Key Features


The Sharp PN-V701 video wall was developed specifically for use in multi-monitor installations in either portrait or landscape orientation. Thanks to its combined bezel width of just 4.4 mm*, large images on a video wall appear natural and almost seamless. The grand scale of the 70-inch monitor allows you to build video walls with fewer monitors and fewer bezels, which serves to minimize the non-displayed area. Whether in an airport, railway station, shopping mall, or other public spaces, the Sharp PN-V701 video wall expands the creative possibilities of visual communication.


The PN-V701 incorporates Sharp’s UV2A* technology to ensure highly efficient use of light from the backlight and prevent light leakage, resulting in truly bright whites and extremely deep blacks. The LCD panel also boasts 1,920 (H) x 1,080 (V)-pixel full HD resolution, making everything from fine text to intricate graphics stunningly crisp and clear. A brightness of 700 cd/m2 supports the PN-V701 in its digital signage duties. Four PN-V701 monitors set up in a 2 x 2 configuration, for example, can beautifully render every single pixel of 4K Ultra HD (3,840 x 2,160-pixel) content in a form equivalent to a huge 140-inch monitor. What’s more, the PN-V701 employs SHARP Advanced UCCT (Uniform Colour Calibration Technology) to achieve brilliant uniformity of colour and brightness across the entire video wall.


When high-speed video is played on a video wall composed of multiple monitors, slight image misalignments between vertically placed monitors can occur. As a countermeasure, the Inverse Scan function comes standard with this Sharp video wall display (PN-V701). This corrects image misalignments by alternating the scanning direction between vertically adjacent monitors, creating smooth and natural images on a large video wall.


With Mirror Display mode*, the same image can be displayed on a daisy chain of PN-V701 monitors for the powerful impact of visual repetition.


PN-V701 Picture-in-Picture (PIP) mode allows an AV-sourced image to be displayed within a PC-sourced one (or vice versa), while Picture-by-Picture (PbyP) mode puts images from AV and PC sources side by side for split-screen viewing.


The PN-V701 was developed specifically with video wall installations in mind. With its combined bezel width of just 4.4mm, large images on a video wall appear nearly seamless. The 69.5" diagonal screen allows you to build video walls with fewer monitors, and therefore fewer bezels, minimizing non-functional areas of the video wall.


  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
