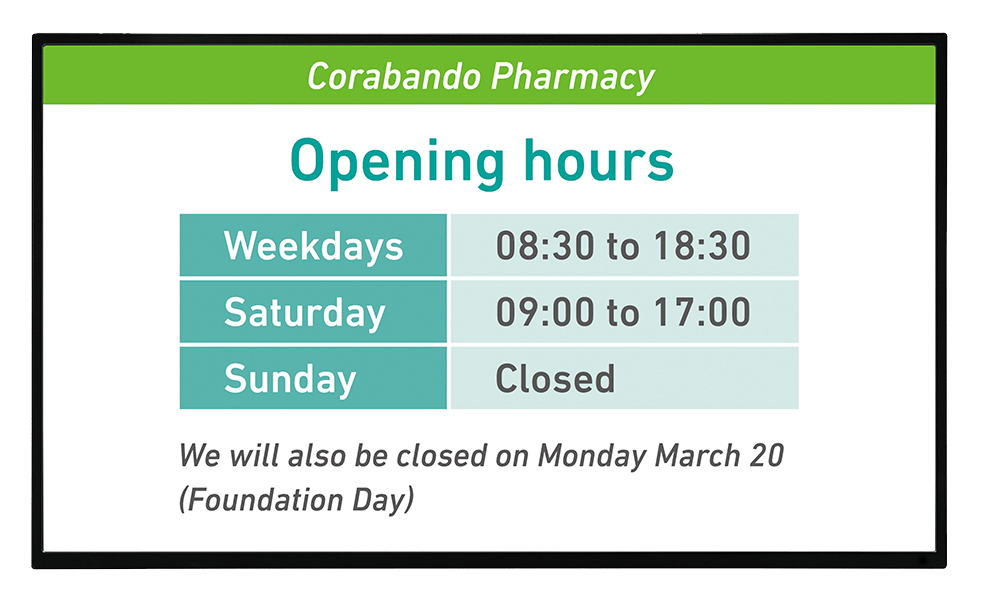

Sharp PN-Y326 Front View

Sharp PN-Y326 – 32" slimline LCD digital signage monitors

PN-Y326-SHARP

KEY FEATURES
  • 32″ Class (31.6″ diagonal) Screen Size
  • Brilliant High Definition (1920 x 1080) LED Display
  • Landscape, Portrait, Face-up, Face-down Operation
  • Landscape and Portrait Mode Compatible
  • SHARP Content Distributor Software
  • Engineered for 24/7 Commercial Use
  • 400 cd/m2 Brightness; 1,100:1 Contrast Ratio
  • Built-in 5W per Channel Stereo Audio System
  • Built-in USB/SD Card Media Player

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

32"

Screen Size

Direct View LCD

Display Technlogy

24/7

Run Time

400 nit

Brightness

3 Year

Warranty

INSTALLATION Landscape / Portrait / Face-up / Face-down
LCD PANEL 32-inch widescreen (31 9/16-inch [80.13 cm diagonal) TFT LCD
Max. Resolution 1,920 x 1,080 pixels
Max. Display Colours (approx.) 16.77 million colours
Pixel Pitch 0.364 x 0.364 mm
Brightness*1 400 cd/m2
Contrast Ratio 1,100 : 1
Viewing Angles (H/V) 178°/178° (CR less than 10)
ACTIVE SCREEN AREA (W X H) 698.4 X 392.0 MM (27 1/2″ X 15 7/16″)
Response Time 10 ms (grey to grey, avg.)
Backlight LED, full array
Computer Input Video Analogue RGB (0.7 Vp-p) [75Ω], Digital (conforms to DVI 1.0 standards), HDMI™
Synchronisation Horizontal/vertical separation (TTL: positive/negative)
PLUG & PLAY VESA DDC2B
Input Terminals DVI-D 24 pin x 1 (HDCP compatible), Mini D-sub 15-pin x 1*3, HDMI x 1 (1080p compatible), RS-232C x 1, 3.5 mm-diameter mini stereo jack x 2, USB x 1 (image, video, audio)*4, SD card x 1 (image, video, audio)*4
Output Terminals DVI-D 24 pin x 1 (HDCP compatible), RS-232C x 1, 3.5 mm-diameter mini stereo jack x 1
Input/Output Terminals LAN: 10Base-T/100Base-TX x 1
Built-In Speakers 7 W + 7 W
Power Consumption 69 W
Power Supply 100V – 240V AC, 50/60 Hz
Environmental Conditions 0°C to 40°C
Dimensions (W x D x H) (approx.)
(display only)
724.5 x 56 x 424 mm (28 1/2″ x 2 3/16″ x 16 11/16″)
WEIGHT (APPROX.) 6 KG (13.2 LBS)
Main Accessories AC power cord, remote control unit, battery (AA size x 2), set-up manual, cable clamp x 2, cover screw x 2, logo sticker, USB flash drive cover*5, SD memory card cover

The PN-Y326 Series

Sharp offers an effective and convenient solution for digital signage. The 32″ Class (31.6″ diagonal) Sharp PN-Y326 LCD video wall monitor is designed for ease of use and flexibility in a variety of settings. SHARP Content Distributor software supports convenient content distribution and management via a local area network. Whether in a retail, public, or office setting, this monitor can help convey your message and make an eye-catching impression.

Key Features

Sharp PN-Y326 Excellent Image Quality

Full HD (1,920 × 1,080) PN-Y326 resolution brings images to life with vivid, true-to-life details. Everything from thin lines to fine text to photographic images can be displayed in stunning clarity.

Simple and Stylish Design

A narrow 9.5-mm* bezel keeps the emphasis on onscreen content, so that information is conveyed clearly and attractively. The simple and stylish Sharp PN-Y326 video wall monitor design matches a variety of locations and business settings, from small shops to large corporations and industrial environments.

Adaptable to Various Settings

The Sharp PN-Y326 video wall monitor, whether in a landscape or portrait orientation, these monitors can be installed face up, face down, or tilted forward or backward at an angle of up to 90 degrees. Such flexibility helps you to incorporate the monitors into a wider-than-ever variety of settings.

Easy and Versatile Signage Support

Sharp PN-Y326 LCD video wall monitors support easy daily usage and versatile content distribution. Simply insert a USB memory device or SD card for plug-and-play operation. Using a specified wireless SD card equipped with an original Sharp HTML application, you can distribute content wirelessly from a PC or mobile device. Furthermore, SHARP Content Distributor software supports convenient content distribution and management via network. Thanks to their versatile signage capabilities, these Sharp video wall monitors make it easy to convey messages in public spaces or commercial locations, or promote internal communication in the office.

Autoplay via Media Player

Displaying still images or videos couldn’t be easier. Just insert a USB memory device or SD card into the LCD monitor and the built-in media player starts playing your content right away. There’s no need for a PC and cables. It’s easy for anyone to operate.

Easy Overwrite via Wireless LAN

With a specified wireless SD card*, you can wirelessly overwrite the content stored on the card. Using a wireless LAN makes it easy to distribute content from a PC, tablet or other mobile device, giving you a convenient data-transmission experience. There’s no need to insert or remove the card at the back of the monitor when you want to overwrite the content. This not only saves you time, it also gives you more freedom to install the Sharp video wall monitor where it’s hard to reach—for example in a high place.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
