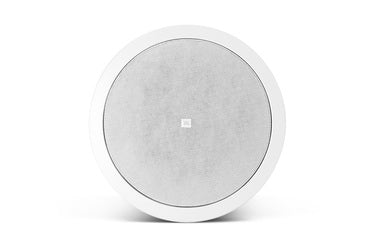

JBL Control 26CT 6.5" Ceiling Loudspeaker Transducer Assembly
CONTROL26CT-JBL
Description

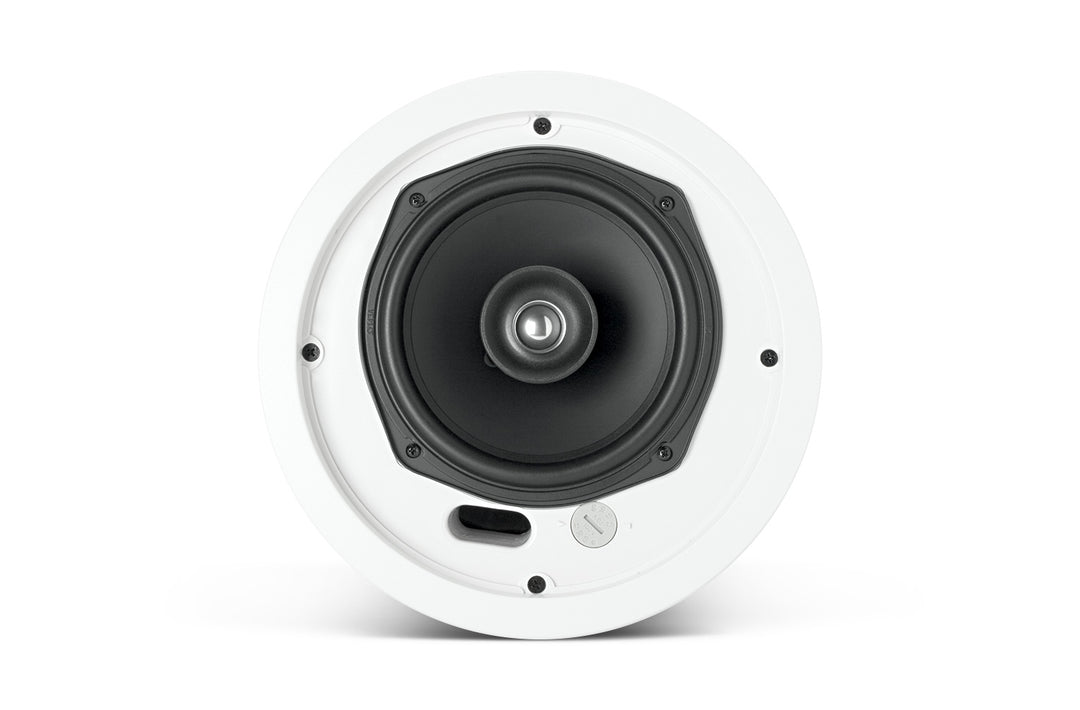

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.
Features
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Specifications
| Frequency Range | 75 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 110° conical |
| Directivity Index (DI) | 4.6 dB |
| Maximum SPL (1m) | 107 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Dimensions (H x Dia) | 210 mm x 252 mm (8.3 in x 9.9 in) |
| Net Weight (each) | 4.2 kg (10 lbs) |
| Shipping Weight (pair) | 9.7 kg (21 lbs) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 220 mm (8.75 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
