GE AZ65H12DAB 12,100/11,900 BTU Cooling and Electric Heat Unit, 5 Year Warranty
AZ65H12DAB-GE
DESCRIPTION
GE Zoneline AZ65H12DAB sets the design standard for PTACs. We invented and introduced the Zoneline in 1961 and the tradition continues with our newest models, the industry’s quietest PTACs. In the hospitality industry, quiet and comfortable rooms are key to guest satisfaction. Guests demand a quiet air conditioner, so our design includes an extra seal around the edge to keep excess noise (and unwanted dirt) outside, a heavy duty mastic barrier for additional noise reduction and two DC fan motors for quiet operation. Independent third party testing confirms GE Zoneline is the quietest PTAC against leading competitors.
KEY FEATURES
- Cooling capacity 12,100/11,900 BTU
- Dehumidification 3.7 pints/hour
- Reverse heat cycle 10,500/10,400 BTU
- Heat pump efficiency 3.6/3.6 COP
- Indoor fan CFM (high/low) 449/300
SPECIFICATIONS
| CAPACITY | |
|---|---|
| Cooling BTUH (MIN) | 11900.0 Btu |
| Cooling BTUH (MAX) | 12000.0 Btu |
| Cooling EER (BTUH / Watt) | 11.9/11.9 |
| CFM Indoor Fan High | 410 |
| CFM Indoor Fan Low | 300 |
| Dehumidification (pts./hr.) | 3.7 |
| Heating – Reverse Cycle – BTUH | 10500/10400 |
| Vent CFM (high fan at zero ESP) | 45 |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20 13/16 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
| POWER / RATINGS | |
| Cooling – Amperes; F.L. – Cooling | 4.5/4.9 |
| Cooling – Amperes; L.R. | 29.5 |
| Cooling – Watts | 1005/1000 |
| Heating – Reverse Cycle – Amps | 3.8/4.0 |
| Heating – Reverse Cycle – COP | 3.6/3.6 |
| Heating – Reverse Cycle – Watts | 850/840 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
ADDITIONAL FEATURES
| Sensible Heat Ratio | 64% | Chassis Type | Slide-In |
| Control Type | Coverless Backlit White LED Touch Controls | Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes | Fan Cycle Switch | Yes |
| Fan Motor | 2 | Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

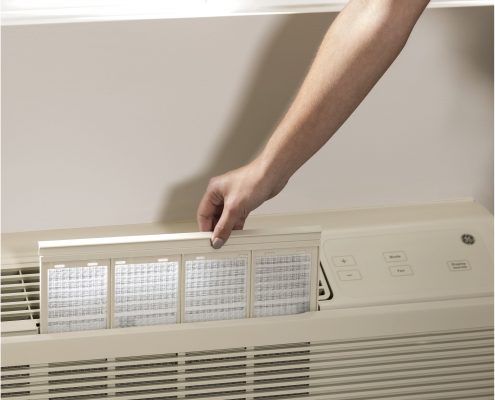

Filter Type | Rigid Frame Slide-Out |
| Heat – Cool | Yes | Louver Style | Reversible |
| Manual Vent Control | Hidden | Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step | Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control – 3 Positions Vent Air Filter |
Temperature Range |
