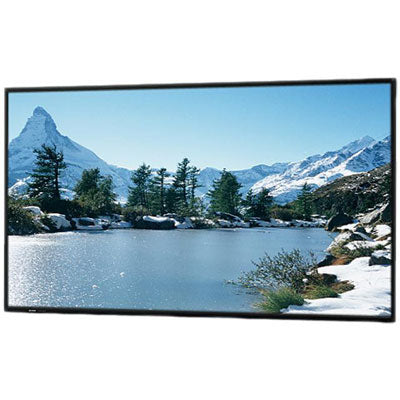

Sharp PN-R703 Front View Horizontal
Sharp PN-R703 Front View Vertical

Sharp PN-R903A professional LED display for indoor digital signage

PNR903-SHARP

KEY FEATURES
  • Magnificent 90″ Class (90-1/16″ diagonal) Screen Size
  • Brilliant High Definition (1920 x 1080) LED Display
  • Optional Media Player PC
  • Built-in 10W per Channel Stereo Audio System
  • Landscape and Portrait Mode Compatible
  • Engineered for 24/7 Commercial Use
  • 4000:1 Contrast Ratio
  • 700 cd/m2 Brightness

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

90"

Screen Size

LCD with LED Backlight

Display Technlogy

700 nit

Brightness

3 Year

Warranty

24/7

Run Time

INSTALLATION Landscape / Portrait / Face-up / Face-down
LCD PANEL 42″ Class (41.9″ diagonal) TFT LCD
Max. Resolution 1,920 x 1,080 pixels
Max. Display Colours (approx.) 1.07 billion colors
Pixel Pitch 0.483 x 0.483 mm
Brightness*1 700 cd/m2
Contrast Ratio 1,300 : 1
Viewing Angles (H/V) 178°/178° (CR less than 10)
ACTIVE SCREEN AREA (W X H) 36 9/16″ X 20 9/16″
Response Time 8 ms (grey to grey, avg.)
Backlight LED, edge lit
Computer Input Video HDMI , Analog RGB
Synchronisation Horizontal/vertical separation (TTL: positive/negative), Sync on green*2, Composite sync (TTL: positive/negative)*2
PLUG & PLAY VESA DDC2B
Input Terminals DisplayPort x 1, DVI-D 24-pin (HDCP compatible) x 1, Mini D-sub 15-pin x 1, HDMI (PC/AV signal compatible) x 2, RS-232C x 1, 3.5 mm-diameter mini stereo jack x 1
Output Terminals DisplayPort x 1, 3.5 mm-diameter mini stereo jack x 1, RS-232C x 1
Input/Output Terminals LAN: 10Base-T/100Base-TX x 1
Speaker Output 5 V, 2 A (5V, 500 mA when the expansion slot is used) (USB type-A connector)
Power Supply 100V – 240V AC, 50/60 Hz
Power Consumption 175 W
Environmental Conditions 0°C to 40°C
Dimensions (W x D x H) (approx.)
(display only)
37 3/8″ x 2 1/4″ x 21 3/8″
WEIGHT (APPROX.) 34.2 LBS
Accessories AC power cord, remote control unit, battery (AAA size x 2), CD-ROM, set-up manual, cable clamp x 2, ceiling mounting bracket x 4, ceiling mounting bracket fixing screw x 4,
logo sticker

The PN-R Series

Amply sized and attractively designed, Sharp’s PN-R703 professional LCD monitors have the thin prole, high brightness, and low power consumption to accommodate a wide range of indoor digital signage applications. Exceptionally thin and lightweight, these streamlined monitors measure only 39.4 mm at their thickest point, making for easy, eye-pleasing installation. And with 700 cd/m2 brightness and edge-lit LED backlighting, PN-R703/R603 monitors can be counted on for reliable, energy-efcient operation.

Features

THIN, LIGHTWEIGHT DESIGN

Sharp PN-R703 70 Inch monitors owe their exceptionally thin profiles to edge-lit LED backlighting, where LED elements are located at the edges of the panel. Streamlined for a pleasing appearance and minimal protruding parts, these monitors measure only 39.4 mm at their thickest point and weigh only 43/32 kg, making for easy placement in offices, public spaces, stores, and other commercial establishments. Stylishly thin profiles also enable attractive wall mounting in a choice of portrait or landscape mode on the Sharp PN-R703 70 Inch Commercial Signage Display.

PROFESSIONAL STANDARD IMAGE QUALITY

The Sharp PN-R703’s 70-inch LCD panel incorporates Sharp’s UV2A technology, which ensures highly efficient use of light from the backlight and prevents light leakage for the display of truly bright whites and extremely deep blacks. A brightness of 700 cd/m2 supports these 70 inch LCD monitors in their digital signage duties.

ENERGY EFFICIENT

Edge-lit LED backlighting on Sharp PN-R703 70 inch commercial signage display monitors help ensure reliable performance with low power consumption. In fact, PN-R703 monitors consume roughly 32.5/50% less energy than conventional CCFL-backlight displays.* And the PN-703 conforms to the ENERGY STAR® programmed, an international system for identifying energy-efficient products.

INTERFACE EXPANSION

A standard-equipped interface expansion board gives the Sharp PN-R703 70 Inch Commercial Signage Display a comprehensive range of input/output jacks, including the DisplayPort interface.

CHOICE OF INSTALLATION MODE

Sharp PN-R703 70 Inch Commercial Signage Displays offer a choice of landscape or portrait installation, allowing customers to select the mode that best suits their display content and application. While portrait installation offers the look and impact of a poster, landscape installation puts wide images on vivid display

24/7 OPERATION

Built solid, Sharp PN-R903/R703/R603 monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.
