Sharp PN-R703 Front View Vertical
Sharp PN-R703 Front View Horizontal

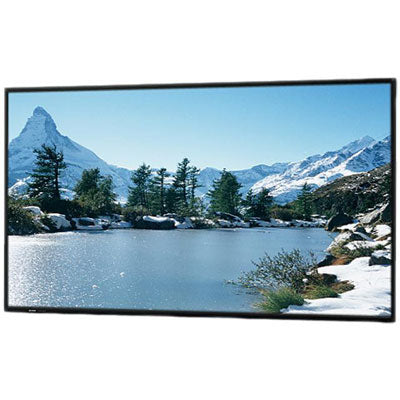

Sharp PN-R703 professional LED display for indoor digital signage

PN-R703-SHARP

KEY FEATURES
  • 70″ Class (69 – 1/2″ diagonal) Screen Size
  • Brilliant High Definition (1920 x 1080) LCD Display
  • Intel® Mini-OPS Expansion Slot supports the optional PN-ZB03H HDBaseT™ 2.0 and PN-ZB03W Wireless Expansion Boards
  • Landscape, Portrait, Face-up, Face-down Operation
  • Built-in 10 Watt per Channel Stereo Speakers
  • Engineered for 24/7 Commercial Use
  • 700 cd/m2 Brightness; 5,000:1 Contrast Ratio
  • Crestron Connected™ Compatibility

Unlock Exclusive Savings!  Add multiple items to your cart and our reps will work with you to get the best possible price for your entire project. You can update quantities in the cart.

Model Specifications

1080p FHD

Resolution

70"

Screen Size

LCD with LED Backlight

Display Technlogy

24/7

Run Time

700 nit

Brightness

3 Year

Warranty

INSTALLATION Landscape / Portrait
LCD PANEL 70-inch widescreen (176.6 cm diagonal) UV2A LCD
Max. Resolution 1,920 x 1,080 pixels
Max. Display Colours (approx.) 1.06 billion colors
Pixel Pitch 0.802 x 0.802 mm
Brightness*1 700 cd/m2
Contrast Ratio 4,000 : 1
Viewing Angles (H/V) 176°/176° (CR less than 10)
ACTIVE SCREEN AREA (W X H) 1,538.9 X 865.6 MM (60 9/16″ X 34 1/16″)
Response Time 6 ms (grey to grey, avg.)
Backlight LED, edge lit
Computer Input Video Analogue RGB (0.7 Vp-p) [75], Digital (conforms to DVI 1.0 standards), DisplayPort 1.1
Synchronisation Horizontal/vertical separation (TTL: positive/negative), Sync on green, Composite sync (TTL: positive/negative
PLUG & PLAY VESA DDC2B
Input/Output Terminals LAN x 1
Power Supply 100V – 240V AC, 50/60 Hz
Power Consumption 270 W
Environmental Conditions 0°C to 40°C
Dimensions (W x D x H) (approx.)
(display only)
1,578 x 39.4 x 916 mm (62 1/8″ x 1 9/16″ x 36 1/16″)
WEIGHT (APPROX.) 94.8 LBS

The PN-R703 Series

Amply sized and attractively designed, Sharp’s PN-R703 professional LCD monitors have the thin prole, high brightness, and low power consumption to accommodate a wide range of indoor digital signage applications. Exceptionally thin and lightweight, these streamlined monitors measure only 39.4 mm at their thickest point, making for easy, eye-pleasing installation. And with 700 cd/m2 brightness and edge-lit LED backlighting, PN-R703/R603 monitors can be counted on for reliable, energy-efcient operation.

Key Features

THIN, LIGHTWEIGHT DESIGN

Sharp PN-R703 70 Inch monitors owe their exceptionally thin profiles to edge-lit LED backlighting, where LED elements are located at the edges of the panel. Streamlined for a pleasing appearance and minimal protruding parts, these monitors measure only 39.4 mm at their thickest point and weigh only 43/32 kg, making for easy placement in offices, public spaces, stores, and other commercial establishments. Stylishly thin profiles also enable attractive wall mounting in a choice of portrait or landscape mode on the Sharp PN-R703 70 Inch Commercial Signage Display.

PROFESSIONAL STANDARD IMAGE QUALITY

The Sharp PN-R703’s 70-inch LCD panel incorporates Sharp’s UV2A technology, which ensures highly efficient use of light from the backlight and prevents light leakage for the display of truly bright whites and extremely deep blacks. A brightness of 700 cd/m2 supports these 70 inch LCD monitors in their digital signage duties.

ENERGY EFFICIENT

Edge-lit LED backlighting on Sharp PN-R703 70 inch commercial signage display monitors help ensure reliable performance with low power consumption. In fact, PN-R703 monitors consume roughly 32.5/50% less energy than conventional CCFL-backlight displays.* And the PN-703 conforms to the ENERGY STAR® programmed, an international system for identifying energy-efficient products.

INTERFACE EXPANSION

A standard-equipped interface expansion board gives the Sharp PN-R703 70 Inch Commercial Signage Display a comprehensive range of input/output jacks, including the DisplayPort interface.

CHOICE OF INSTALLATION MODE

Sharp PN-R703 70 Inch Commercial Signage Displays offer a choice of landscape or portrait installation, allowing customers to select the mode that best suits their display content and application. While portrait installation offers the look and impact of a poster, landscape installation puts wide images on vivid display

24/7 OPERATION

Built solid, Sharp PN-R903/R703/R603 monitors are ideal for use in 24-hour stores and in other demanding professional applications that require around-the-clock operation seven days a week.

FAQ

  1. Quality and Performance: Professional displays are typically built to higher standards with superior image quality and performance. They often feature advanced technologies like high color accuracy, wider color gamut, deeper black levels, and better image processing capabilities.
  2. Durability and Reliability: Professional displays are engineered to withstand continuous and demanding use in commercial environments. They are built with higher-quality components, have better heat management systems, and are designed to operate for extended hours without compromising performance or longevity.
  3. Connectivity and Customization: Professional displays often offer a wider range of input and output options to accommodate various professional devices and workflows. They may include specialized ports for connecting professional-grade cameras, video editing equipment, and other peripherals.
