Name: Samsung DM75E-BR 75" E-Board Interactive Whiteboard, FHD, 380 Nits, 24/7, 3 Year Warranty
Brand: Samsung
SKU: DM75E-BR-SAMSUNG
Availability: OutOfStock

Samsung DM75E-BR 75" E-Board Interactive Whiteboard, FHD, 380 Nits, 24/7, 3 Year Warranty

KEY FEATURES

Interactive whiteboard style design with a pre-assembled touch overlay from factory
Infrared touch screens that allows for dual drawing capabilities, enabling up to 10 touch points
All-in-one, PC-less E-board display solution with an embedded MagicIWB S2 software
Compatibility with an optional MagicIWB I2 software for advanced E-board functionality

VIDEOS

DOWNLOADS

BROCHURES

2016 Samsung e-Board Leaflet_Digital ver.

DME-BM-150710-MKedit-Web

Vertical Brochure_Samsung Interactive Whiteboard Solution_Education_Web

Vertical Brochure_Samsung Interactive Whiteboard Solution_Corporate_Web

DATASHEET

E-board_Datasheet_0611_MKedit-Final-Web

MANUALS

DME65_75_82-BR-EU_WebManual_Spa-01_150714

DME65_75_82-BR-EU_WebManual_Fre-01_150714

DME65_75_82-BR-EU_WebManual_Eng-01_150710

DRAWING

LH82DMER_Dimension_150313

QSG

DME65-BR_DME75-BR-QSG-NA_BN68-07270L-00_150623.0

65" 75" 82"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

75"

Screen Size

120Hz Slim Direct LED BLU

Display Technlogy

430 nit

Brightness

3 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size 75″	Type 120Hz D-LED BLU	Resolution 1920*1080 (Full HD)	Pixel Pitch(mm) 0.2865(H) × 0.8595(V)
Active Display Area(mm) 1650.24(H) × 928.26(V)	Brightness(Typ.) 380 nit	Contrast Ratio 5000:1	Viewing Angle(H/V) 178:178
Response Time(G-to-G) 4ms	Display Colors 10bit Dithering – 1.07Billion	Color Gamut 72%	Haze 2%
DISPLAY
Dynamic C/R 50,000:1	H-Scanning Frequency 30 ~ 81kHZ	V-Scanning Frequency 48 ~ 75HZ	Maximum Pixel Frequency 148.5MHz
SOUND
Speaker Type Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB Analog D-SUB, DVI-D, Display Port 1.2	Video Rear: HDMI1, HDMI2, Front Tray Box: HDMI3 Component(CVBS Common)	HDCP HDCP 1.4	Audio Stereo mini Jack USB Rear: USB 2.0 X 1, Touch in X 1, Front Tray Box: USB 2.0 X 2, Touch out (USB Upstream)
CONNECTIVITY OUTPUT
RGB N/A	Video N/A	Audio Stereo mini Jack	Power Out N/A
External Control RS232C(in/out) thru stereo jack, RJ45	External Sensor IR, Ambient Light	Tuner No
POWER
Type Internal	Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h] 308.0	Typical[W/h] TBD	BTU(Max) 1050.28	Sleep mode less than 0.5W Off mode less than 0.5W
MECHANICAL SPECS
Dimension (mm) Set 1756.1 X 1034.1 X 74.1(handle 109.1)	Dimension (mm) Package 1895 x 1122 x 301
Weight (kg) Set 59	Weight (kg) Package 69
VESA Mount (mm) 400*400mm	Mounting Hole N/A	Protection Glass N/A	Stand Type Foot Stand (Optional)
Media Player Option Type Embbeded, SBB(Attachable), PIM(Attachable)	Bezel Width (mm) 39.9
OPERATION
Recommended Usage Hours 24/7	Operating Temperature 0.0 ℃ ~ 40.0 ℃	Humidity 10.0 % ~ 80.0 %
FEATURE
Key Features Slim & Light LFD with Built-in MagicInfo Player S3, MagicIWB S2, SSSP 3.0	Special Features H/W: Super Clear Coating, Temperature Sensor, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Front Tray Box S/W: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, Built In MagicInfo Player S3, MagicIWB S2, Magic Presenter, USB Auto Switching, Firmware Update by Network, LFD New Home Screen, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
INTERNAL PLAYER
Processor Cortex-A9 1GHz Quad Core CPU	On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB	Clock Speed 1GHz CPU Quad	Main Memory Interface 1.5GB Dual 48bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES	Storage (FDM) 8GB (2.65GB Occupied by O/S, 5.35GB Available, )	Multimedia Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.	IO Ports USB 2.0 x 3, Touch in X 1, Touch out X 2 Operating System Samsung Proprietary OS(VDLinux)
CERTIFICATION
Safety CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE	EMC FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ACCESSORY
Included Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Pen 1, Pen Tray	Optional Stand STN-L7585F	Optional Mount WMN6575SD	Optional Specialty N/A
MEDIA PLAYER
Media Player SBB(Optional), PIM(Optional)

Download Specs PDF

The DM75E-BR Series

Ready-to-use, all-in-one E-board display with 10 points drawing and rapid reporting rate capability
Samsung’s DM75E-BR is a ready-to-use, all-in-one E-Board display solution. The large 75″ display includes a pre-assembled touch overlay. The embedded System-on-Chip (SoC) media player and E-Board software makes it portable, flexible and easy to set up. And with a full range of connectivity options, including Wi-Fi® for seamless connection to mobile devices, you can meet your organization’s specific presentation needs.

Features

LARGE E-BOARD FOR CORPORATE AND EDUCATIONAL ORGANIZATIONS

This all-in-one E-Board display solution provides portability and flexibility while minimizing set-up time in meeting rooms or classrooms. The large 75″ screen on the DM65E-BR maximizes readability to facilitate smooth and informative presentations.

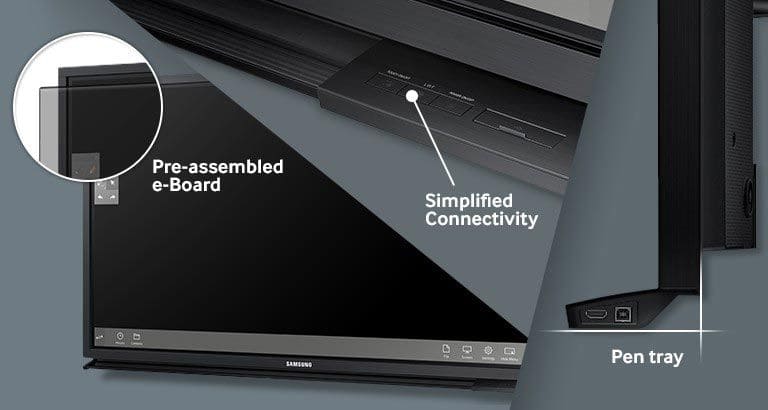

INCLUDED, PRE-ASSEMBLED TOUCH OVERLAY

The DM75E-BR comes with a pre-assembled touch overlay to transform your display into an interactive whiteboard with up to 10 simultaneous touchpoints and dual drawing capability. The factory assembly means it takes less time to install, so you can get right to creating more collaborative and dynamic presentations.

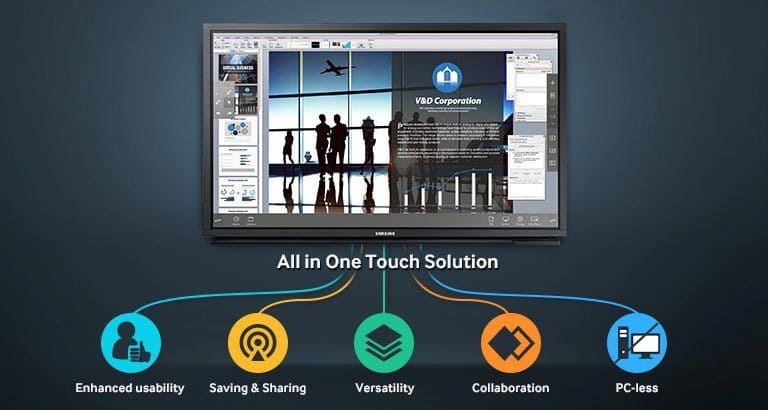

ALL-IN-ONE SOLUTION

Along with the display itself and included touch overlay, this E-Board solution features an embedded System-on-Chip (SoC) media player for a PC-less touch solution. Also included is an E-Board software application. With all of this right out of the box, you’ll enjoy portability, flexibility and a simple setup.

OPTIONAL SAMSUNG MAGICIWB I2 SOFTWARE

The optional MagicIWB I2 solution can transform a traditional presentation into a dynamic educational experience with on-screen note-taking functionality, video and image capture capability. So you can deliver rich content and interactivity in your meeting rooms or classrooms.

ENHANCED SYSTEM-ON-CHIP PERFORMANCE WITH A QUAD CORE CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung’s SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

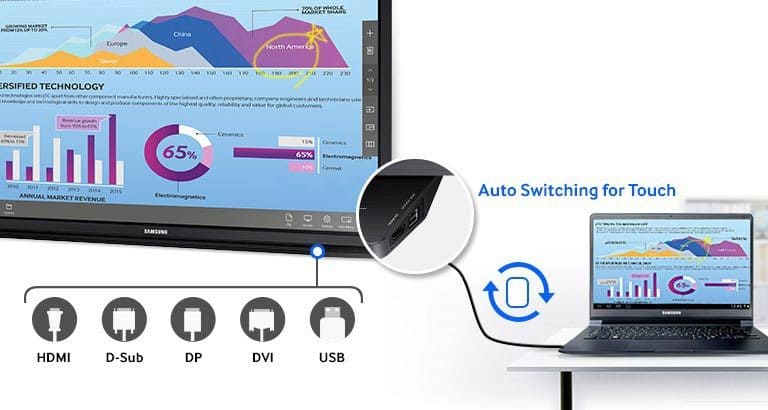

FULL RANGE OF CONNECTIVITY OPTIONS INCLUDING WI-FI®

Versatile connectivity options include USB 2.0, HDMI, RJ45, RS232C, Wi-Fi® and more. With Wi-Fi®, enjoy seamless connectivity to mobile devices, for easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
