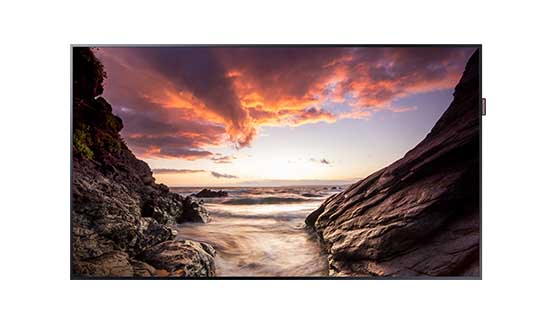

Name: Samsung PM49F 49" PMF Series, FHD Edge-Lit LED Digital Signage Display, 500 Nits, 24/7, 3 Year Warranty
Brand: Samsung
SKU: PM49F-SAMSUNG
Availability: OutOfStock

Samsung PM49F 49" PMF Series, FHD Edge-Lit LED Digital Signage Display, 500 Nits, 24/7, 3 Year Warranty

KEY FEATURES

24/7 operation

MagicInfo S4 powered by Tizen

EdgeLED

Anti-Glare

Quad Core CPU

Wi-fi module embedded

All-in-one display solution with embedded MagicInfo Player S4 powered by TIZEN™
IP5x certification and non-glare panel to withstand a range of environmental conditions
Sleek design with slim depth (29.9mm) and narrow bezels (6.9mm)

DATASHEET

Samsung SMART Signage_PHF_PMF Series Datasheet_North America Samsung SMART

Samsung SMART Signage_PHF_PMF Series Datasheet_WW

Bringing you premium TIZEN-powered displays that meet all business needs in a slim, captivating design

MANUAL

PMF_PHF_UserManual_Eng

PMF_32-55_EU_WebManual_Spa_ES-00_161111.0

DRAWING

PMF 32_SET DIMENSION_1220

QSG

PMF_PHF_QuickGuide_Eng_Fre_Spa

PMF_PHF_QuickGuide_Kor

32" 43" 49" 55"

This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

49"

Screen Size

60Hz E-LED BLU

Display Technlogy

500 nit

Brightness

3 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size 49″	Type 60Hz E-LED BLU	Resolution 1920*1080 (Full HD)	Pixel Pitch(mm) 0.560(H) x 0.560(V)
Active Display Area(mm) 1073.779(H) x 604.00(V)	Brightness(Typ.) 500 nit	Contrast Ratio 4000:1	Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms	Display Colors 10bit Dithering – 1.07Billion	Color Gamut 72%	Haze 25%
DISPLAY
Dynamic C/R Mega	H-Scanning Frequency 30 ~ 81kHZ	V-Scanning Frequency 48 ~ 75HZ	Maximum Pixel Frequency 148.5MHz
SOUND
Speaker Type Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB DVI-I(D-Sub Common), Display Port 1.2 (2)	Video HDMI (2)	HDCP HDCP 2.2	Audio Stereo mini Jack USB USB 2.0 x 2
CONNECTIVITY OUTPUT
RGB DP1.2(Loop-out)	Video N/A	Audio Stereo mini Jack	Power Out N/A
External Control RS232C(in/out) thru Stereo Jack, RJ45	External Sensor N/A	Tuner Yes(only for NA)
POWER
Type Internal	Power Supply AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h] 165.0	Typical[W/h] EU 98, US 47, WW 98	BTU(Max) 562.65	Sleep mode less than 0.5W Off mode less than 0.5W
MECHANICAL SPECS
Dimension (mm) Set 1092.6 x 624.8 x 29.9	Dimension (mm) Package 1195 X 721 X 167
Weight (kg) Set 13.2	Weight (kg) Package 18.1
VESA Mount (mm) 400×400	Mounting Hole N/A	Protection Glass N/A	Stand Type Foot Stand (Optional)
Media Player Option Type N/A	Bezel Width (mm) 6.9/6.9/8.9
OPERATION
Recommended Usage Hours 16/7	Operating Temperature 0.0 ℃ ~ 40.0 ℃	Humidity 10.0 % ~ 80.0 %
FEATURE
Key Features Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0	Special Features H/W : Non Glare Panel, Temperature Sensor, Video Wall(15×15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR	Special Features S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player
INTERNAL PLAYER
Processor Cortex-A12 1.3GHz Quad Core CPU	On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB	Clock Speed 1.3GHz CPU Quad	Main Memory Interface 2.5GB 3 channel 96bit DDR3-933 (1866MHz)
Graphics 2D & 3D Graphics Engine – Up to 3840x2160p. 32bpp – Supports OpenGL ES	Storage (FDM) 8GB (3.75GB Occupied by O/S, 4.25GB Available, )	Multimedia Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.	IO Ports USB 2.0 Operating System Tizen 2.4 (VDLinux)
CERTIFICATION
Safety CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE	EMC FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ACCESSORY
Included Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack	Optional Stand STN-L3240E	Optional Mount WMN4070SD	Optional Specialty CML400XJ
MEDIA PLAYER
Media Player SBB

Download Specs PDF

The PM49F Series

The Samsung PM49F is a premium TIZEN-powered display built to handle any business need in a slim, captivating design. These commercial signage TVs are built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. Get the connectivity you need and deliver high picture quality to make your message stand out. Inquire about the PM49F Samsung 49″ commercial display today!

IP5x certification and non-glare panel to withstand a range of environmental conditions
Sleek design with slim depth (29.9mm) and narrow bezels (6.9mm)
All-in-one display solution with embedded MagicInfo Player S4 powered by TIZEN™

Features

THE ALL-NEW EMBEDDED MEDIA PLAYER POWERED BY TIZEN™

The new 2016 SMART Signage that supports SSSP 4.0 allows the Samsung PM49F commercial signage TV to have a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers.

◆ Powerful Performance
1) Enhanced 3D Graphic Engine Experience dynamic content by enhancing 3D graphic performance while text scrolling appears smooth and the display offers a level of robustness that can even support 3 movies playing concurrently on one screen.
2) PC-less Touch Solution Touch performance is fully realized due to the powerful TIZEN OS that bypasses the need for a PC.
3) Enhanced Security Applications, platform and system are all supported by TIZEN OS and a holistic security architecture allows for high stability and security through 3 layers of supplementation.

◆ Easy Development
The ability to develop the solution further is facilitated, thanks to various development tools such as SW Development Kit (SDK) or Remote Web Inspector (RW). In addition, as it is a web standard-based open platform, it is highly compatible with HTML5.

◆ Simple Usability
Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app. The SSSP 4.0 user screen has also been improved (new home UI) and quick access for web apps is supported through URL Launcher.

OFFERING ROBUST OPTIONS FOR CONTENT CREATION, SCHEDULING AND DEPLOYMENT TOOLS

A key aspect of the Samsung PM49F commercial signage TV enhanced TIZEN-based SSSP 4.0 platform, Samsung’s MagicInfo Player S4 enables users to fully leverage the power of their display network from any location through a centralized server. More useable than ever, MagicInfo Player S4 merges a dedicated Backup Player with DataLink content streaming capabilities to reduce the effort needed to share vital information.

◆ Powerful Performance
With MagicInfo Player S4, the new graphic engine applied to 2016 SMART Signage heightens the overall display performance while ensuring seamless transition of content and smoother ticker text scrolling.
Meanwhile, high resolution images (max. 5120 X 5120) are supported and more than 100 text boxes are available. When its Touch Overlay option is utilized, the user can fully navigate the web browser through the tap of a finger on the display thus mitigating the need for additional PCs.

◆ Simple Usability
More than just a media player, it also functions as an advanced content management solution which can allow you to play media files, set and edit media playback schedules, plus configure the display as a video wall and control device through the use of its WiFi connection, on/off timer and more. The newly designed graphical user interface enables enhanced ease-of-use and local content management capability.

◆ Total Solution
Samsung MagicInfo server has also been newly designed and upgraded to version 4.0. MagicInfo server software is a specialized content management software which enables large organizations to manage multiple digital signage through an integrated single server. The organizations can also remotely monitor and manage smart signage from a centralized location.

DISCOVER DISPLAYS THAT BREAK THE PREVIOUS LIMITS OF SLIM DESIGN

Boasting of the slimmest depth design in the industry (29.9mm), Samsung PM49F’s standalone signage displays provide a compact, but strong signage solution for environments limited by space or configuration. Available in a range of sizes (43-, 49- and 55-inch models available for both PHF and PMF signage, with an additional 32-inch model available for the PMF Series), this Samsung digital signage display features a narrow-bezel configuration to further maintain viewers’ focus aimed at on-screen content.

* The specification by model such as size, brightness, and operational time is different. See the specification table for more details.

UNLOCK EASIER AND MORE FLEXIBLE CONTROL DUE TO A CENTRALIZED INFRARED RECEIVER

The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control for the Samsung PM49F commercial signage TV. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.

BRING AN END TO UNWANTED GLARE AND ALWAYS BE ASSURED OF HIGH VISIBILITY AND READABILITY

Equipped with a non-glare frontal panel, the Samsung PM49F commercial signage TVs reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.

* The specification by model such as size, brightness, and operational time is different. See the specification table for more details.

PUT YOUR WORRIES TO REST KNOWING THAT YOUR DISPLAY IS PROTECTED FROM A RANGE OF ENVIRONMENTAL CONDITIONS

The Samsung PM49F commercial signage TV is IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions. The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.
