DM65E-BR-SAMSUNG

KEY FEATURES
  • Interactive whiteboard style design with a pre-assembled touch overlay from factory
  • Infrared touch screens that allows for dual drawing capabilities, enabling up to 10 touch points
  • All-in-one, PC-less E-board display solution with an embedded MagicIWB S2 software
  • Compatibility with an optional MagicIWB I2 software for advanced E-board functionality

VIDEOS





DOWNLOADS

BROCHURE

2016 Samsung e-Board Leaflet_Digital ver.

DME-BM-150710-MKedit-Web

Vertical Brochure_Samsung Interactive Whiteboard Solution_Education_Web

Vertical Brochure_Samsung Interactive Whiteboard Solution_Corporate_Web

E-board_Datasheet_0611_MKedit-Final-Web

MANUALS

DME65_75_82-BR-EU_WebManual_Spa-01_150714

DME65_75_82-BR-EU_WebManual_Fre-01_150714

DME65_75_82-BR-EU_WebManual_Eng-01_150710

DRAWING

LH82DMER_Dimension_150313

QSG

DME65-BR_DME75-BR-QSG-NA_BN68-07270L-00_150623.0


This product has been discontinued by the manufacturer, but we may have leftover stock in our warehouse. Request a stock check, below.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Model Specifications (Discontinued)

1080p FHD

Resolution

65"

Screen Size

120Hz Slim Direct LED BLU

Display Technlogy

430 nit

Brightness

3 Year

Warranty

24/7

Run Time

PANEL
Diagonal Size
82″
Type
120Hz D-LED BLU
Resolution
1920*1080 (Full HD)
Pixel Pitch(mm)
0.3135(H) x 0.9405 (V)
Active Display Area(mm)
1805.76(H) x 1015.74(V)
Brightness(Typ.)
430 nit
Contrast Ratio
5000:1
Viewing Angle(H/V)
178:178
Response Time(G-to-G)
8ms
Display Colors
10bit Dithering – 1.07Billion
Color Gamut
68%
Haze
2%
DISPLAY
Dynamic C/R
50,000:1
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
148.5MHz
SOUND
Speaker Type
Built in Speaker(10W + 10W)
CONNECTIVITY INPUT
RGB
Analog D-SUB, DVI-D, Display Port 1.2
Video
Rear: HDMI1, HDMI2, Front Tray Box: HDMI3 Component(CVBS Common)
HDCP
HDCP 1.4
Audio
Stereo mini Jack

USB
Rear: USB 2.0 X 1, Touch in X 1, Front Connectivity Box: USB 2.0 X 2, Touch out (USB Upstream)

CONNECTIVITY OUTPUT
RGB
N/A
Video
N/A
Audio
Stereo mini Jack
Power Out
N/A
External Control
RS232C(in/out) thru stereo jack, RJ45
External Sensor
IR, Ambient Light
Tuner
No
POWER
Type
Internal
Power Supply
AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
POWER CONSUMPTION
Max[W/h]
495.0
Typical[W/h]
329.0
BTU(Max)
1687.95
Sleep mode
less than 0.5W

Off mode
less than 0.5W

MECHANICAL SPECS
Dimension (mm)
Set
1911.8 X 1121.7 X 140 (178 Handle)
Dimension (mm)
Package
2069 X 1280 X 513
Weight (kg)
Set
78.2
Weight (kg)
Package
94.6
VESA Mount (mm)
600*400mm
Mounting Hole
N/A
Protection Glass
N/A
Stand Type
Foot Stand (Optional)
Media Player Option Type
Embbeded, SBB(Attachable), PIM(Attachable)
Bezel Width (mm)
39.9
OPERATION
Recommended Usage Hours
24/7
Operating Temperature
0.0 ℃ ~ 40.0 ℃
Humidity
10.0 % ~ 80.0 %
FEATURE
Key Features
Slim & Light LFD with Built-in MagicInfo Player S3, MagicIWB S2, SSSP 3.0
Special Features
Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, Built In MagicInfo Player S3, MagicIWB S2, Magic Presenter, USB Auto Switching, Firmware Update by Network, LFD New Home Screen, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
INTERNAL PLAYER
Processor
Cortex-A9 1GHz Quad Core CPU
On-Chip Cache Memory
L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
Clock Speed
1GHz CPU Quad
Main Memory Interface
1.5GB Dual 48bit DDR3-933 (1866MHz)
Graphics
2D & 3D Graphics Engine – Up to 1920×1080. 32bpp – Supports OpenGL ES
Storage (FDM)
8GB (2.65GB Occupied by O/S, 5.35GB Available, )
Multimedia
Video Decoder – MPEG-1/2, H.264/AVC (Dual) – VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
IO Ports
USB 2.0 x 3, Touch in X 1, Touch out X 2

Operating System
Samsung Proprietary OS(VDLinux)

CERTIFICATION
Safety
CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 CSA (Canada) : cUL UL(USA) : cUL60950-1 TUV (Germany) : CE NEMKO (Norway) : CE
EMC
FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
ACCESSORY
Included
Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter
Optional
Stand
STN-L7585F
Optional
Mount
WMN8200SD
Optional
Specialty
N/A
MEDIA PLAYER
Media Player
SBB(Optional), PIM(Optional)

The DM82E-BR Series

Ready-to-use, all-in-one E-board display with 10 points drawing and rapid reporting rate capability
Samsung’s DM82E-BR is a ready-to-use, all-in-one E-Board display solution. The large 82″ display includes a pre-assembled touch overlay. The embedded System-on-Chip (SoC) media player and E-Board software makes it portable, flexible and easy to set up. And with a full range of connectivity options, including Wi-Fi® for seamless connection to mobile devices, you can meet your organization’s specific presentation needs. Request a quote for this Samsung E-Board Display.

Features

LARGE E-BOARD FOR CORPORATE AND EDUCATIONAL ORGANIZATIONS

This all-in-one E-Board display solution provides portability and flexibility while minimizing set-up time in meeting rooms or classrooms. The large 82″ screen on the DM82E-BR maximizes readability to facilitate smooth and informative presentations.

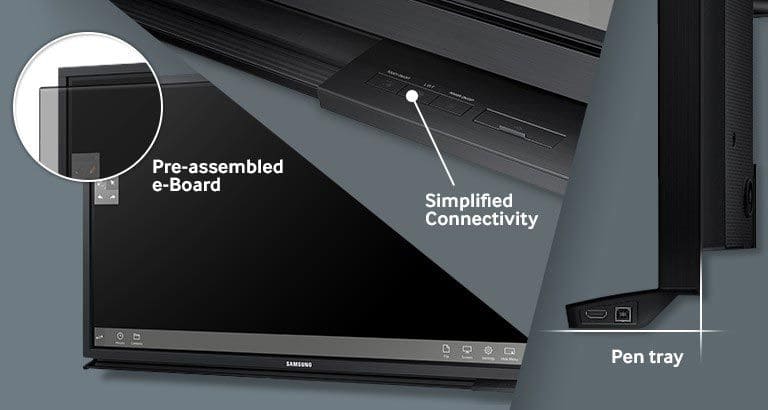

INCLUDED, PRE-ASSEMBLED TOUCH OVERLAY

The DM82E-BR comes with a pre-assembled touch overlay to transform your display into an interactive whiteboard with up to 10 simultaneous touchpoints and dual drawing capability. The factory assembly means it takes less time to install, so you can get right to creating more collaborative and dynamic presentations.

ALL-IN-ONE SOLUTION

Along with the display itself and included touch overlay, this E-Board solution features an embedded System-on-Chip (SoC) media player for a PC-less touch solution. Also included is an E-Board software application. With all of this right out of the box, you’ll enjoy portability, flexibility and a simple setup.

OPTIONAL SAMSUNG MAGICIWB I2 SOFTWARE

The optional MagicIWB I2 solution can transform a traditional presentation into a dynamic educational experience with on-screen note-taking functionality, video and image capture capability. So you can deliver rich content and interactivity in your meeting rooms or classrooms.

ENHANCED SYSTEM-ON-CHIP PERFORMANCE WITH A QUAD CORE CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung’s SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

FULL RANGE OF CONNECTIVITY OPTIONS INCLUDING WI-FI®

Versatile connectivity options include USB 2.0, HDMI, RJ45, RS232C, Wi-Fi® and more. With Wi-Fi®, enjoy seamless connectivity to mobile devices, for easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
