Model Specifications (Discontinued)
4K UHD
Resolution
65"
Screen Size
60Hz NewEdge
Display Technlogy
350 nit
Brightness
3 Year
Warranty
16/7
Run Time
PANEL | QB65N |
Diagonal Size | 65″ |
Type | New Edge |
Resolution | UHD (3840 x 2160) |
Pixel Pitch(mm) | 0.372 X 0.372 |
Brightness(Typ.) | 350 |
Contrast Ratio | 6000 :1 |
Viewing Angle(H/V) | 178 /178 |
Response Time(G-to-G) | 8ms |
Display Colors | 6.7M |
Color Gamut | 72% |
Operation Hour | 16/7 |
DISPLAY | |
Dynamic C/R | MEGA |
H-Scanning Frequency | 30 ~ 81kHZ |
V-Scanning Frequency | 48 ~ 75HZ |
Maximum Pixel Frequency | 594MHz |

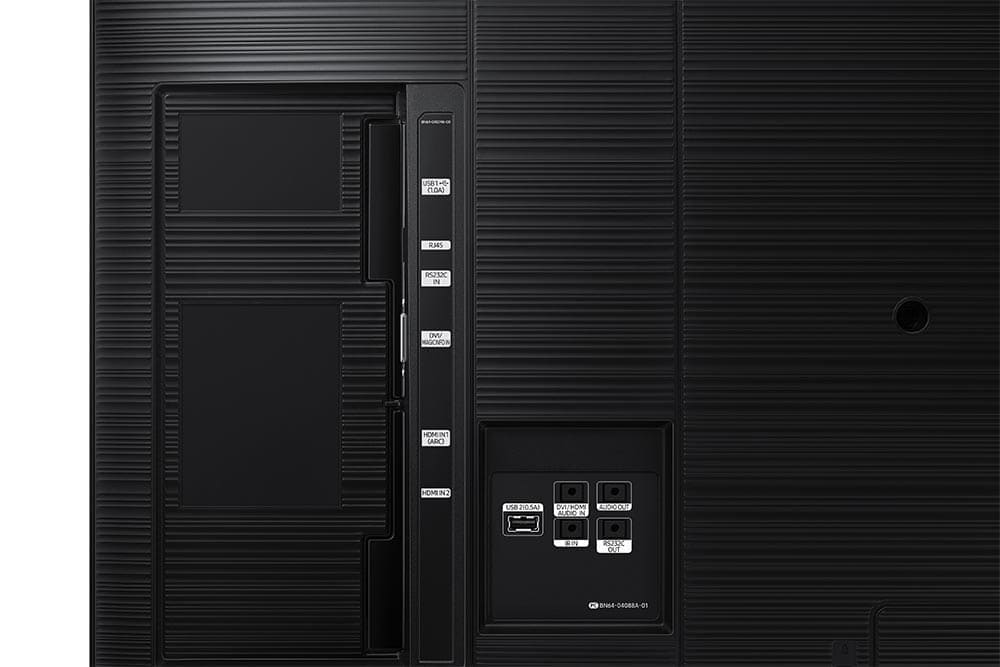

CONNECTIVITY | |
Input RGB | DVI-D |
Input Video | HDMI 2.0 (2) |
Input HDCP | |
Input USB | USB 2.0 (2) |
Output RGB | N/A |
Output Video | N/A |
Output Audio | Stereo Mini Jack |
External Control | RS232C (in/out) thru stereo jack, RJ45 |
External Sensor | IR |
POWER CONSUMPTION | |
Max[W/h] | 176 |
Typical[W/h] | 125 |
Rating [W/h] | 160 |
Sleep mode | 0.5 |
Off mode | N/A |
MECHANICAL SPECIFICATION | |
Dimension (mm) Set | 1457.5 X 837.3 X 59.4 |
Dimension Package | 1430.5 X 805.5 x1640.6 |
Weight (kg) Set | 25.2 |
Weight Package | 33.1 |
VESA Mount (mm) | 400 x 400 mm |
Bezel Width (mm) | 13.5 (Top,Side), 77.7 (Bottom) |
OPERATION | 0°C ~ 40°C |
Humidity | 10~80% |
FEATURE | |
Key Features | UHD Signage Display Slim & Light Signage with Built-in Magiclnfo 56, SSSP 6.0 |
Special Features | Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi |
INTERNAL PLAYER | |
Processor | Coretex A721.7GHz Quad-Core CPU |
On-Chip Cache Memory | Ll Instruction Cache: 48KB / Ll Data Cache: 32KB / L2 Cache: 2MB |
Clock Speed | 1.7GHz |
Main Memory Interface | |
Graphics | Graphic resolution: 1920×1080, Output resolution: 3840×2160 (Scale up from graphic processing result.) |
Storage (FDM) | 8GB (3.88GB Occupied by 0/5, 4.12GB Available) |
Multimedia | VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG |
IO Ports | USB 2.0 |
CERTIFICATION | |
Safety | 60950-7 |
EMC | Class A |
Environment | ENERGY ST AR 7.0 (US A) |
ACCESSORY | |
Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
Mount | WMN4070SE |
Specialty | CML400XK |
The QB65N Series
